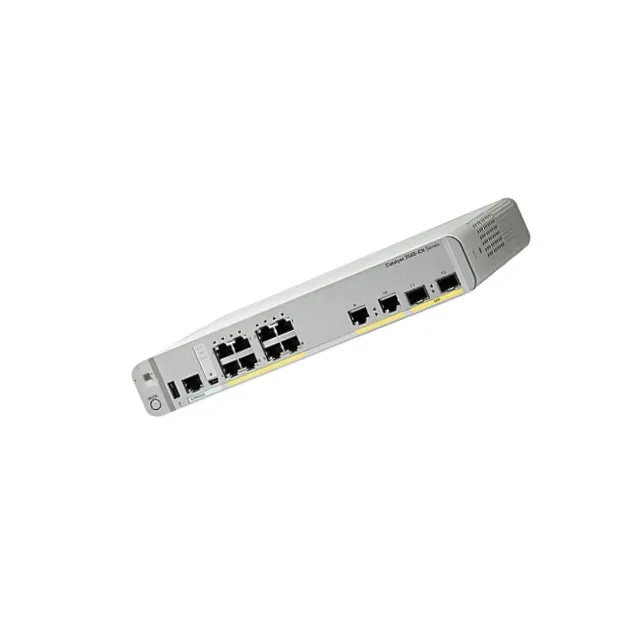

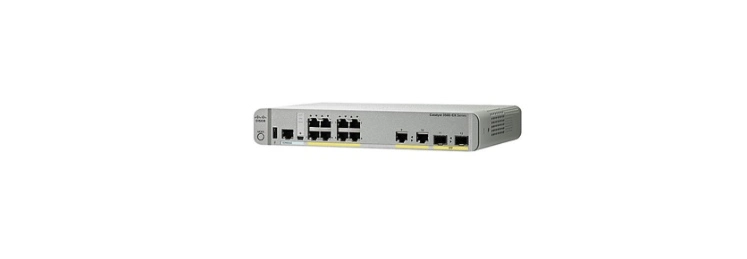

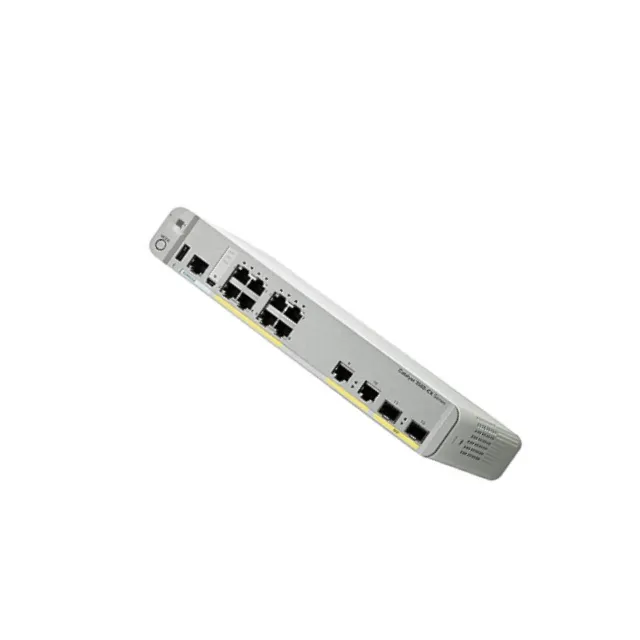

              Cisco Catalyst 3560-CX Series compact switches WS -C3560CX-8TC-S 8 Port Data IP Base Network Switch
              • Cisco Catalyst 3560-CX Series compact switches WS -C3560CX-8TC-S 8 Port Data IP Base Network SwitchCisco Catalyst 3560-CX Series compact switches WS -C3560CX-8TC-S 8 Port Data IP Base Network Switch
              • Cisco Catalyst 3560-CX Series compact switches WS -C3560CX-8TC-S 8 Port Data IP Base Network SwitchCisco Catalyst 3560-CX Series compact switches WS -C3560CX-8TC-S 8 Port Data IP Base Network Switch
              • Cisco Catalyst 3560-CX Series compact switches WS -C3560CX-8TC-S 8 Port Data IP Base Network SwitchCisco Catalyst 3560-CX Series compact switches WS -C3560CX-8TC-S 8 Port Data IP Base Network Switch
              • Cisco Catalyst 3560-CX Series compact switches WS -C3560CX-8TC-S 8 Port Data IP Base Network SwitchCisco Catalyst 3560-CX Series compact switches WS -C3560CX-8TC-S 8 Port Data IP Base Network Switch

              Cisco Catalyst 3560-CX Series compact switches WS -C3560CX-8TC-S 8 Port Data IP Base Network Switch

              WS-C3560CX-8TC-SThe Cisco Catalyst 3560-CX series compact switches help optimize network deployments. These Gigabit Ethernet (GbE)managed switches are ideal for high-speed data connectivity, Wi-Fi back haul, and Power over Ethernet (PoE) connectivityin places where space is at a premium. Catalyst co......

              Send Inquiry

              Product Description

              WS-C3560CX-8TC-S

              The Cisco Catalyst 3560-CX series compact switches help optimize network deployments. These Gigabit Ethernet (GbE)
              managed switches are ideal for high-speed data connectivity, Wi-Fi back haul, and Power over Ethernet (PoE) connectivity
              in places where space is at a premium. Catalyst compact switches enable IP connectivity for devices such as IP phones,
              wireless access points, surveillance cameras, PCs, and video endpoints. With their quiet, fan-less design and compact
              footprint, these switches offer flexible mounting options and open up a variety of network design and connectivity options.
              Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations.

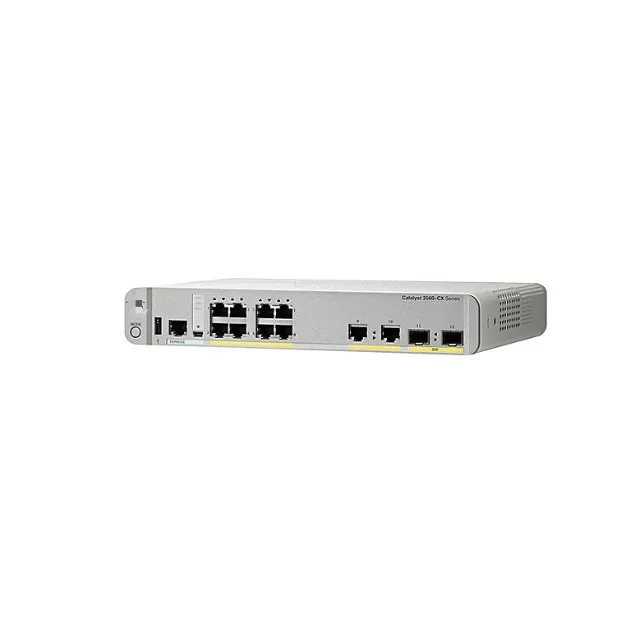

              Cisco Catalyst 3560-CX Series compact switches WS-C3560CX-8TC-S 8 Port Data IP Base Network Switch

              Model

              WS-C3560CX-8TC-S

              Dimensions & Weight
              General
              Switch - 8 ports - managed - stackable
              Width10.6in
              Depth9.4in
              Height1.7in
              Weight5lbs
              Environmental Parameters
              Min Operating Temperature23 °F
              Max Operating Temperature113.F
              Humidity Range Operating5-95%
              Min Storage Temperature-13 °F
              Max Storage Temperature158 °F
              Humidity Range Storage5 - 95% (non-condensing)
              Flash Memory
              Installed Size128 MB
              Header
              Compatibilitypc
              Manufacturercisco
              Packaged Quantity1
              Product LineCisco Catalyst
              Model3560CX-8PC-S
              Interface Provided
              Qty8
              CommentsPoE+
              Type1000Base-T
              Connector TypeSFP
              Miscellaneous
              Compliant StandardsAS/NZ 3548 Class A, CB, CSA C22.2 No. 60950-00, cUL, EN 60950, EN55022, EN55024, FCC Class A certified, FCC Part 15, IEC 60950, MIC, NOM, TUV GS, UL, UL 60950 Third Edition, VCCI Class A ITE
              Authentication MethodKerberos, RADIUS, Secure Shell v.2 (SSH2), TACACS+
              Remote Management ProtoCLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
              MTBF569,530 hours
              Height (Rack Units)1
              Performance
              Type

              Forwarding performance (64-byte packet size)

              Value

              17.9Mpps
              Ports
              Qty8
              Type10/100/1000 (PoE+)
              Ports (2nd)
              Qty2
              TypeCombo Gigabit SFP
              Power Device
              Frequency Required50/60 Hz
              Power Consumption Opera25.4 Watt
              Nominal VoltageAC 120/230 V
              TypeInternal power supply
              RAM
              Installed Size512 MB
              Service &Support
              TypeLimited lifetime warranty
              Software
              Type Switch
              Remote Management ProtoHTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet
              Compliant StandardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
              FeaturesAccess Control List (ACL) support, Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), DHCP server, DHCP snooping, DHCP support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Full duplex capability, IGMP snooping, IP-routing, Layer 2 switching, Layer 3 switching, Manageable, MLD snooping, MPLS support, Port Aggregation Protocol (PAgP) support, Power over Ethernet (PoE), Quality of Service (QoS), Time Domain Reflectometry (TDR), Traffic shaping, Trivial File Transfer Protocol (TFTP) support, Trunking, Virtual Route Forwarding-Lite (VRF-Lite), VLAN support
              SubcategoryNetwork hubs and switches
              Power Over Ethernet (PoE) Not PoE+
              Advanced SwitchingLayer 3
              Routing ProtocolRIP-1, RIP-2, Static IP routing
              PoE Budget240 W
