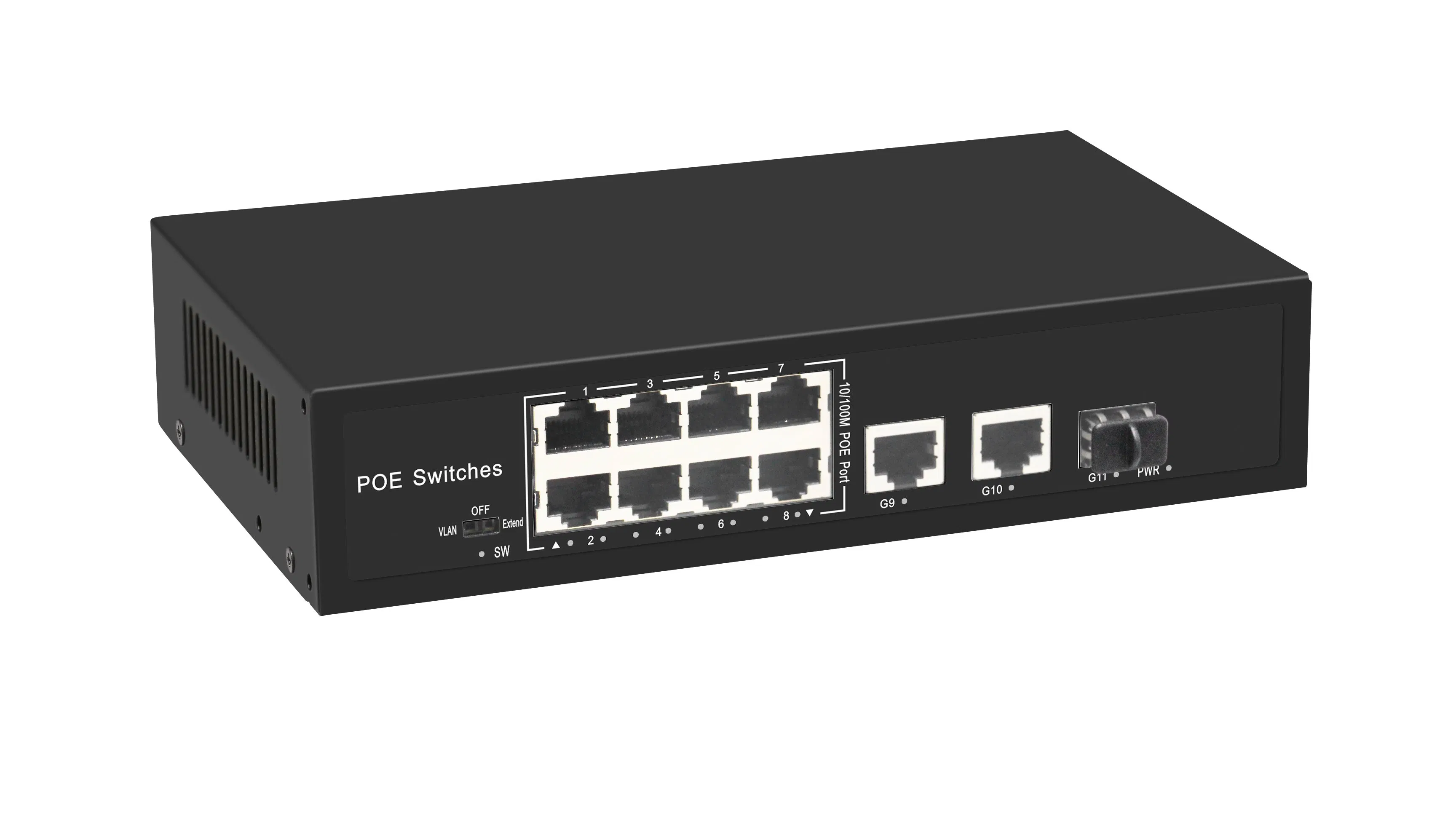

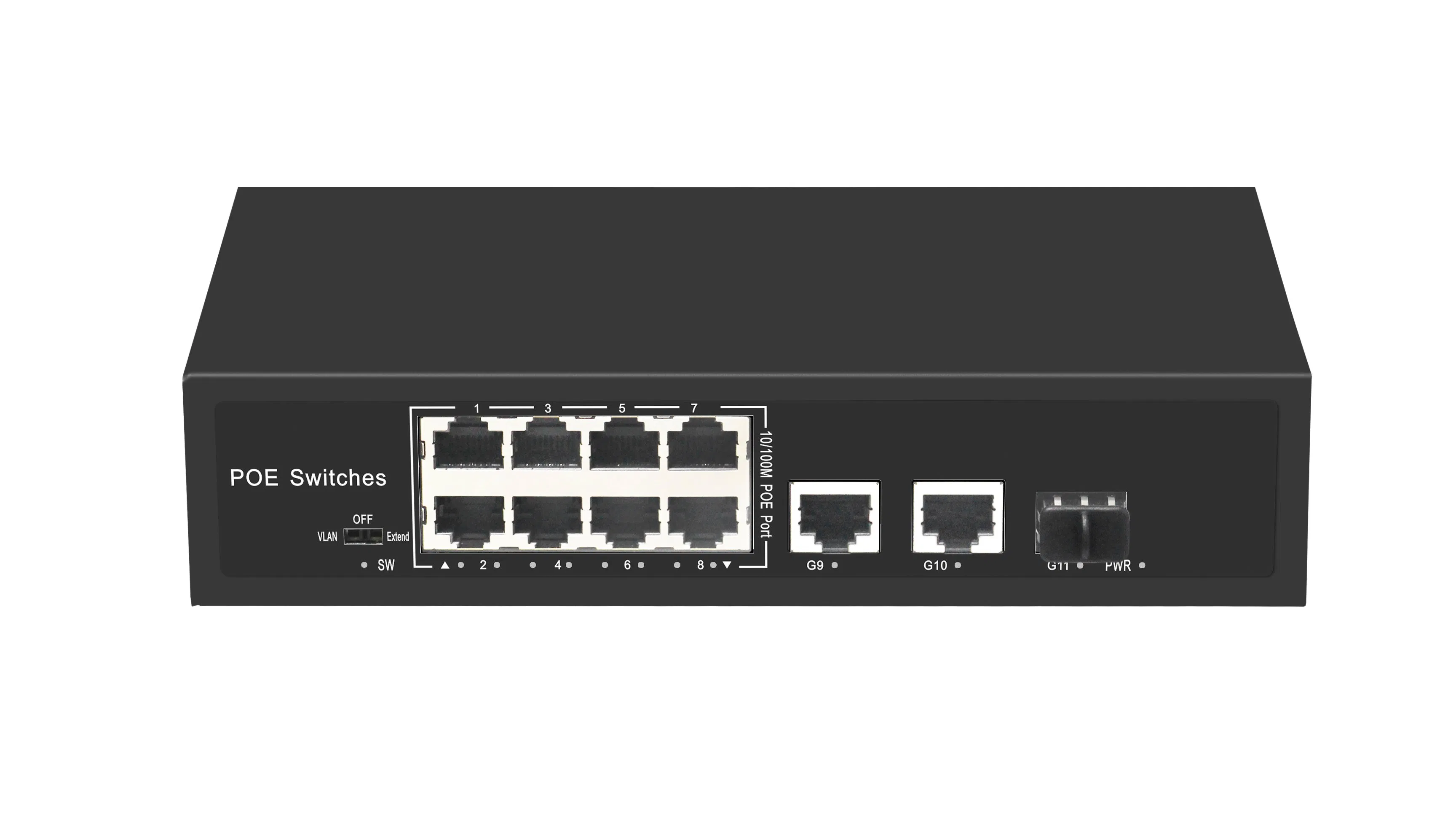

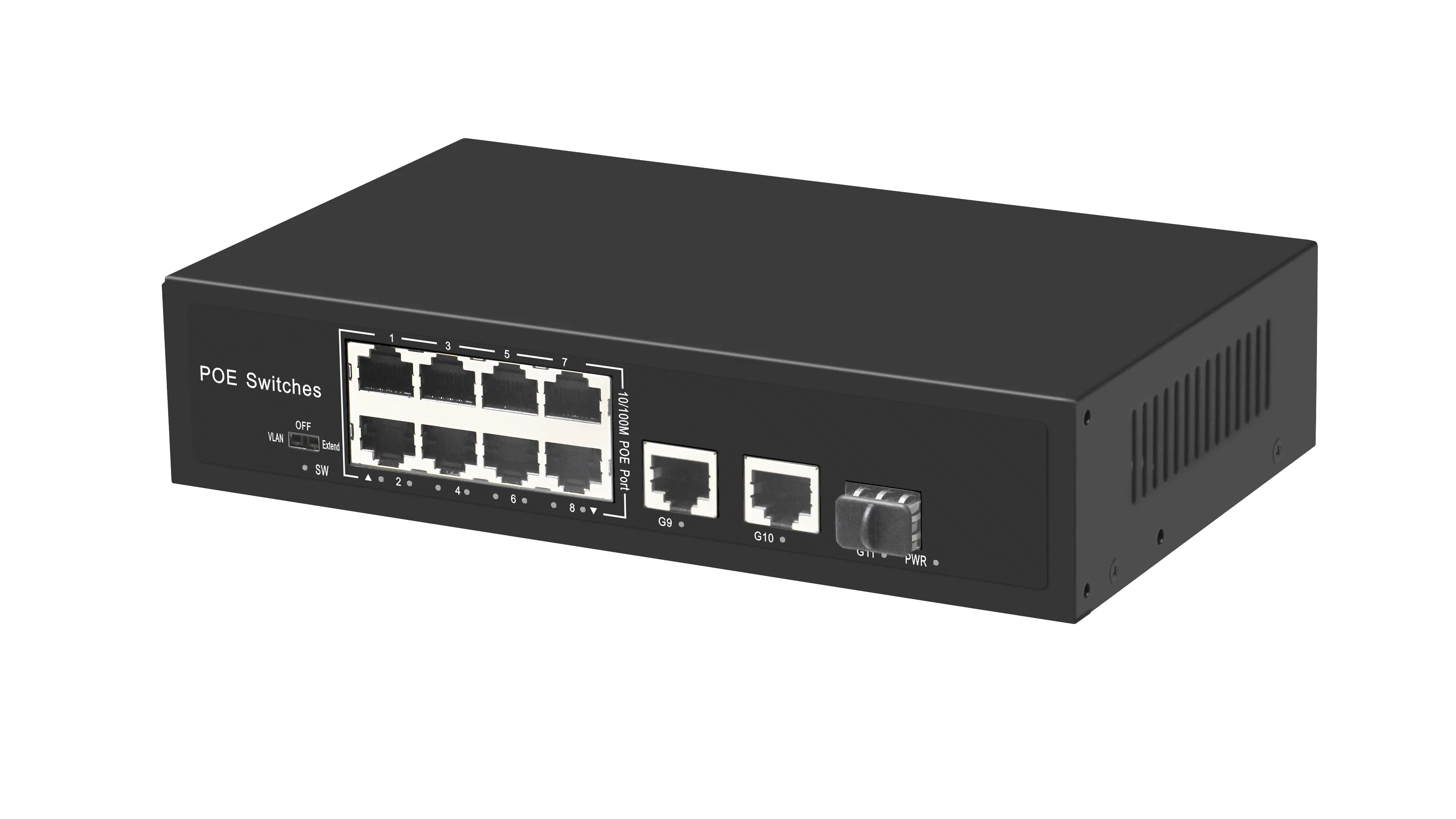

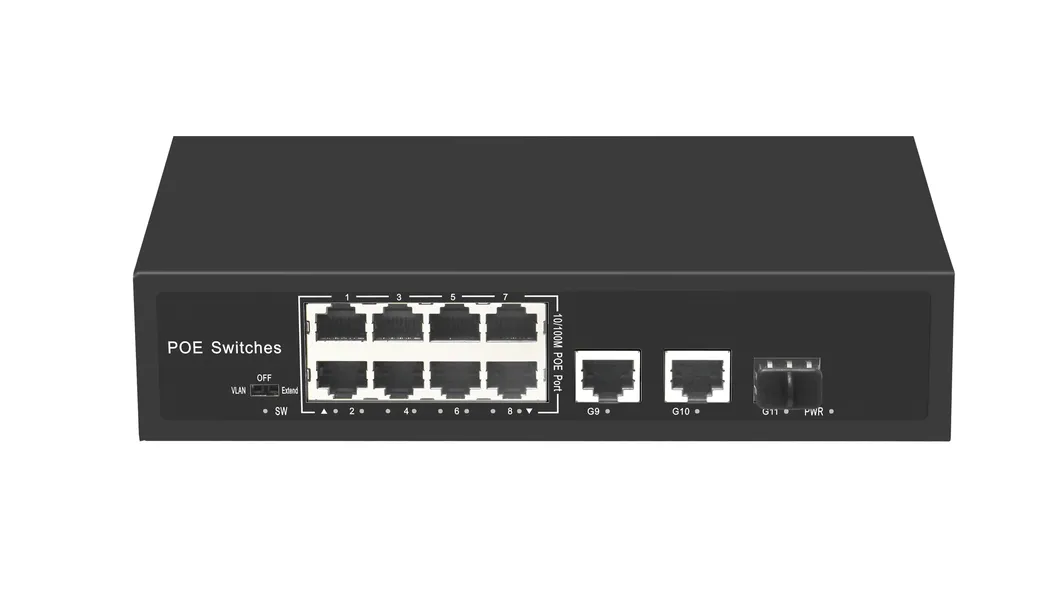

8 Ports 100m Poe Switch with 2 Ports 1000m Uplink and 1 Giga SFP Fibre Port
Products FeatureSupports 8x10/100M POE port and 2x10/100/1000M RJ45 ports+ 1x10/100/1000M SFP portSupport IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af / at, store and forwardCompatible withIEEE802.3af (15.4w)Ethernet port supports 10/100M adaptive and POE functionsWith DIP switch support 10M trans......
Send Inquiry
Product Description
Products Feature
Supports 8x10/100M POE port and 2x10/100/1000M RJ45 ports+ 1x10/100/1000M SFP port
Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af / at, store and forward
Compatible withIEEE802.3af (15.4w)
Ethernet port supports 10/100M adaptive and POE functions
With DIP switch support 10M transmission rate via cat.6 transmission distance of up to 250 meters
LED indicators for monitoring power, link, activity and speed
Description
11 ports POE Switch TS10P-8F-2G1S Adapted high-quality high-speed network IC and the most stable POE chip, POE port to meet the 802.3af or 802.3at standard, this series of POE switches can be 10/100M Ethernet Network provides seamless connection, and POE power supply port can automatically detect IEEE802.3af or IEEE802.3at compliant power supply equipment and its power supply,Only transmit data for non-POE equipment .
POE technology (Power over Ethernet) , it refers to some IP-based terminals (such as IP telephones, wireless access AP, network cameras, etc.) while transmitting data signals, but also for the device to provide DC power supply Technology, which receive DC power supply equipment called power receiving equipment.
This series of POE switches, using 8 POE ports + 2 uplink gigabit RJ45+1 uplink SFP port,the uplink port is to connect with the network equipment which provide data.
Physical Application Reference
Supports 8x10/100M POE port and 2x10/100/1000M RJ45 ports+ 1x10/100/1000M SFP port
Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af / at, store and forward
Compatible withIEEE802.3af (15.4w)
Ethernet port supports 10/100M adaptive and POE functions
With DIP switch support 10M transmission rate via cat.6 transmission distance of up to 250 meters
LED indicators for monitoring power, link, activity and speed
Description
11 ports POE Switch TS10P-8F-2G1S Adapted high-quality high-speed network IC and the most stable POE chip, POE port to meet the 802.3af or 802.3at standard, this series of POE switches can be 10/100M Ethernet Network provides seamless connection, and POE power supply port can automatically detect IEEE802.3af or IEEE802.3at compliant power supply equipment and its power supply,Only transmit data for non-POE equipment .
POE technology (Power over Ethernet) , it refers to some IP-based terminals (such as IP telephones, wireless access AP, network cameras, etc.) while transmitting data signals, but also for the device to provide DC power supply Technology, which receive DC power supply equipment called power receiving equipment.
This series of POE switches, using 8 POE ports + 2 uplink gigabit RJ45+1 uplink SFP port,the uplink port is to connect with the network equipment which provide data.
Physical Application Reference
| Technical parameter list | |
| Product Name | 11-Port AF PoE Switch with 8 PoE Ports and 3 Gigabit Uplink ports |
| Model | TS10P-8F-2G1S; |
| Connector Type | 8-ports 10/100M POE port, with 2-ports Gigabit Uplink Ethernet port+1-port Gigabit Uplink SFP port |
| Bandwidth | 7.6Gbps (non-blocking) |
| PoE Standard | IEEE 802.3af( each port 15.4W) |
| POE Compatibility | AF |
| POE power output | DC48V |
| Power Supply | Power input: AC100-240V 50/60Hz; (every country use a custom power plug) |
| PoE power pin | 12+,36- ( 45+,78- Optional) |
| PoE Port Power | 15.4W for each POE port |
| PoE Feature | All ports support MDI/MDIX |
| Network Protocols | Support IEEE802.3, IEEE802.3u, IEEE802.3x |
| Optic port | Multi mode fiber:1310nm, 2Km Single mode fiber: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km |
| MAC address | 2K |
| Network Media | 10BASE-T: Cat6 UTP(≤250 meter) ;100BASE-TX: Cat5 or more UTP (≤100 meter); 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
| LED Indicator | 10M: it is on 10Mbps transmission rate while it's blink PWR:power is connect while it's on green Yellow light; POE Running Green light: Ethernet Running |
| Working Environment | Operating Temperature: 0 ° ~ 50° C; Storage Temperature: -40 ° ~ 70 ° C; Operating Humidity: max 90%, non-condensing |
| Certification | CE,CCC,FCC,RoHs |
| Transmission Distance | POE transmission distance:100meters,250meters(when it's on 10Mbps rate with Cat6 or more) Uplink transmission distance: 100meters( Uplink RJ45 port); Depend on your SFP module( Uplink SFP port) |
| Warranty | 2 year warranty( 1 year warranty for power adapter) |
