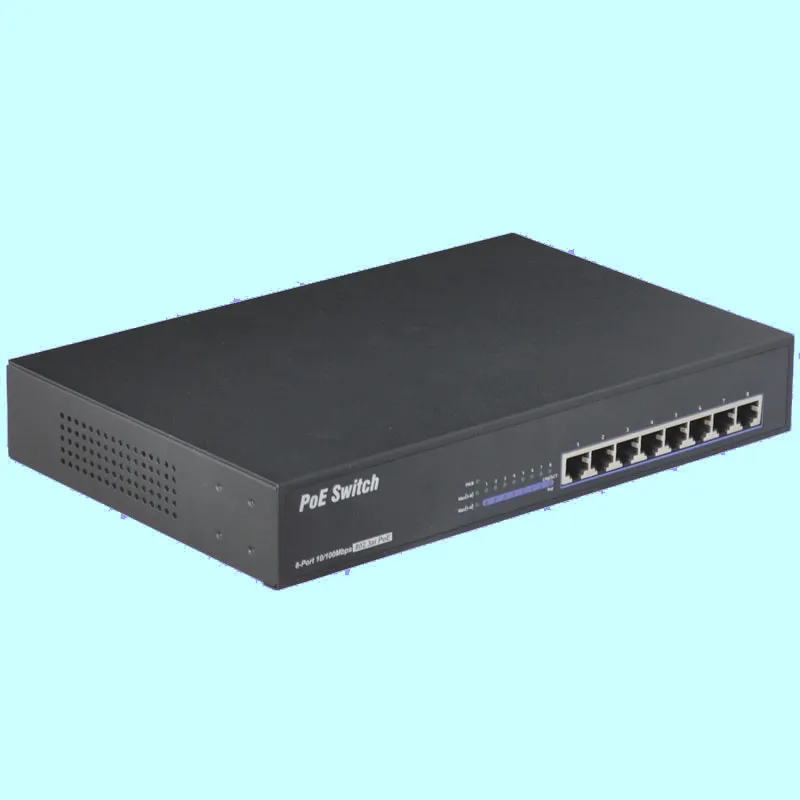

8 Port 10/100m Poe Switch Include 4 Port PSE (TS0804F)

TS0804F 8-port 10/100Mbps PoE switch 4 port PoE. The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.
TS0804F provides a simple, cost- effective, and non-blocking wire-speed performance with 11-inch metal shape for desktop deployment in compact housing, office or department network application.

Features
Interface information
8-Port 10/100Mbps Fast Ethernet
4-Port PoE
PoE(Power over Ethernet)
Complies with IEEE802.3af/at Power over Ethernet
Supports PoE Power up to 32W for each PoE port
Auto detect power device
PoE Overload Alarm LED
Remote power and Data feeding up to 100m

Switch
Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
2K MAC address, automatic address learning and address aging
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
Built-in power supply can be chosen by the customer

Key Features and Benefits
PoE Features
The TS0804F can provide up to 32 Watts of power to attached devices, such as VoIP phones, wireless access points; surveillance cameras etc, all over existing cat. 5cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.

PoE Power Usage Display

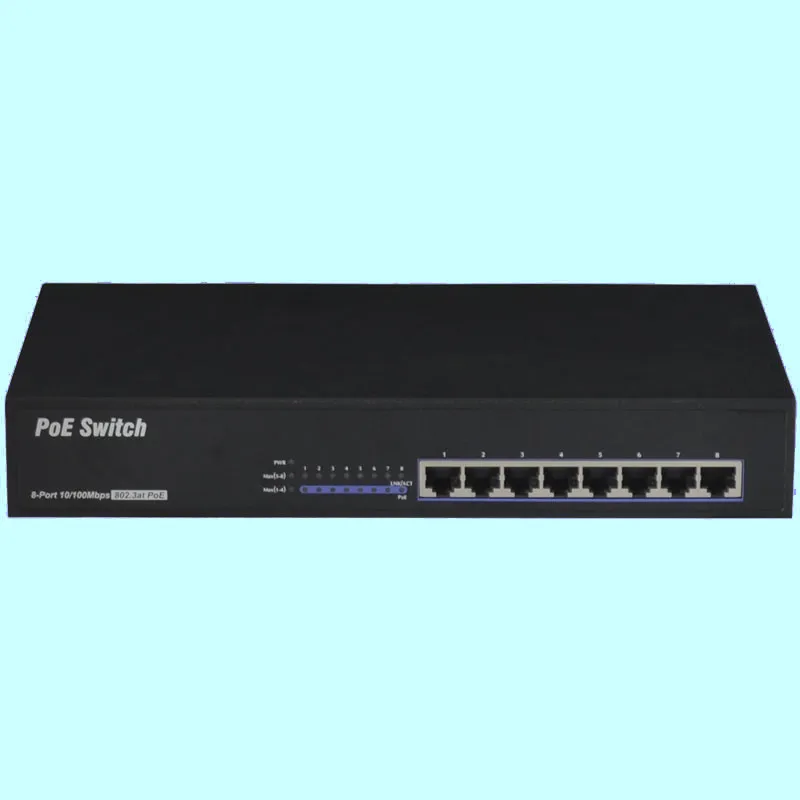

The TS0804F helps users to monitor current status of PoE power usage easily and efficiently by its intelligent PoE Management feature of LED indication, there are two orange LEDs named "max" located on left side of the front panel. When Port 1-4 output is >= 80%, the LED will be lighted up, when Port 1-4 output is> = 100%; the LED will blink to notify customers for better PoE allocation. If PoE Power consumption over 100%, the system will cut off the power of the lowest-priority port. Priority 1(port 1 > port 2 >port 3 > port 4).

Application
TS0804F is an ideal solution for IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) application. it is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi- channel (802.11a/b/g/n) wireless LAN access points and other network devices by providing double PoE power than conventional 802.3af PoE currently.

Specification
Adapter information
Ordering information

FAQ
1.What is the warranty on the parts you sell?
All parts sold by YINET meet all of the manufactures specifications and carry one year warranty. Some customized products could carry up to three years warranty.
2.How to repair a broken product?such as POE switch,wireless router and Ethernet switch products
Usually we supply free substitute model for the small value products. and we bear the freight. For Big-ticket items or high value products,Considering the high freight and cost we can supply free parts such as PCBA,power adapter or power supply etc. We can also provide remote guidance.
3.What payment methods do you offer?
We accept payment via T/T, L/C,Western Union, MoneyGram and PayPal;
4. What is your minimum order?
To achieve customers' satisfaction, we accept sample order, even one Piece.
