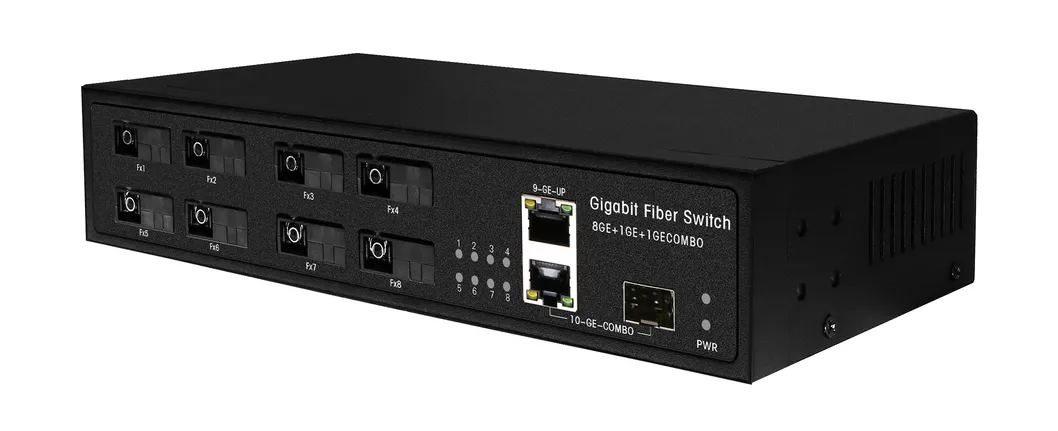

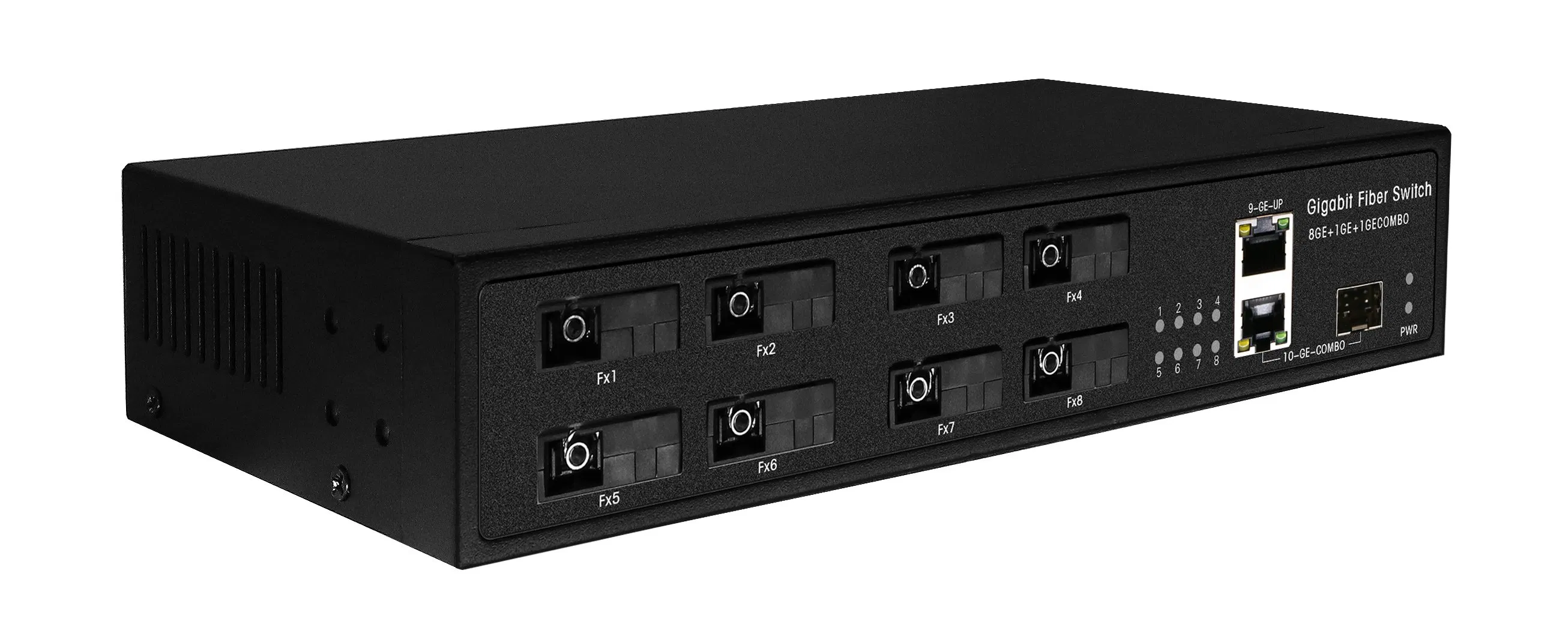

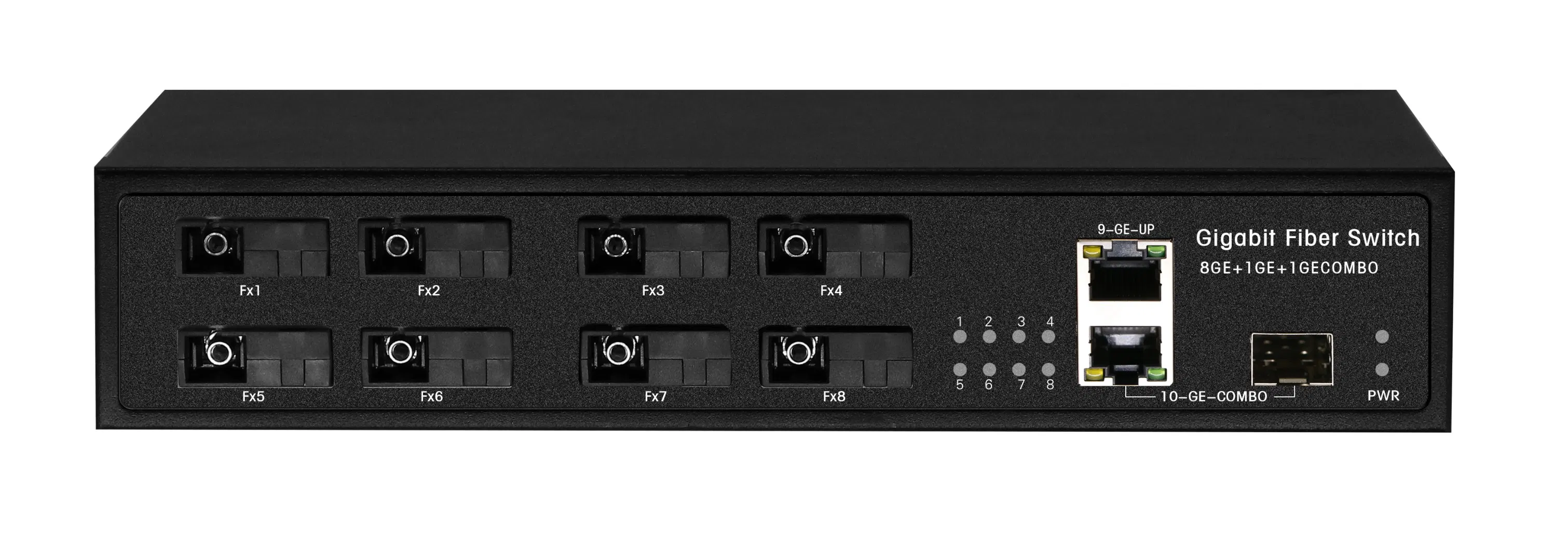

8*1000m Fixed Fiber Ports with 1 Giga SFP/Tx Combo
8*1000M fixed fiber ports with 1 giga SFP/TX combo ModelS12-8GX-2GCProductFull Gigabit 8+2 Switch Fixed Port1*10/100/1000Base--TX RJ45 port (Data)8*1000M fixed fiber ports( optional 1310,1550,1310/1550)1*COMBONetwork ProtocolIEEE802.3 IEEE802.3i 10BASE-TIEEE802.3u100BASE-TX IEEE 802.3ab1000BASE-TIEE......
Send Inquiry
Product Description
8*1000M fixed fiber ports with 1 giga SFP/TX combo
| Model | S12-8GX-2GC |
| Product | Full Gigabit 8+2 Switch |
| Fixed Port | 1*10/100/1000Base--TX RJ45 port (Data) 8*1000M fixed fiber ports( optional 1310,1550,1310/1550) 1*COMBO |
| Network Protocol | IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE 802.3ab1000BASE-T IEEE802.3x IEEE 802.3z 1000BASE-X |
| Port Specification | 10/100BaseT(X)Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 32Gbps |
| Packet Forwarding | 14.44Mpps |
| MAC Address | 8K |
| Buffer | 4.1M |
| Transmission Distance | 10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) 1000BASE-TX : Cat6 or later UTP(150 meter) Single mode single fiber(MAX 20KM) Single mode double fiber (MAX 20KM) Multiple mode double fiber(MAX 850M/2KM) Optional 3-80KM SFP |
| Watt | ≤15W; |
| LED Indicator | PWR:Power LED Uplink:(Link LED=10/100M Link,1000M=Gigabit Link) 1~8:(SFP LED) |

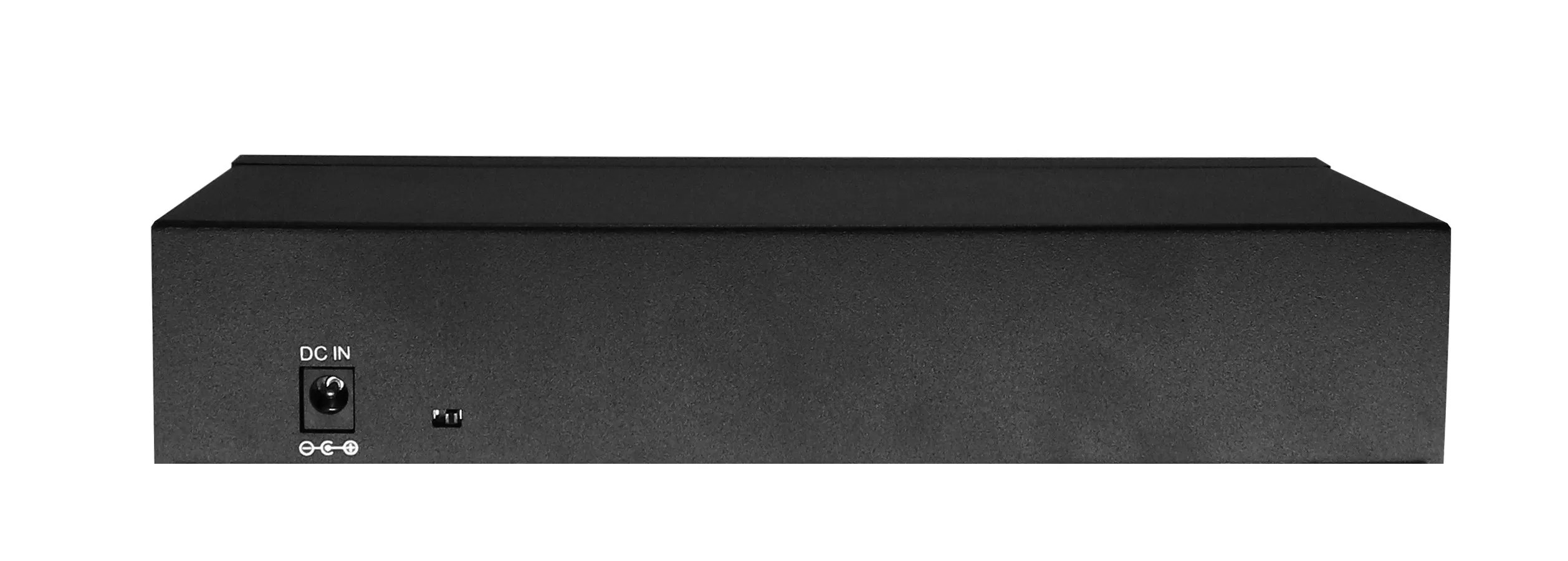

| Power | Built-in power DC 12V 2A |
| Operating Temperature/Humidity | -10~+55°C;5%~90% RH Non coagulation |
| Storage Temperature/Humidity | -40~+75°C;5%~95% RH Non coagulation |
| Product size/Packing size(L*W*H) | 225mm*105mm*45mm 305mm*205mm*55mm |
| N.W/G.W(kg) | 0.7kg/1.1kg |
| Installation | Desktop (optional wall hanger+machine hanger parts) |
| Lightning Protection level | 3KV 8/20us; IP30 |
| Certificate | CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS; |
| Warranty | Whole device for 1 year(Accessories not included) |
