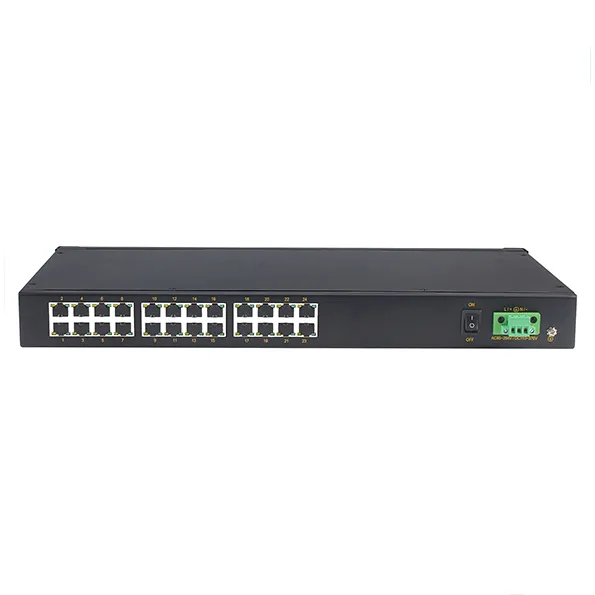

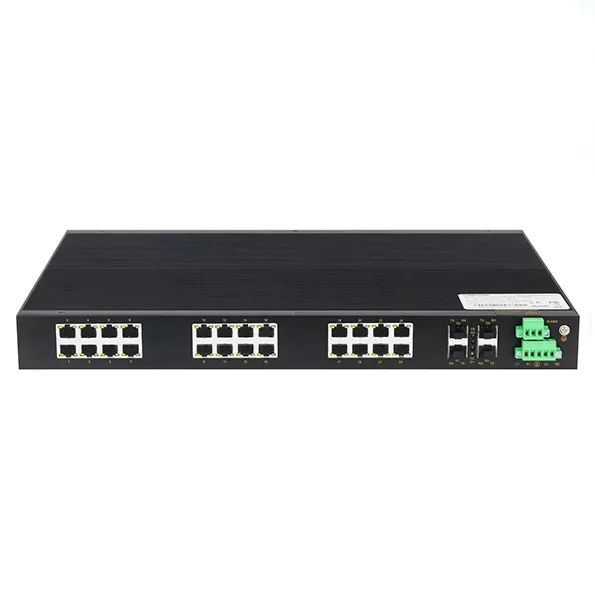

4 SFP Ports 24 100m Ports Rack-Mount Layer 2 Unmanaged Industrial Ethernet Network Switch
4 SFP Ports 24 100m Ports Rack-Mount Layer 2 Unmanaged Industrial Ethernet network Switch Product DescriptionTELE3028 series layer 2 unmanaged Industrial Ethernet Switch are Ethernet communication product developed for industrial communication. The product uses high-performance industrial-grade swi......
Send Inquiry
Product Description
4 SFP Ports 24 100m Ports Rack-Mount Layer 2 Unmanaged Industrial Ethernet network Switch
Company Profile
TELEFLY Telecommunications Equipment Co., Ltd. is a leading Chinese manufacturer founded in 2004, certified by SGS. We provide high quality and price competitive fibre optic cable, fibre optic patch cords, fibre optic patch panels, FTTH equipments, fibre optique patch panels, optical splitters, WDM, optical attenuators, fast connectors ,Ethernet switch ,SFP transceiver and so on. Up till now, our products and solutions have been deployed in over 60 countries and regions, TELEFLY is looking forward to strengthening friendly cooperative relationships with all clients, creating benefits together and sharing the joy of success!
Why you choose TELEFLY be one of your partner?
1.Customer get satisfied quality and service with competitive price and punctual delivery.
2.OEM service with 13-year experiences, free samples are available.
3.Prompt answer for any question and inquiry in the shortest time.
4.Factory directly,reduce your cost and save time.
Cerfifications Showing
Our Exhibition
Professional packing and transportation
Product Description
TELE3028 series layer 2 unmanaged Industrial Ethernet Switch are Ethernet communication product developed for industrial communication. The product uses high-performance industrial-grade switch chip. It supports 4 Gigabit SFP ports +24x10/100M ports for optional, with AC220V/DC110V power input.
Features and Benefits
-4 Gigabit fiber ports +24 100M ports for fiber or RJ45 ports optional, flexible ports configuration
-Support status display with front and back side indicator lights
-Start work once connected, quick and convenient
-Support isolated power supply, optional dual redundant power supply
-Support power-down status reply alarm output
-Wide temperature range design, fanless thermal design
-Satisfy harsh industrial environment
Specifications
Specifications
| Technical parameters | |
| Protocol Standard | IEEE802.3Ethernet), IEEE802.3u(100Base-TX&100Base-FX), IEEE802.3x(Flow control), IEEE802.3ab(1000Base-T), IEEE802.3z(1000Base-LX) |
| Switch capability | |
| MAC Table Size | 8k |
| Backplane bandwidth | 12.8Gbps |
| Switch Delay | <5μs |
| Interface | |
| Gigabit port | Port numbers: 4 |
| Connector: SFP optical port (LC interface, single/multi-mode optional) or 10/100/1000M adaptive RJ45 ports | |
| Baud rate: 100Base-LX (fiber port), Self-adaption 10/100/1000MBase-TX | |
| 100M port | Number: 24 |
| Connector: 1×9 fixed fiber port(single/multi-mode optional, SC/FC/ST interface) or RJ45 100M TX port | |
| Baud rate: 100Base-FX(fiber port), Self-adaption 10/100Mbase-TX | |
| Terminal block for power input | 7.62mm terminal block |
| Terminal block for relay alarm | 5.08mm terminal block,1A@24VDC |
| Communication distance | |
| Twisted-pair | 100m(CAT5/CAT5e cable) |
| Multi-mode fiber | 1000M multi-mode:850nm, 500m; 100M multi-mode: 1310nm, 2km |
| Single-mode fiber | 1000M single-mode: 1310nm, 20km; 100M single-mode: 1550nm, 60/80km |
| LED indicator lights | |
| Front panel LED lights | Port light: LINK/ACT; SPEED |
| System work light: RUN | |
| Power status light: PWR1; PWR2; | |
| Alarm light: ALARM | |

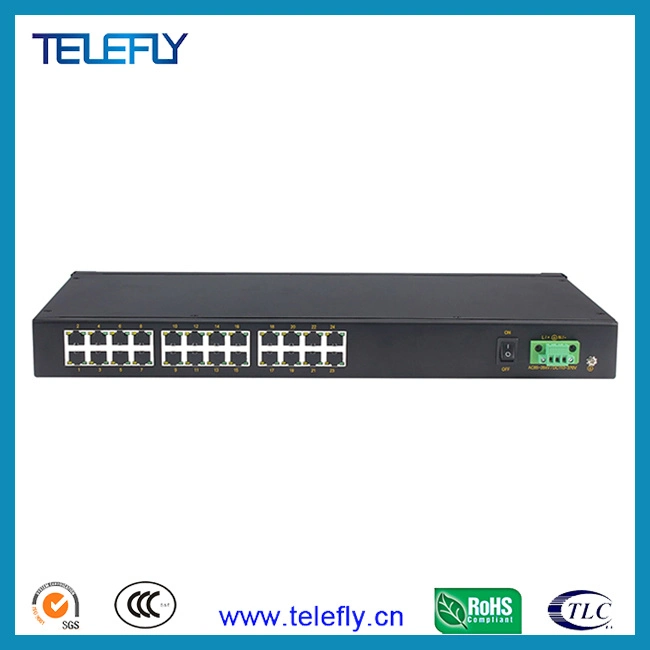

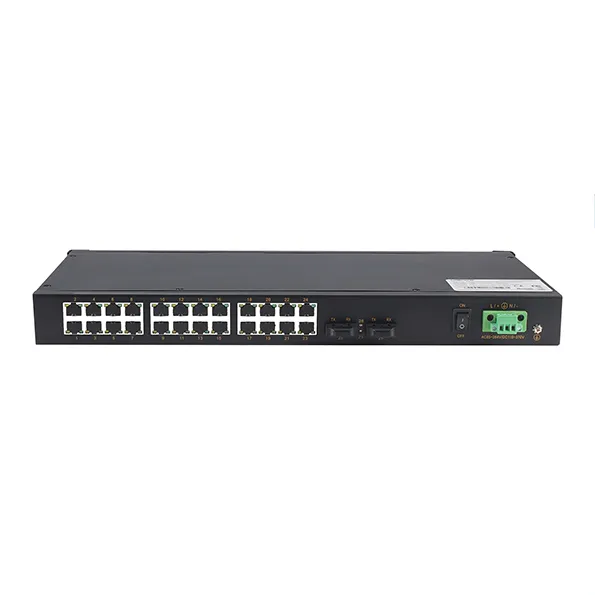

| Back panel LED lights | RJ45 Port indicator light: LINK/ACT; SPEED |
| Fiber indicator light: LINK/ACT | |
| Power | |
| Input power | AC / DC220V (85-264VAC / 110-370VDC) |
| Power consumption | <40W@(MAX) |
| Overload protection | Support |
| Reverse protection | Support |
| Redundancy protection | Support |
| Working Environment | |
| Operating Temperature | -40°C~85°C |
| Storage temperature | -45°C~85°C |
| Ambient Humidity | 5%~95% |
| Physical Characteristics | |
| Shell | IP40 protection, aluminum alloy shell |
| Installation | Standard 19-inch rack mounting, |
| Dimension | 482.6mmx44mmx315mm |
| Industry standard | |
| EMC | EN61000-4-2(ESD), Level 4 |
| EN61000-4-3(RS), Level 4 | |
| EN61000-4-4(EFT), Level 4 | |
| EN61000-4-5(Surge), Level 4 | |
| EN61000-4-6(CS), Level 4 | |
| EN61000-4-8, Level 5 | |
| Impact | IEC60068-2-27 |
| Falling | IEC60068-2-32 |
| Shock | IEC60068-2-6 |
| Warranty | |
| Warranty | 5 Years |
| Certification | |
| Certification | CE, FCC, RoHS |
| Ordering Information | |
| TELE3028-4GF-AD220 | 4 Gigabit Fx ports +24 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply |
| TELE3028-4GF-4F(S/M)-AD220 | 4 Gigabit Fx ports +4 100M Fx ports +20 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply |
| TELE3028-4GF-8F(S/M)-AD220 | 4 Gigabit Fx ports +4 100M Fx ports +20 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply |
| TELE3028-4GF-12F(S/M)-AD220 | 4 Gigabit Fx ports +12 100M Fx ports +12 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply |
| TELE3028-4GF-16F(S/M)-AD220 | 4 Gigabit Fx ports +16 100M Fx ports +8 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply |
| TELE3028-4GF-24F(S/M)-AD220 | 4 Gigabit Fx ports +24 100M Fx ports, single AC85-264V/DC110~370V isolate power supply |
