2u Intel I3 I5 I7 H87 8 LAN Network Appliance, Network Switch, Rackmount Firewall
2U Rackmount H87 I3/I5/I7 8 LAN Networking Appliance [ R02-UL8F ]2U Rackmount EnclosureSupport Intel®LGA1155/1150 Core/Pentium/ Celeoron i3/i5/i7 series processor ......
Send Inquiry
Product Description

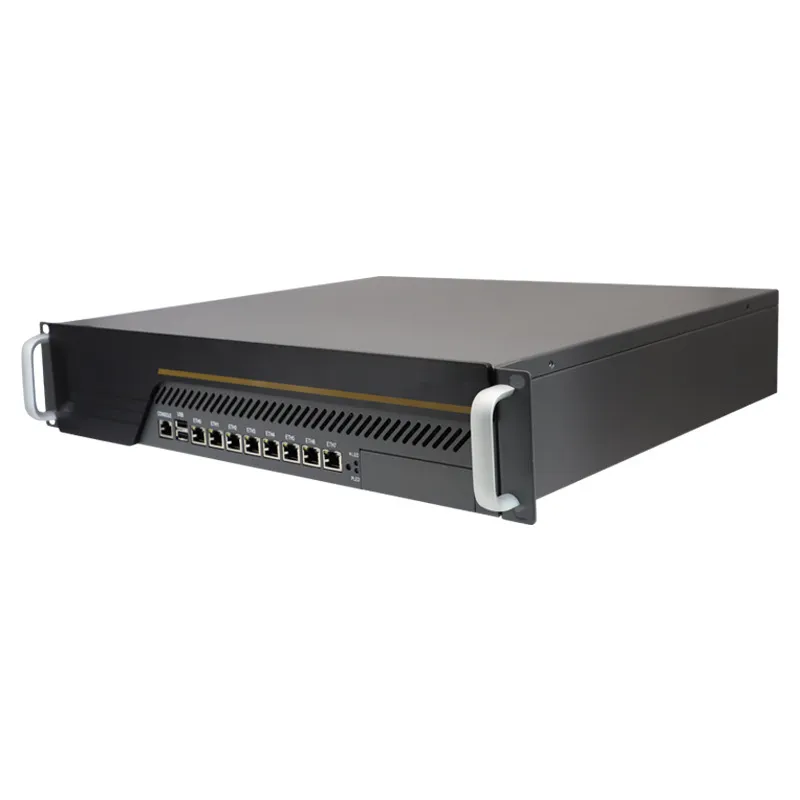

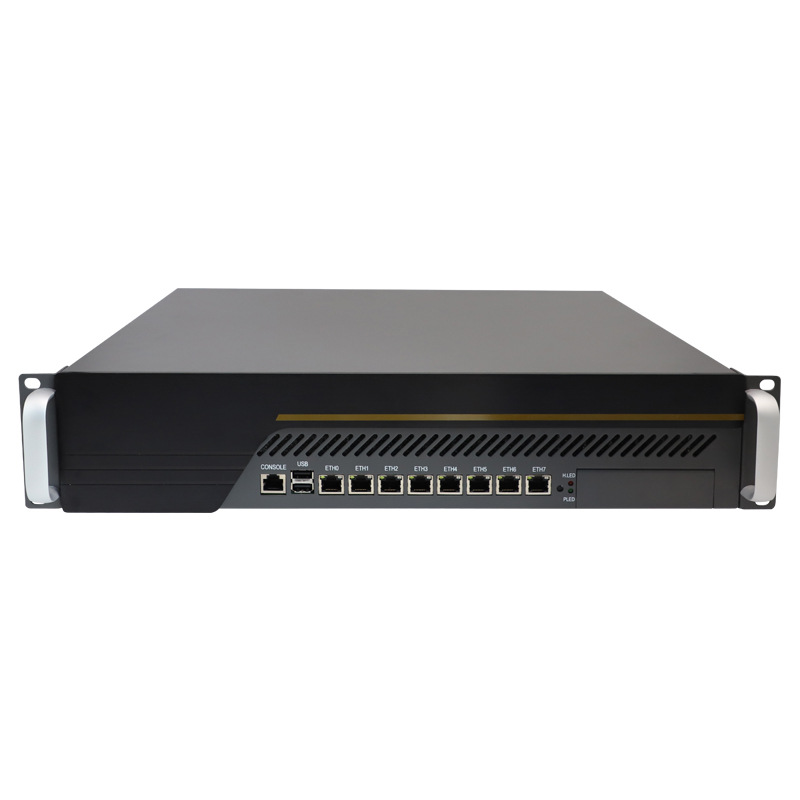

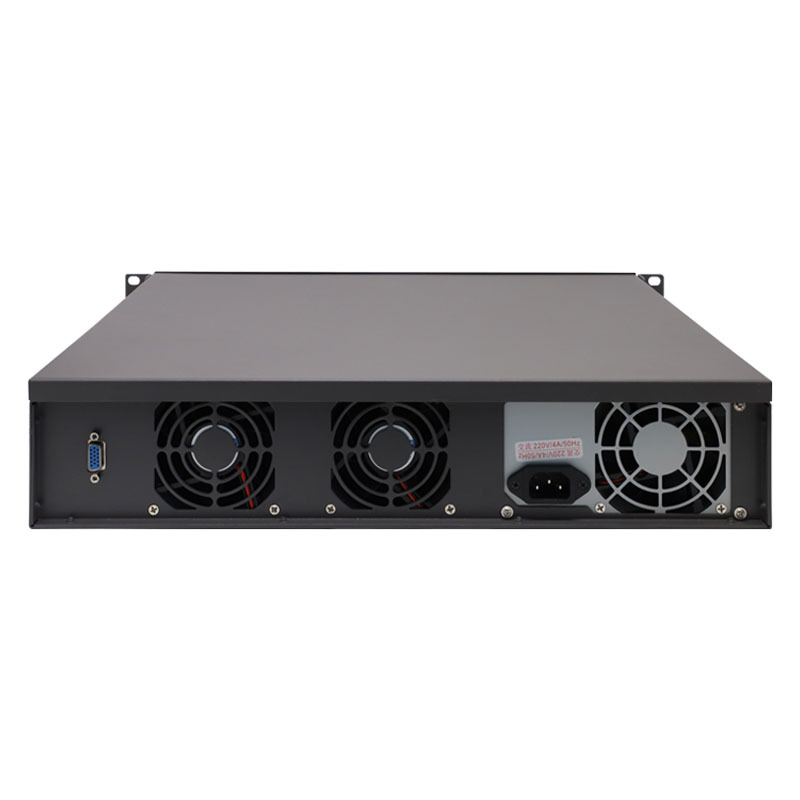

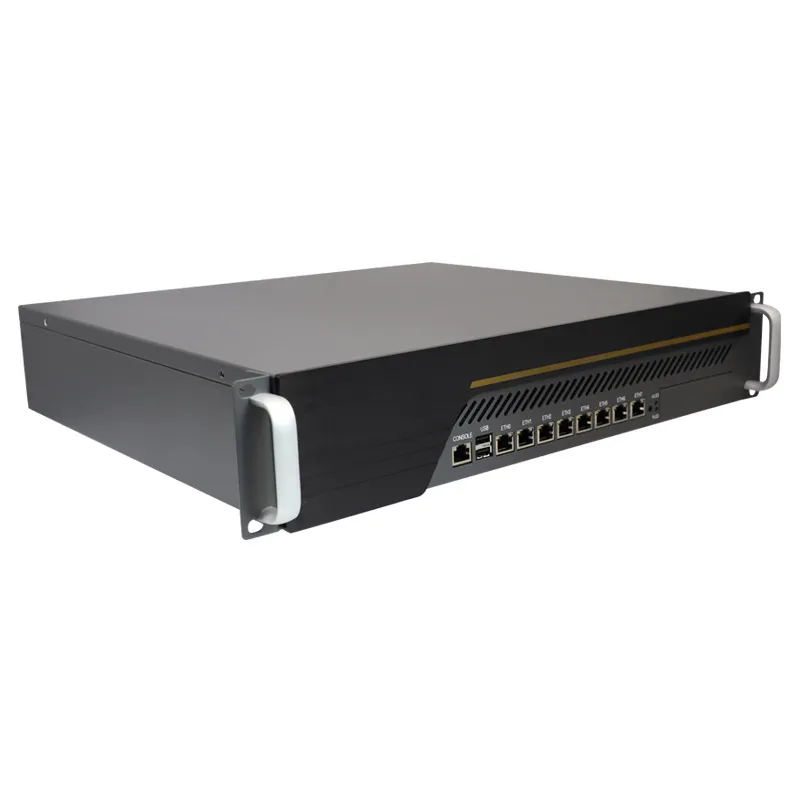

2U Rackmount H87 I3/I5/I7 8 LAN Networking Appliance [ R02-UL8F ]
2U Rackmount Enclosure
Support Intel®LGA1155/1150 Core/Pentium/ Celeoron i3/i5/i7 series processor
2x DDR3 SODIMM 1333/1066,Max.2* 8GB
8* LAN ,1*RJ-45 COM,2*USB 2.0,1*VGA
435mm x 400mm x 88mm
ATX Power
| N0 | Item # | Specification |
| 1 | Enclosure Spec. | Standard 2U Rackmount Enclosure ( Black Metal + Aluminum Panel) |
| 2 | Dimension | 435mm x 400mm x 88mm |
| 3 | Processor | Support LGA1150 Intel® Core™ i3/i5/i7 22nm Processor |
| 4 | Chipset | Intel ® H87 Express Chipset |
| 5 | BIOS | AMI 64Mbit BIOS ,Support No-Dist Boot, Wake-ON-LAN,Automatic Power-On,Watchdog (JAHC),Ghost |
| 6 | Storage | 1*MINI-PCIE support WiFi;1*mSATA |
| 7 | Memory | 2*SO-DIMM DDR3 1333\1600MHz 1.35V Memory,up to 16GB |
| 8 | LAN Ports | 8*Intel 82574L 1000Mbps ( 2nd option: Optical Fiber Card with 4*Intel ® 710 10Gb Ports) |
| 10 | Display Port | 1xVGA |
| 11 | COM Port | 1* RJ-45 CISCO Standard Console Port |
| 12 | USB | 2* USB2.0; 2 group of Bypass as optional( For 1/2 and 3/4 LAN ports ) |
| 13 | Reset Button | 1*Reset Button |
| 14 | Indicate LED | 1 x LED(Power Hard-Disk Indicator ) |
| 15 | PC/2 | 1*PS/2 PIN |
| 19 | Watchdog | Support |
| 20 | GPIO | 1*GPIO PIN |
| 21 | Cooling System | 1x CPU Fan,1*System Fan |
| 22 | OS Supported | Windows 7/Windows8/Windows10,64bit(not include OS code) ; Linux (Centos,Ubantu etc) |
| 23 | Power Type | ATX AC 110-220V,Compatible with Rebundant Power |
| 26 | Working Temp | -10ºC ~ +60ºC |
| 27 | Storage Temp | -20ºC ~ +70ºC |
| 28 | Relative Humidity | 5~95% RH,No Condensing |
| 29 | Working Vibration | 5-60Hz,0.1 Biodal Displacement |

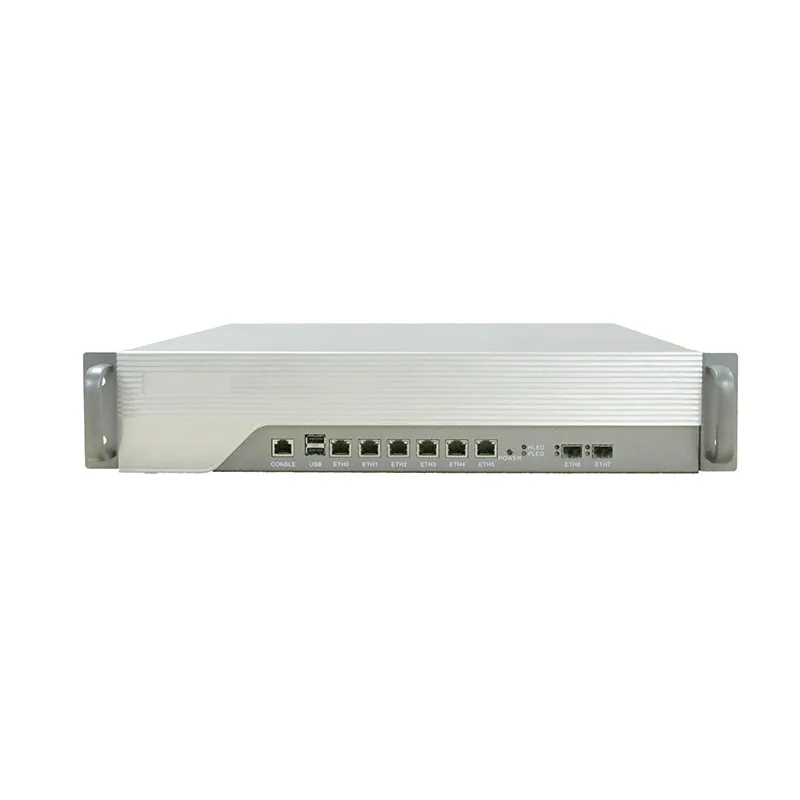

Other 2U Appliance optional
OEM/ODM Projects Welcome!
R&O is an professional Industrial Motherboard and IPC manufacturer with the ability to bring your concepts and ideas into viable computing solutions. We work with individuals and companies at all stages of design and manufacture, from concept to finish, in a highly focused effort to bring industry level products and services to you.
The steps as below :
Once customer provides us with concept information and detailed specifications, we will notify them of the total cost for design, prototyping, and estimated cost per unit before the project begins. From Computer-on-Modules and SBCs to embedded integrated systems and application ready platforms, R&O's OEM/ODM services cover the full project life cycle.

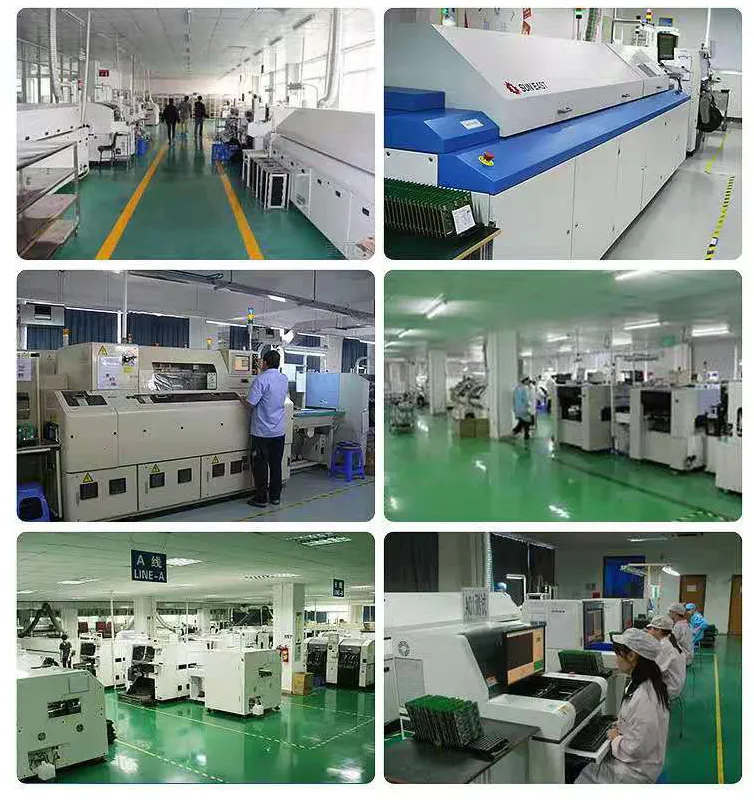

To maximize product availability, R&O maintain stringent quality standards in our manufacturing processes, and ensure products go through rigorous quality checks at every stage of production.
OEM/ODM Services
In order to meet the market's demand and provide the suitable solution, R&O offers board level and system level customized design and integration service for the IPC market.
OEM/ODM Service for Single Board Computer and
PCB placement / Layout / Assembly
Custom CMOS/BIOS Setting
Customized Indicated Accessories and Peripherals Pre-installed
Embedded OS
Environment Test
OEM/ODM Service for System Configuration and Integration
ID and Mechanical Customization
System Assembly
Custom CMOS/BIOS Setting
OS Installation
Completed System Test
Certification Tooling
Customized Packing Carton
OEM/ODM Service Flow Chart
R&O is committed to delivering quality solutions to our customers through our OEM/ODM services. Delivered straight from our corporate OEM/ODM Team, the products benefit our clients by lower manufacturing costs as well as a shorter lead-time for product development. welcome your inquiry !
