2u 6 LAN 2 SFP Poe Network Appliance Switch
2U B75 I3/I5/I7 6 LAN 2 SFP Networking Appliance Switch [ R02-UL6F752SFP ]2U Rackmount EnclosureSupport Intel®LGA1155 Core/Pentium/ Celeron i3/i5/i7 series processor ......
Send Inquiry
Product Description

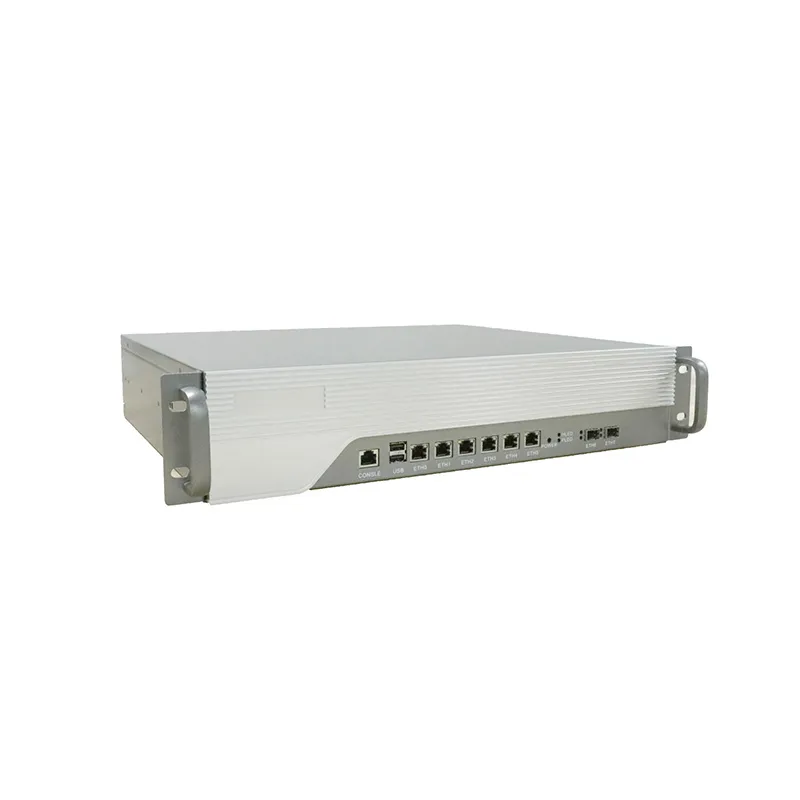

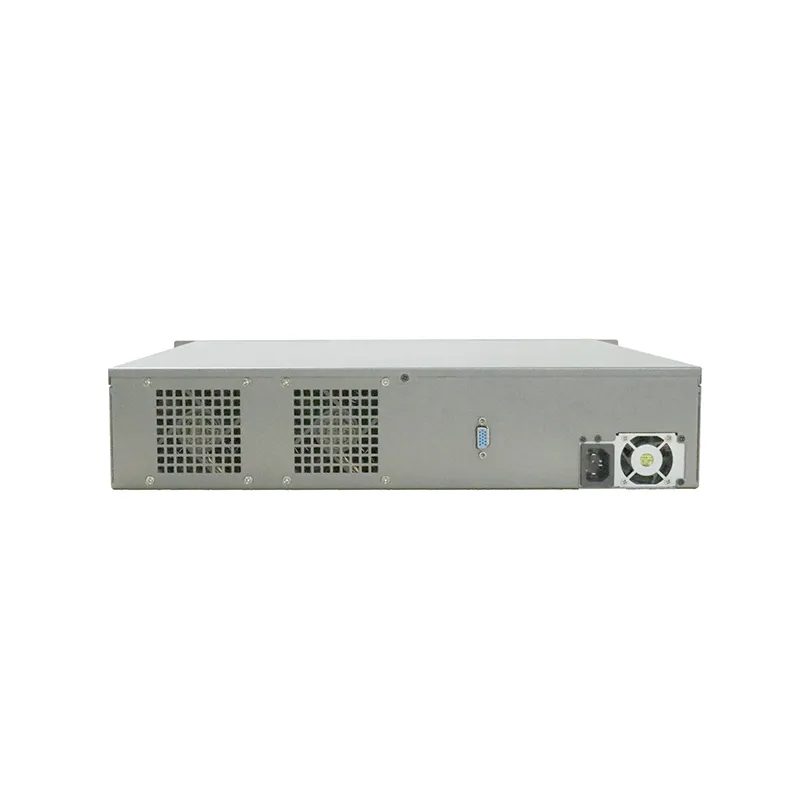

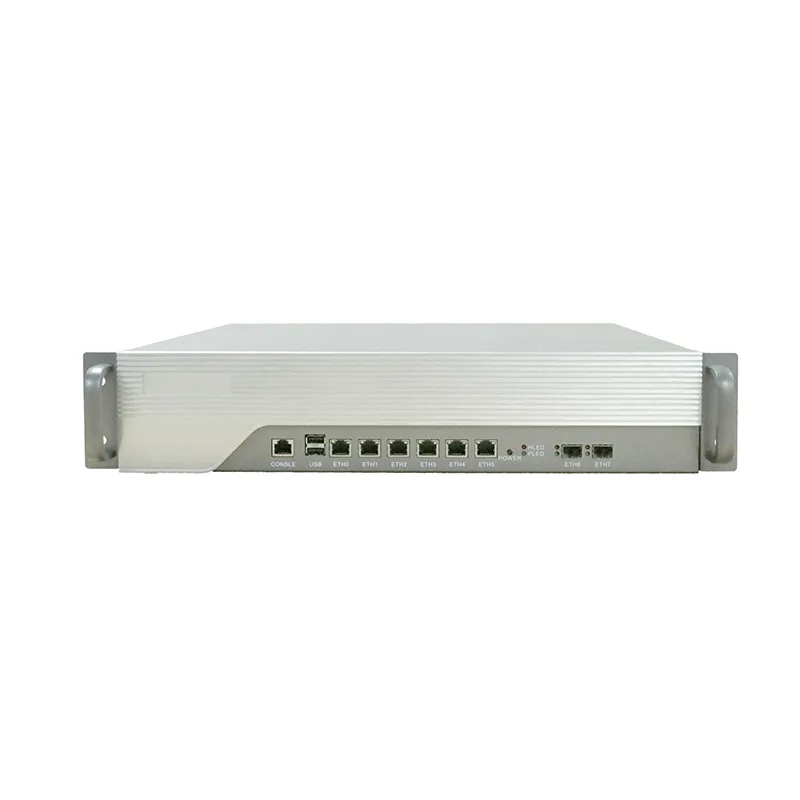

2U B75 I3/I5/I7 6 LAN 2 SFP Networking Appliance Switch [ R02-UL6F752SFP ]
2U Rackmount Enclosure
Support Intel®LGA1155 Core/Pentium/ Celeron i3/i5/i7 series processor
2x DDR3 SODIMM 1333/1066,Max.16GB
6* LAN+ 2*SFP ,1*RJ-45 COM,2*USB 2.0,1*VGA
430mm x 280mm x 88mm
ATX Power
| 1 | Enclosure Spec. | Standard 2U Rackmount Enclosure (Metal With Aluminum Panel ; Sliver Color) |
| 2 | Dimension | 430mm x 280mm x 88mm (L*W*D) |
| 3 | Processor | Support Intel ® 2nd /3rd Gen i3/i5/i7 Core/Pentium/ Celeron 22nm LGA1155 processor |
| 4 | Chipset | Intel B75 Express Chipset |
| 5 | BIOS | AMI 64Mbit BIOS,Support Non-Disk Boot/ Wake-ON-LAN /Auto Power On Time/WatchDog |
| 6 | Storage | 1*MINI-PCIE support WiFi ; 1*mSATA |
| 7 | Memory | 2*DDR3 SODIMM Memory slot,Support Dual Channel 1600/1333/1066MHz Memory ,Max. 16GB |
| 8 | LAN Ports | 6*Intel 82583V 1000/100/10Mbps Gigabit Ethernet Ports + 2* Intel NH82580DB 1G SFP ( 2* Intel 82599ES 10G SFP as option) |
| 10 | Display Port | 1xVGA |
| 11 | COM Port | 1* RJ-45 CISCO Standard Console Port |
| 12 | USB | 2* USB2.0 |
| 19 | Watchdog | Support JAHC |
| 22 | OS Supported | Windows 7/Windows 8 / Windows10 etc; CentOS Ubuntu etc |
| 23 | Power Type | AC110V-220V ATX Power |
| 26 | Working Temp | 0ºC ~ +45ºC |
| 27 | Storage Temp | -20ºC ~ +70ºC |
| 28 | Relative Humidity | 5~95% RH,No Condensing |
| 29 | Working Vibration | 5-60Hz,0.1 Biodal Displacement |
OEM/ODM Projects Welcome!
R&O is an professional Industrial Motherboard and IPC manufacturer with the ability to bring your concepts and ideas into viable computing solutions. We work with individuals and companies at all stages of design and manufacture, from concept to finish, in a highly focused effort to bring industry level products and services to you.
The steps as below :
Once customer provides us with concept information and detailed specifications, we will notify them of the total cost for design, prototyping, and estimated cost per unit before the project begins. From Computer-on-Modules and SBCs to embedded integrated systems and application ready platforms, R&O's OEM/ODM services cover the full project life cycle.
To maximize product availability, R&O maintain stringent quality standards in our manufacturing processes, and ensure products go through rigorous quality checks at every stage of production.
OEM/ODM Services
In order to meet the market's demand and provide the suitable solution, R&O offers board level and system level customized design and integration service for the IPC market.
OEM/ODM Service for Single Board Computer and
PCB placement / Layout / Assembly
Custom CMOS/BIOS Setting
Customized Indicated Accessories and Peripherals Pre-installed
Embedded OS
Environment Test
OEM/ODM Service for System Configuration and Integration
ID and Mechanical Customization
System Assembly
Custom CMOS/BIOS Setting
OS Installation
Completed System Test
Certification Tooling
Customized Packing Carton
OEM/ODM Service Flow Chart
R&O is committed to delivering quality solutions to our customers through our OEM/ODM services. Delivered straight from our corporate OEM/ODM Team, the products benefit our clients by lower manufacturing costs as well as a shorter lead-time for product development. welcome your inquiry !
