              28 Port Network Switch with 24 Port 100m Poe and 2 Ge 2SFP Uplink Power for IP Camera and Ap (TS284F)

              24+2G Combo 802.3at PoE Switch Product OverviewTS2824F is a 24+2G Combo PoE switch with 24 port PoE. The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the p......

              Send Inquiry

              Product Description

              24+2G Combo 802.3at PoE Switch

              Product Overview
              TS2824F is a 24+2G Combo PoE switch with 24 port PoE. The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.
              TS2824F provides a simple, cost-effective, and non-blocking wire-speed performance with 19-inch metal shape for rack deployment in office or department network application.

              Features
              Interface information
              • 24 10/100Mbps RJ45 ports
              • 2 10/100/1000Mbps RJ45/SFP Combo ports
              • 24 ports PoE
              PoE(Power over Ethernet)
              • Complies with IEEE802.3af/at Power over Ethernet
              • Supports PoE Power up to 32W for each PoE port
              • Auto detect power device
              • Remote power and Data feeding up to 100m
              Switch
              • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
              • 4K MAC address, automatic address learning and address aging
              • Built-in power supply can be chosen by the customer

              PoE Features
              The TS2824F can provide up to 32 Watts of power to attached devices, such as VoIP phones, wireless access points; surveillance cameras etc, all over existing cat. 5cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.
              Overload Arrangement
              TS2824F has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 240/300W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port(The larger port number, the lower priority).
              Application
              Providing 24-Port PoE in-line power interfaces, the TS2824F can easily build a power centrally-controlled IP phone system, IP Camera system and Wireless AP group for the enterprise. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the powersocket limitation, the TS2824F makes the installation of cameras more easily and efficiently
               28 Port Network Switch with 24 Port 100m Poe and 2 Ge 2SFP Uplink Power for IP Camera and Ap (TS284F)
               Specification
              Hardware

              StandardIEEE802.3, IEEE802.3u,IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at
              Network Media(Cable)10BASE-T: UTP category 3,4,5 cable (≤100m)
              100BASE-TX: UTP category 5,5e cable (≤100m)
              1000BASE-T: UTP category 5e,6 cable(≤100m)
              LEDSystem: Power (Green)
              Per port: PoE (Orange)LINK/ACT(Green)
              MAC Address Table4K, Auto-learning, Auto-aging
              Transfer modeStore-and-Forward
              Maximum packet length1536 Byte
              Switching Capacity8.8G
              Dimensions (LxWxH)445 x 207 x 45 mm
              Weight
              FanFan
              Power InputAC: 100~240V, 50/60Hz
              Power OutputDC: 55V/ 4.5A, 55V /5.6A (Optional)
              PoE(Power Over Ethernet)
              PoE portPort1~24
              PoE Power on RJ-45Mode A  1/2(+),3/6(-)
              PoE Power OutputPer port 55V DC  Max.32W
              PoE Power Budget240W/300W (Optional)
              Environmental
              Operating Temperature-10°C ~ 50 °C
              Storage Temperature-40 °C ~ 70 °C
              Operating Humidity10% ~ 90% non-condensing
              Storage Humidity5% ~ 90% non-condensing
              Adapter information
                 Power SupplyPoE Power Budget
              55V240W
              55V300W

              Ordering information
              ModelSwitch portGbit comboSpeed(Mbps)PSE PortInternal Adapter PoE Standard
              TS2824F-26024F210/10024260WIEEE802.3af/at
              TS2824F-33024F210/10024330W
              TS2824F-40024F210/10024400W

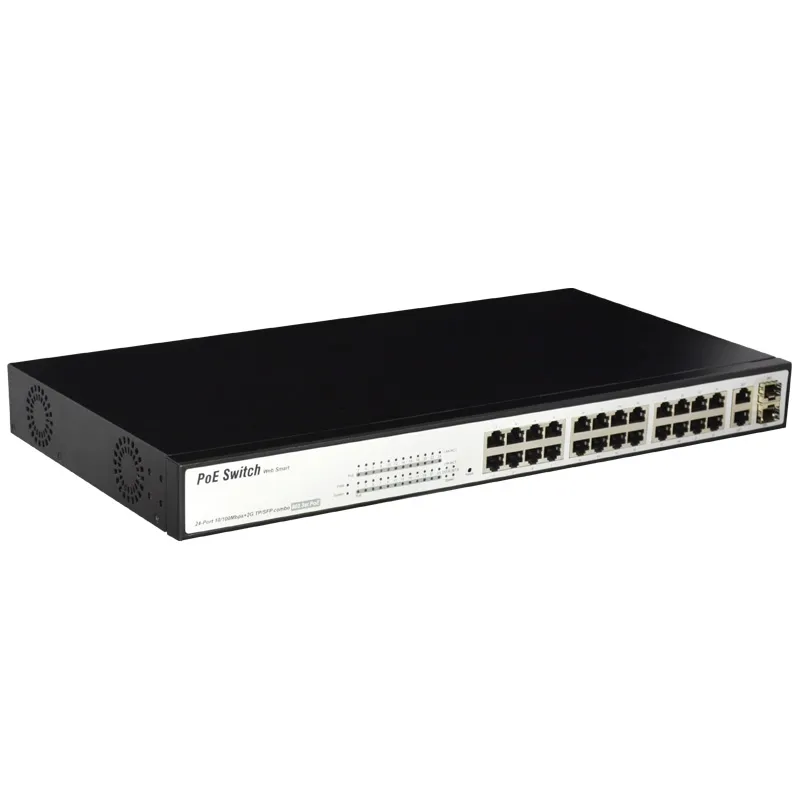

              Products  Photo
              28 Port Network Switch with 24 Port 100m Poe and 2 Ge 2SFP Uplink Power for IP Camera and Ap (TS284F)

              Package Photo
              28 Port Network Switch with 24 Port 100m Poe and 2 Ge 2SFP Uplink Power for IP Camera and Ap (TS284F)
