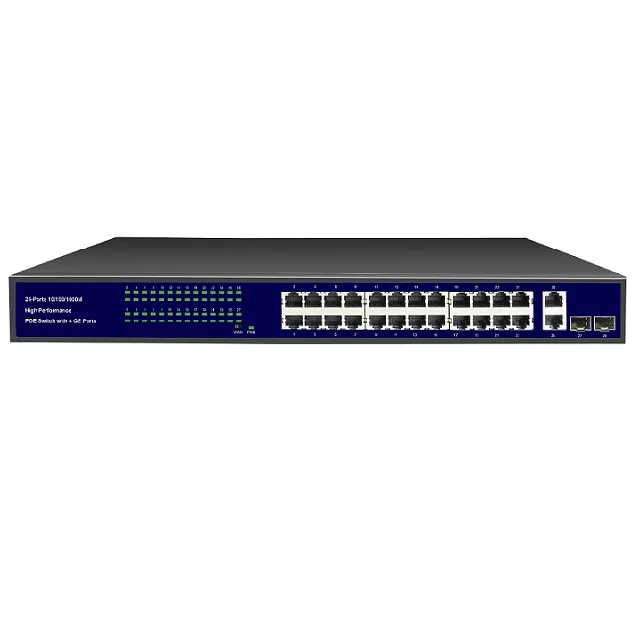

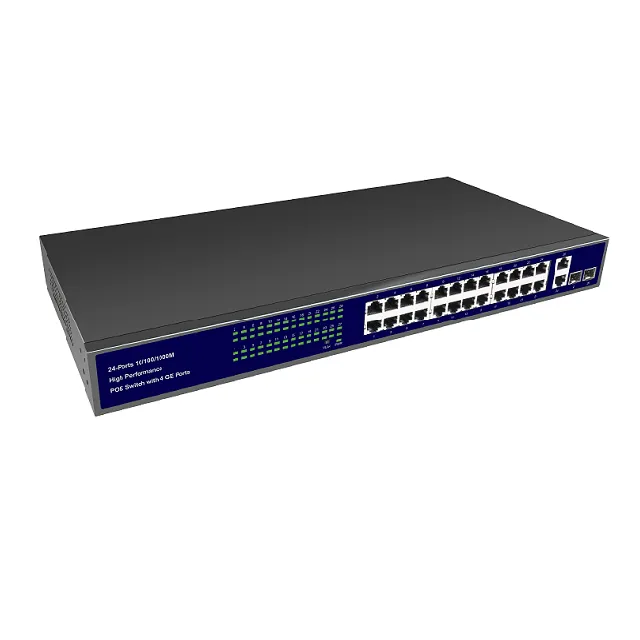

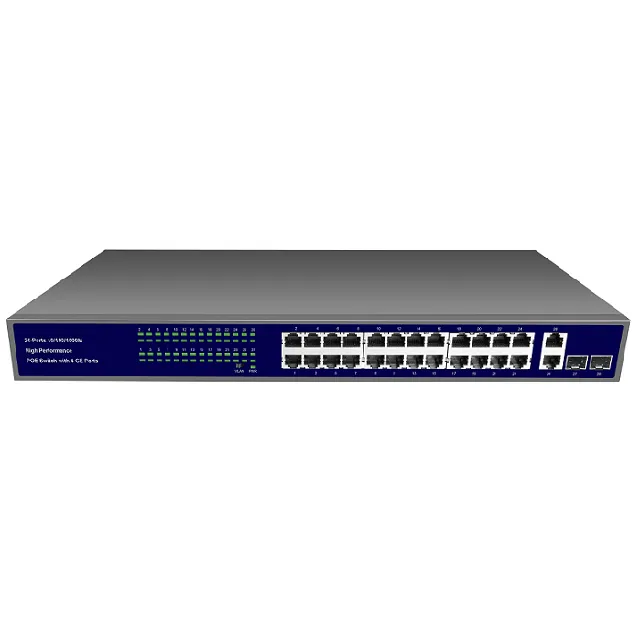

24 Ports Fiber Poe Switch with Gigabit Poe Ports, 400W Poe Power CCTV/IP Camera/IP Phone/Wireless Ap, 48V Poe Switch
24 ports Gigabit PoE switch ModelSP-2404GFBCPURTL8382L+2*RTL8218B+RTL8214FCStandardIEEE802.3 10BASE-T Ethernet2. IEEE802.3u 100BASE-TX Fast Ethernet3. IEEE802.3ab 1000BASE-T Gigabit Ethernet4. ANSI/IEEE 802.3 NWay Automatic negotiation5. IEEE802.3af6. IEEE802.3atPorts24* 10/100/1000M RJ45 PoE Ports ......
Send Inquiry
Product Description
24 ports Gigabit PoE switch
| Model | SP-2404GFB |
| CPU | RTL8382L+2*RTL8218B+RTL8214FC |
| Standard |
3. IEEE802.3ab 1000BASE-T Gigabit Ethernet 4. ANSI/IEEE 802.3 NWay Automatic negotiation 5. IEEE802.3af 6. IEEE802.3at |
| Ports | 24* 10/100/1000M RJ45 PoE Ports 2 * 10/100/1000M RJ45 Up-Link Ports 2 * 1000Base-X SFP Fiber Ports |
| Property |
3. Support half duplex, full duplex, self negotiation mode 4. Support MDI/MDI-X adaptive 5. Support VLAN port isolation |
| LAN Cable |
|
| LINK LED |
|
| Back bandwidth | 56Gbps |
| Packet Forwarding Rate | 10Mpbs: 14800pps 100Mpbs: 148000pps 1000Mpbs: 1480000pps |
| Switching Mode | Storage and forwarding |
| MAC Address | Support MAC address automatic learning, automatic aging MAC Address Table: 8K |
| PoE Starndard | IEEE802.3af, IEEE802.3at |
| Max PoE power/Port | 30W |
| ESD | ±6KV |
| Max PoE Power | 250W / 400W |
| DC Input | 100-240V~ 50/60Hz |
| Working Temperature | 0ºC ~ 40ºC |
| Storage Temperature | -40ºC ~ 70ºC |
| Working Humidity | 10% ~ 90% RH |
| Storage Humidity | 5% ~ 90% RH |
| Heat dissipation | Fan |
| Size (L×W×H) | L440*W221.5*45H |
| Weight | 4 kg |
