24 Ports 90W Poe Switch 802.3bt Compliant 24ge*90W
24GE POE+4GE/SFP combo gigabit Ethernet switchTS58P-24G-4TC-BT Main Features 24GE*90W+4GE/SFP combo Comply to IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,802.3X,802.3z. 500M CPU, 56G backplane bandwidth. Comply to POE IEEE 802.3af/at/bt standard, all ports standard testing. Fluid Control: Full-duplex: IEEE ......
Send Inquiry
Product Description

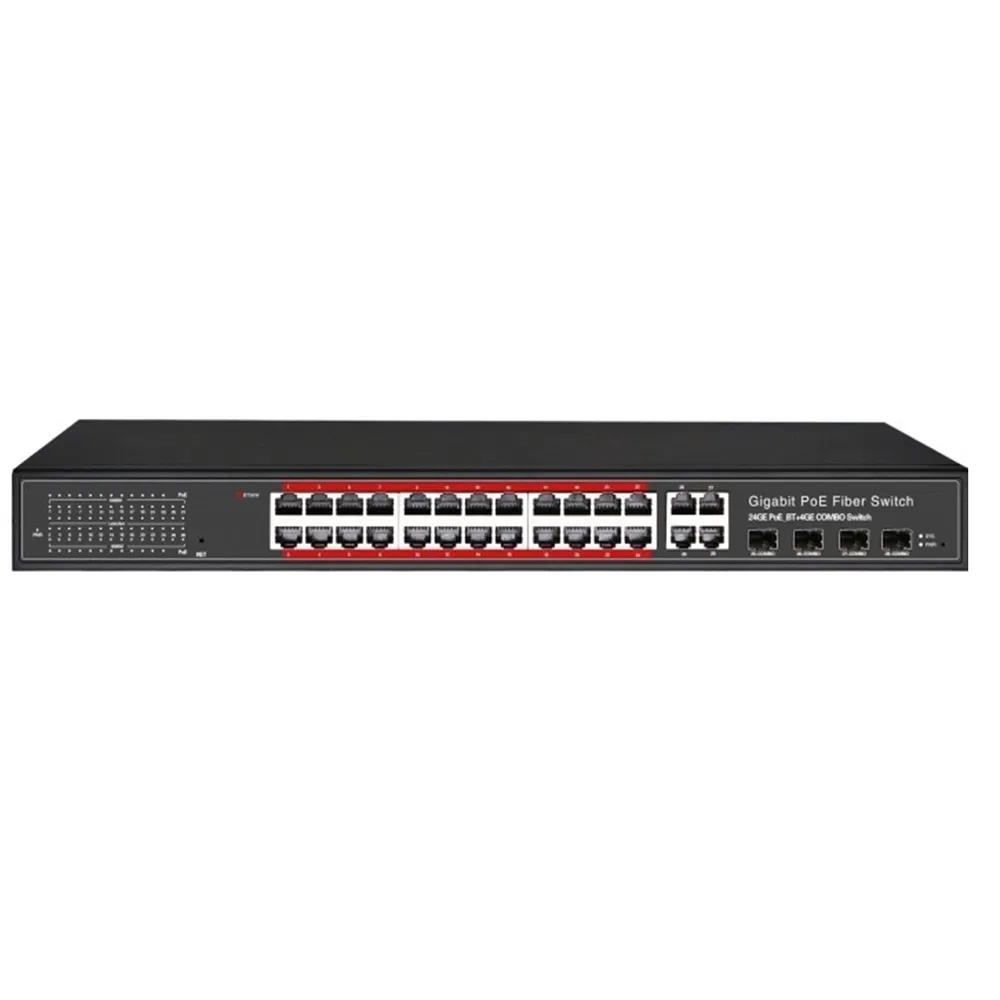

24GE POE+4GE/SFP combo gigabit Ethernet switch
TS58P-24G-4TC-BT
Main Features
24GE*90W+4GE/SFP combo
Comply to IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,802.3X,802.3z.
500M CPU, 56G backplane bandwidth.
Comply to POE IEEE 802.3af/at/bt standard, all ports standard testing.
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
Auto MDI/MDIX.
Upstream port lightning protection.
802.3af/at/POE++/BT max 90w output,total power budget 800w
Store-and-forward.
All ports support wire speed switch, jumbo frame transmission.
Zero QFD, self-adaption.
Panel lights can monitor operative mode and malfunction analysis.
Specification
| Model | TS58P-24G-4TC-BT | |
| Electric Port | POE | 24*10/100/1000Mbps POE |
| Uplink port | 4GE/SFP combo | |
| Function | Exchange Mechanism | Store-and-forward |
| Exchange Capacity | 56G | |
| MAC | 8K | |
| Environmental | Working Temperature:0ºC~45ºC Storage Temperature :-40ºC~70ºC | |
| Working Humidity :10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing | ||
| POE | 802.3af/at/POE++/BT max 90w output,total power budget 800w | |
| power | AC110-265V 50/60HZ | |
| Network protocol | IEEE 802.3X IEEE 802.3i 10BASE-T X IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-TG IEEE 802.3z 1000BASE-X G 802.3af/at/POE++/BT max 90w output IEEE 802.3x Flow control IEEE 802.1q VLAN Bridge operation | |
| Speed | Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex | |
| Network Media | 10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤100m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) | |
| Physical Specifications | Product Size:440mm*290mm*45mm(L*W*H) package Size:497mm*393mm*97mm(L*W*H) 4.4Kg | |
Product Ordering Information :
Model Number:TS58P-24G-4TC-BT
Product Details:24GE POE+4GE/SFP
Model Number:TS58P-24G-4TC-BT
Product Details:24GE POE+4GE/SFP
