16 Port 10/100Mbps Poe Ethernet Switch with 2ge RJ45+1giga SFP Uplink Ports Ts26p-16f-2g-1s
16 Port 10/100Mbps POE Ethernet switch with 2GE RJ45+1GIGA SFP uplink ports TS26P-16F-2G-1SProduct Description:The TS26P-16F-2G-1S is a gigabit uplink 10/100Mbps unmanaged POE switch, which provides 16 DATA+POE ports and two pure data 10/100/1000Mbps RJ45 and 1 gigabit SFP fiber port. Among them, po......
Send Inquiry
Product Description

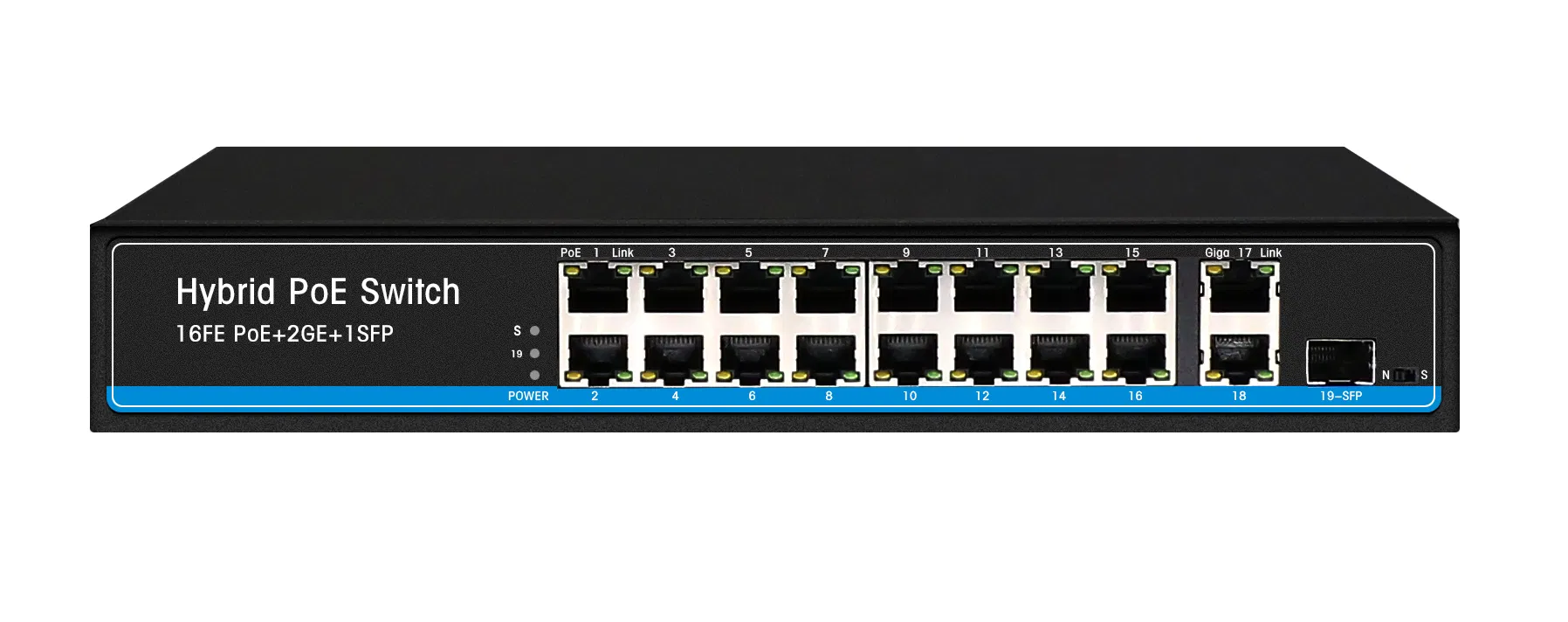

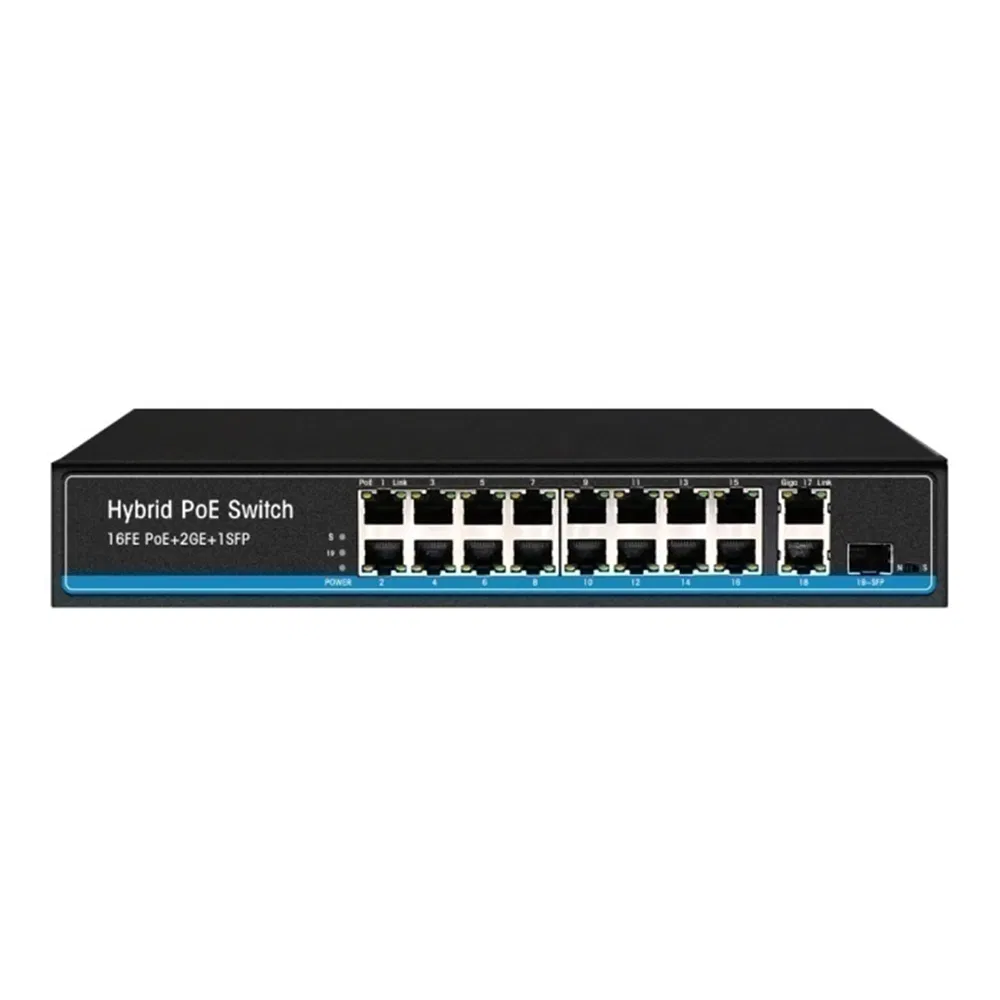

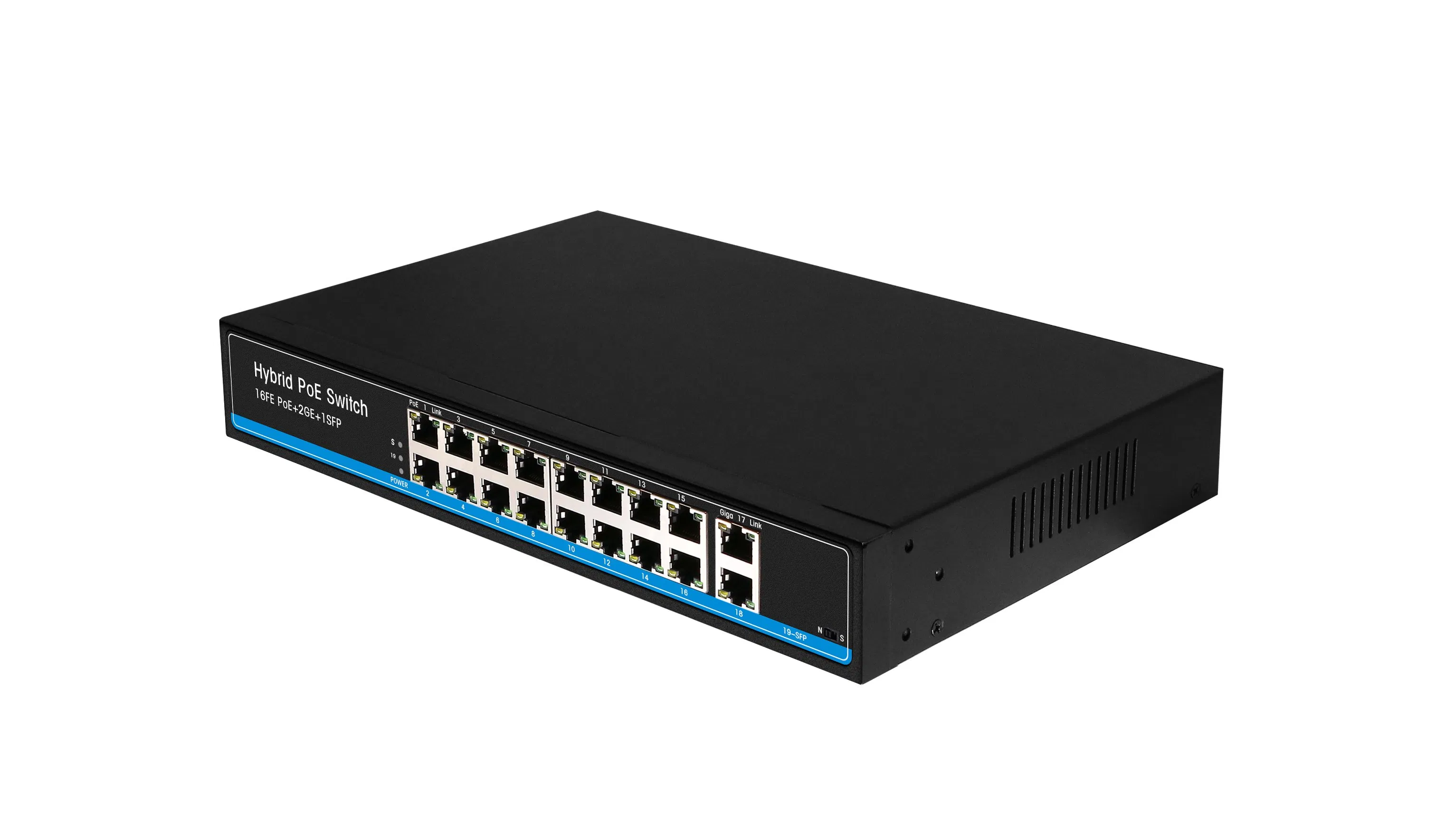

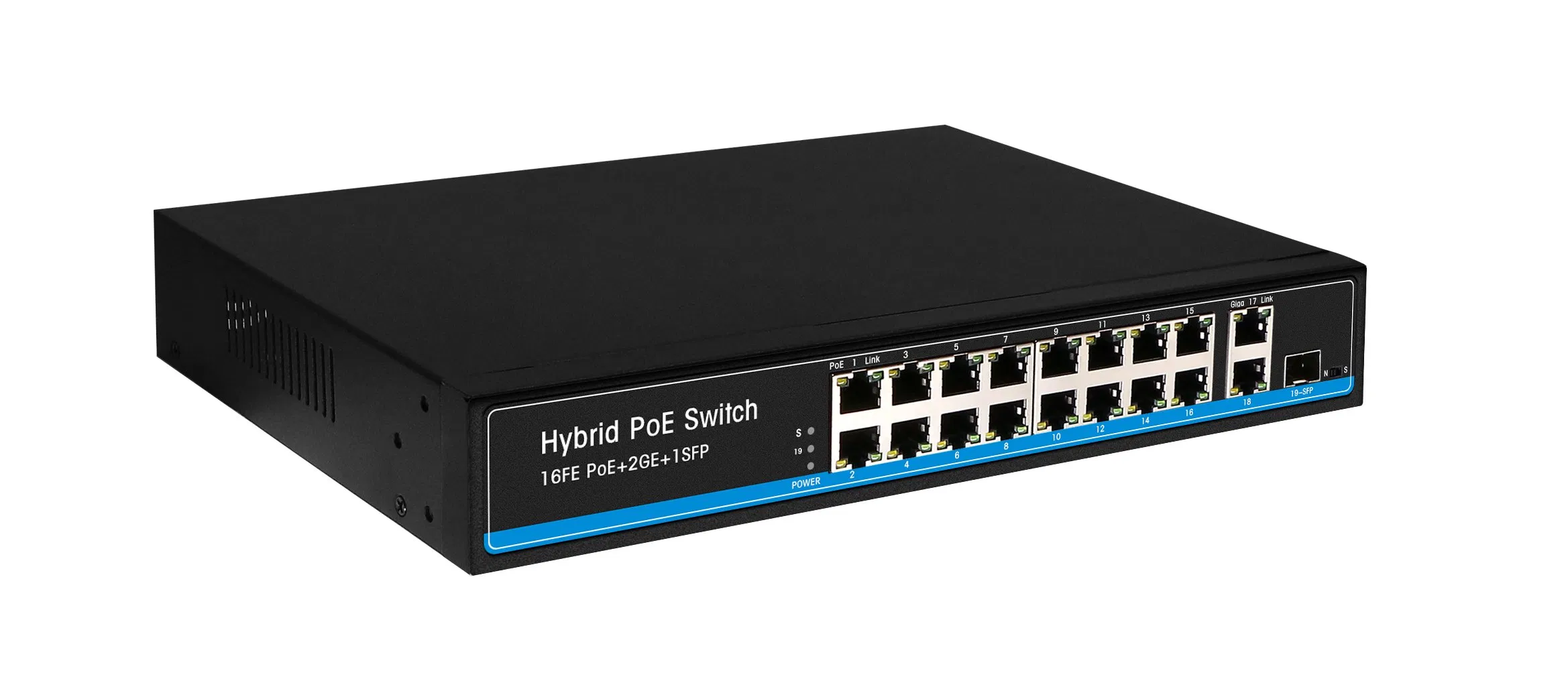

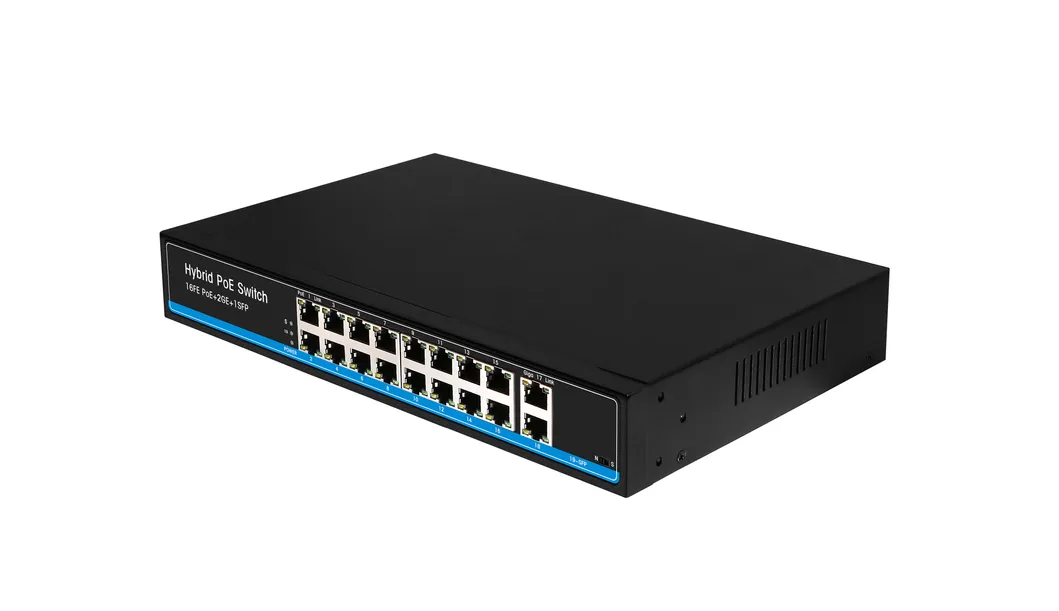

16 Port 10/100Mbps POE Ethernet switch with 2GE RJ45+1GIGA SFP uplink ports TS26P-16F-2G-1S
Product Description:
The TS26P-16F-2G-1S is a gigabit uplink 10/100Mbps unmanaged POE switch, which provides 16 DATA+POE ports and two pure data 10/100/1000Mbps RJ45 and 1 gigabit SFP fiber port. Among them, port 1-16 follows the 802.3af/at standard and supports maximum power output of 30w. The POE ports of the switch can automatically detect and supply power to the PD devices that complies with the 802.3af/at standard. Otherwise, there is no power supply output. In addition, the switch supports auto-negotiating traffic control functions and is compatible with terminal devices of 10Mbps, 100Mbps.
The TS26P-16F-2G-1S is usually used to provide power and data transmission for IP cameras, wireless APs, bridges, and IP phones. For terminal devices that do not support POE, the POE splitter can be used to provide power supply and data transmission.
The TS26P-16F-2G-1S adopts plug-and-play design, which eliminates the need for software settings, which greatly facilitates the installation and use of digital monitoring and wireless coverage.
Product Features:
Product Description:
The TS26P-16F-2G-1S is a gigabit uplink 10/100Mbps unmanaged POE switch, which provides 16 DATA+POE ports and two pure data 10/100/1000Mbps RJ45 and 1 gigabit SFP fiber port. Among them, port 1-16 follows the 802.3af/at standard and supports maximum power output of 30w. The POE ports of the switch can automatically detect and supply power to the PD devices that complies with the 802.3af/at standard. Otherwise, there is no power supply output. In addition, the switch supports auto-negotiating traffic control functions and is compatible with terminal devices of 10Mbps, 100Mbps.
The TS26P-16F-2G-1S is usually used to provide power and data transmission for IP cameras, wireless APs, bridges, and IP phones. For terminal devices that do not support POE, the POE splitter can be used to provide power supply and data transmission.
The TS26P-16F-2G-1S adopts plug-and-play design, which eliminates the need for software settings, which greatly facilitates the installation and use of digital monitoring and wireless coverage.
Product Features:
- Comply with IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3ab, 802.3q, 802.3af/at specifications.
- 2*10/100/1000Mbps uplink ports, support for auto-negotiation.
- 1*SFP fiber port supports long distance transmission over optical fiber.
- 16*10/100Mbps POE ports, support 802.3af/at standard, maximum 30w power output.
- internal max 300w power supply.
- Adopt Store-and-Forward transmission mode.
- Auto MDI-X function, self-adjusting straight-through line, cross-line connection.
- 4K Mac address table
- One DIP switch supports port isolation setting and max 250m POE transmission(CCTV mode)
- Port status LEDs
| Model | TS26P-16F-2G-1S | |
| Port | 1000M Uplink | 2*RJ45+1*SFP fiber port |
| 100M POE | 16 | |
| Function | Exchange Mechanism | Store-and-forward |
| Exchange Capacity | 20G | |
| MAC | 4K | |
| Environmental | Working Temperature:0-50ºC Storage temperature :-40-+70ºC | |
| Working Humidity :10%-90% RH non-condensing Storage Humidity:5%-90% RH non-condensing | ||
| POE | IEEE802.3af/at, MAX 30W, MAX power 300W | |

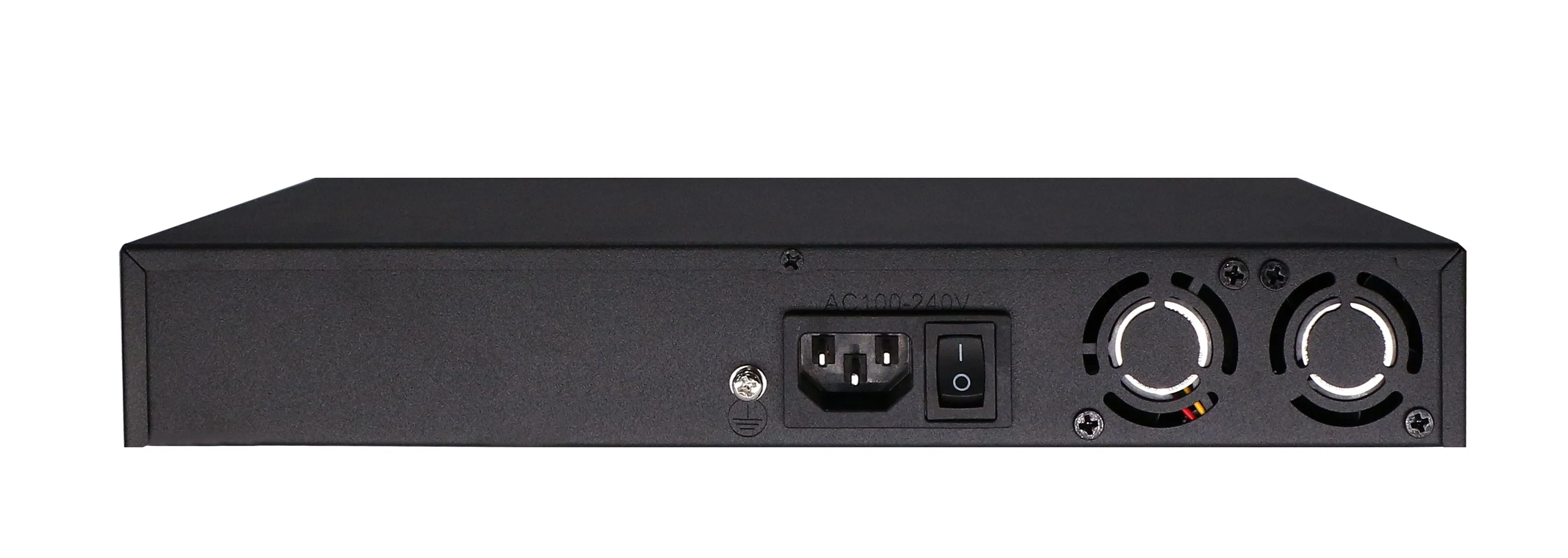

| power | AC input 100~240V 50~60Hz | |
| Network protocol | IEEE 802.3X IEEE 802.3i 10BASE-TX IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-TX IEEE 802.3af /IEEE 802.3at IEEE 802.3x Flow control | |
| DIP switch | CCTV mode max 250m transmission switch | |
| Feature | CCTV mode max transmission up to 250 meter | |
| Speed | Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbps half-duplex, 200Mbps full-duplex Gbit Ethernet 1000Mbps half-duplex, 2000Mbps full-duplex | |
| Network Media | 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m) 1000Base-TX: Pair 2 Category 5e and above UTP/STP(≤100m) | |
| Physical Specifications | products size:295mm*195mm*45mm 2.5kg | |
