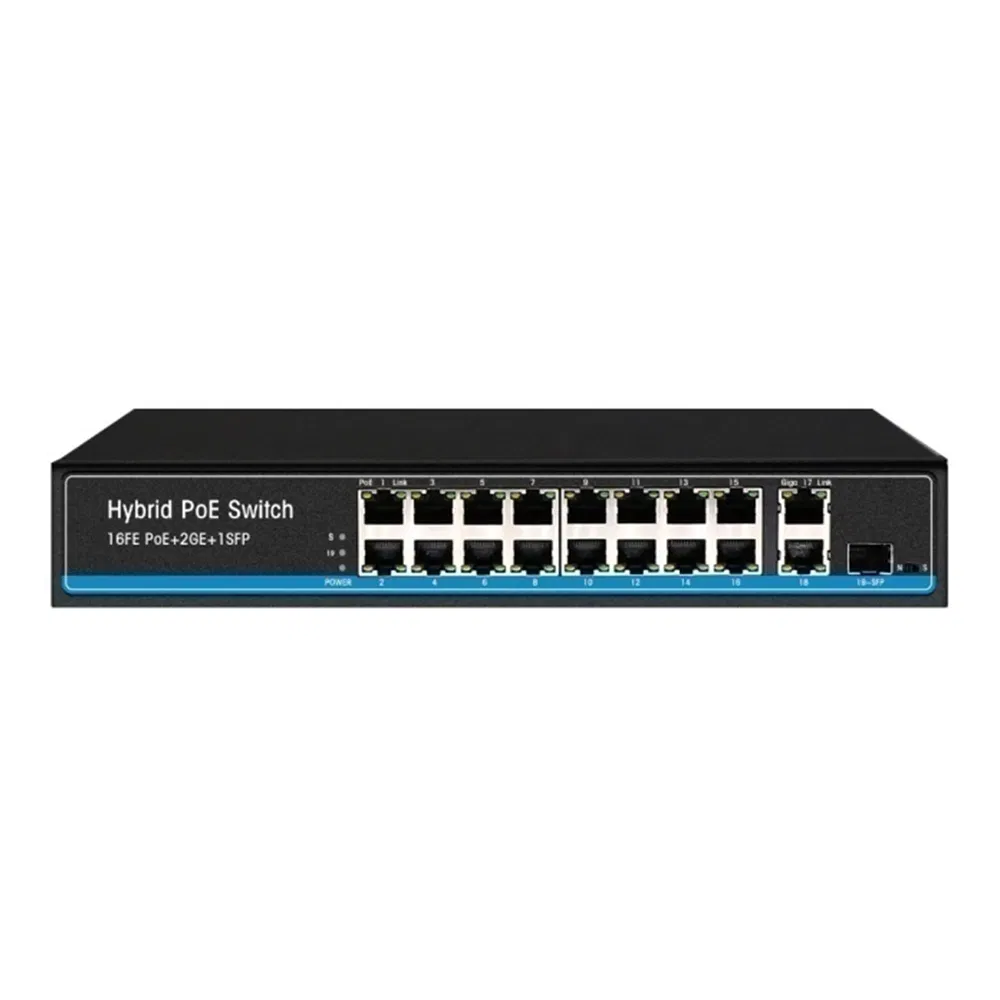

16*100m Poe+2*Giga SFP+2*1000m Tx Poe Switch (not combo)
16+2GE+2SFP Ethernet POE switchTS58P-16F-2GC Smart POE Switch support 1-16 port "IEEE 802.3af/at"POE supply; plug and play, high-compatibility, fit in financial, government, hotel, shopping mall, campus, hospital and small-medium enterprise setting efficiency network. Main Features16FE POE......
Send Inquiry
Product Description
16+2GE+2SFP Ethernet POE switch
TS58P-16F-2GC Smart POE Switch support 1-16 port "IEEE 802.3af/at"POE supply; plug and play, high-compatibility, fit in financial, government, hotel, shopping mall, campus, hospital and small-medium enterprise setting efficiency network.
Main Features
16FE POE+2GE+2GE SFP(not combo)
Comply to POE IEEE 802.3af/at standard, all ports standard testing.
port isolation and max 250m transmission one key setting
Support camera, wireless AP, and IP phone etc.
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
Auto MDI/MDIX.
Support port lightning protection.
Port Power MAX 30W, whole power 300W.
Store-and-forward.
All ports support wire speed switch, jumbo frame transmission.
Plug and play, self-adaption.
Panel lights can monitor operative mode and malfunction analysis.
Datasheet
Product Information:
Model Number:TS58P-16F-2GC
Product Details:16FE POE+2GE+2GE SFP
TS58P-16F-2GC Smart POE Switch support 1-16 port "IEEE 802.3af/at"POE supply; plug and play, high-compatibility, fit in financial, government, hotel, shopping mall, campus, hospital and small-medium enterprise setting efficiency network.
Main Features
16FE POE+2GE+2GE SFP(not combo)
Comply to POE IEEE 802.3af/at standard, all ports standard testing.
port isolation and max 250m transmission one key setting
Support camera, wireless AP, and IP phone etc.
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
Auto MDI/MDIX.
Support port lightning protection.
Port Power MAX 30W, whole power 300W.
Store-and-forward.
All ports support wire speed switch, jumbo frame transmission.
Plug and play, self-adaption.
Panel lights can monitor operative mode and malfunction analysis.
Datasheet
| Model | TS58P-16F-2GC |
| 10/100M POE | 16 |
| 1000M uplink | 2GE+2 SFP |
| Exchange Mechanism | Store-and-forward |
| Bandwidth | 12.8G |
| MAC | 8K |
| Environmental | Working Temperature:0ºC~40ºC Storage temperature :-40ºC~70ºC |
| Working Humidity :10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing | |
| POE | IEEE802.3af/at, Port power MAX 30W, Whole power MAX 300W |
| Power | AC 100-240V 50/60Hz |
| Standards Protocols | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000base-x IE EE 802.3af/at IEEE 802.3x |
| Speed | Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
| Network Media | 10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 6(Cat6e) and above UTP/STP(≤150m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5km) |
| Product specifications | Product Size:440mm*215mm*45mm(L*W*H) package Size:497mm*393mm*97mm(L*W*H) 3.9kg |
Model Number:TS58P-16F-2GC
Product Details:16FE POE+2GE+2GE SFP
