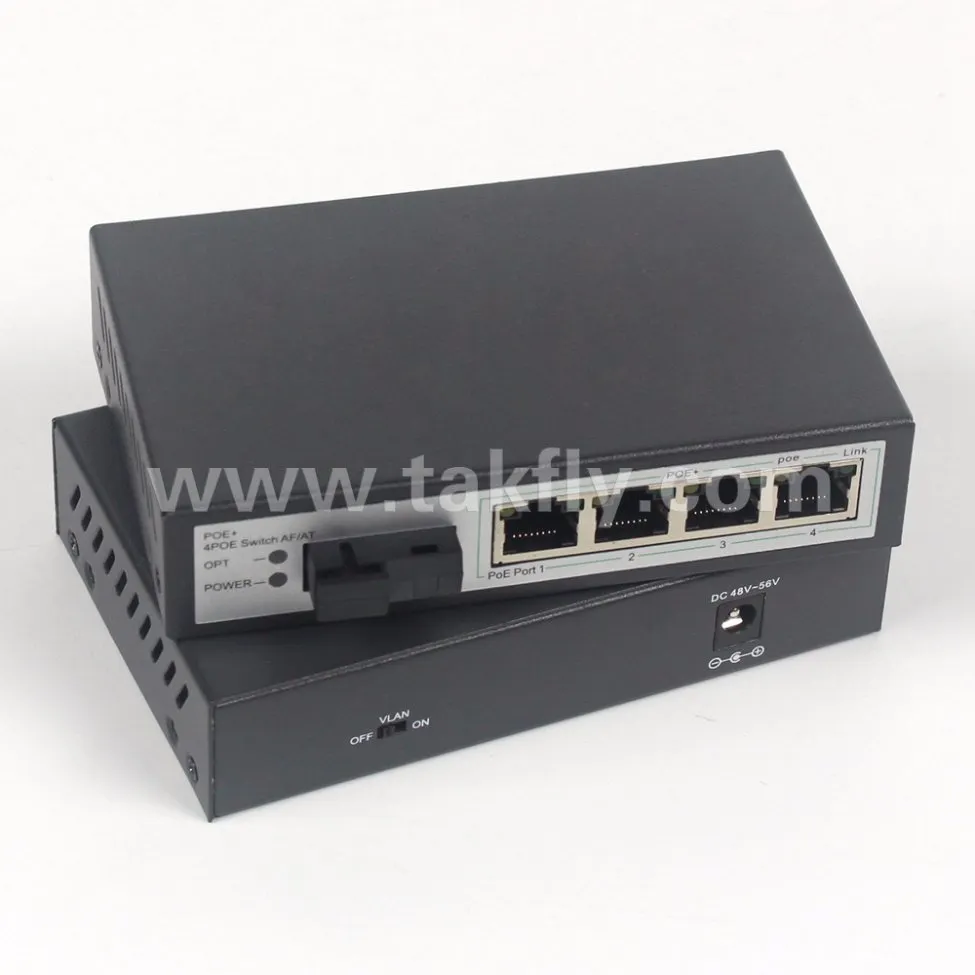

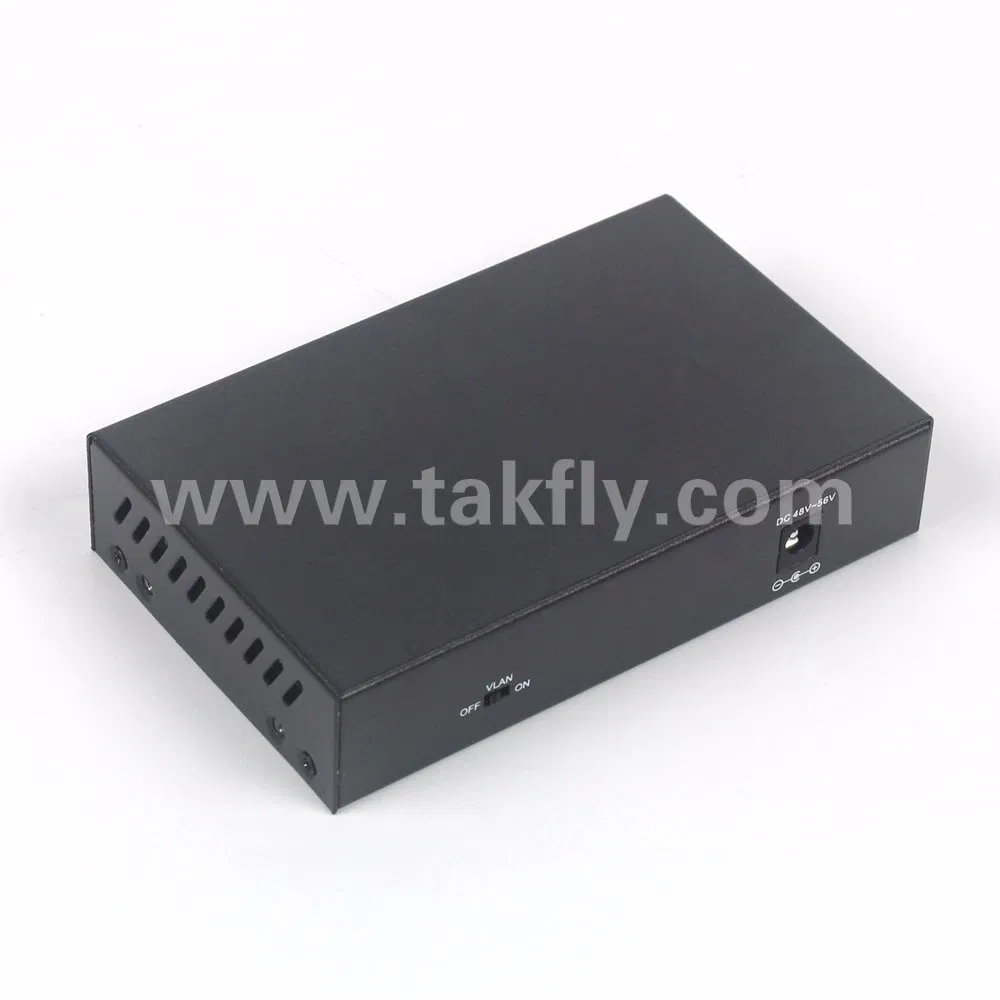

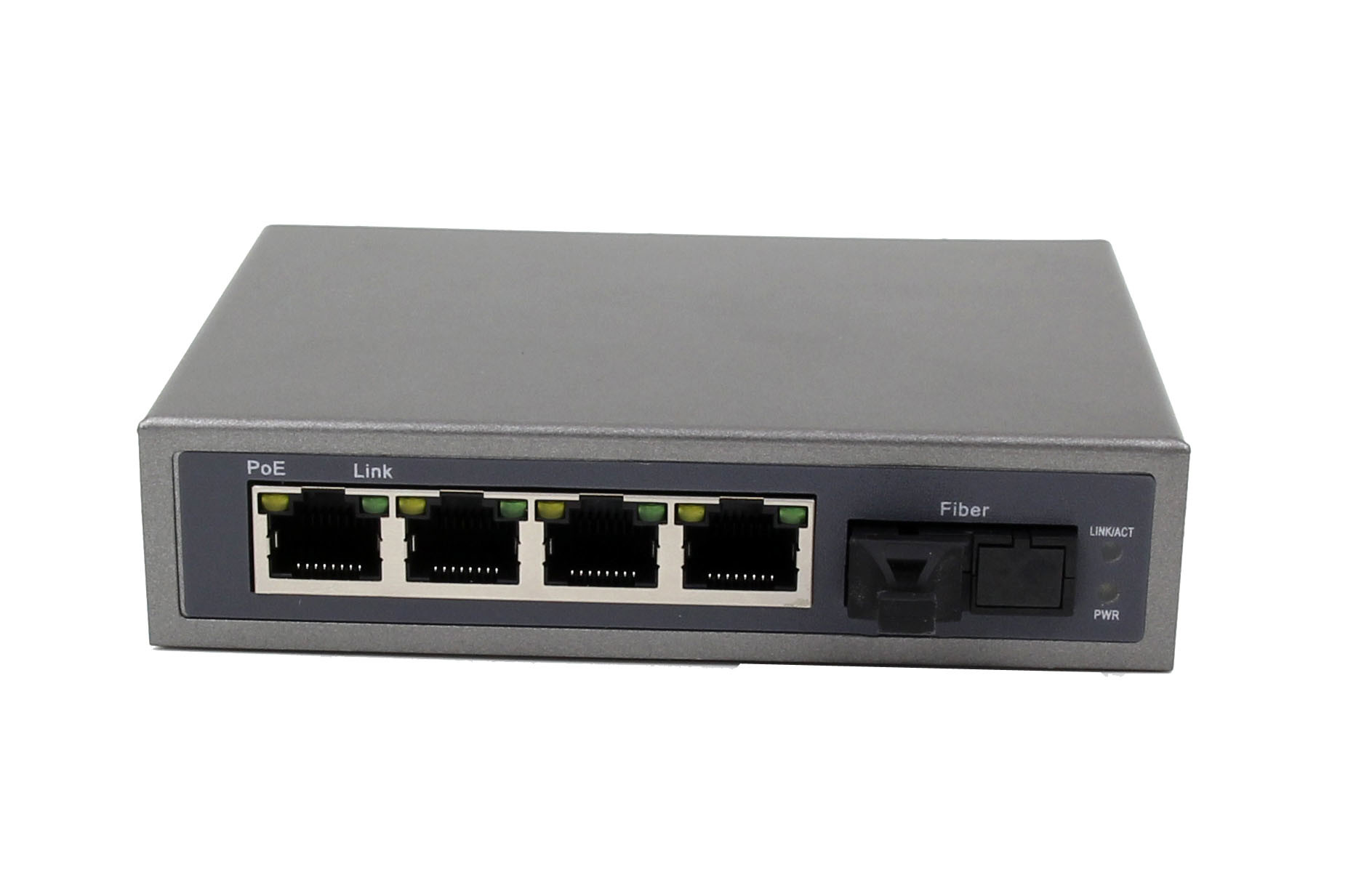

100M Fast 60W High Power 4 Port Poe Network Switch
100m 60W high power 4 Port Poe network SwitchThis Optical POE switch is a high power reliable standard IEEE802.3af 4 port POE switch.It provides 5 10/100mbps auto-sensing rj45 port,4 of which comply with IEEE802.3af/at poe,each poe port output max 30w,total poe power 65w max.Power supply 52v 1.25a,D......
Send Inquiry
Product Description
100m 60W high power 4 Port Poe network Switch
This Optical POE switch is a high power reliable standard IEEE802.3af 4 port POE switch.It provides 5 10/100mbps auto-sensing rj45 port,4 of which comply with IEEE802.3af/at poe,each poe port output max 30w,total poe power 65w max.Power supply 52v 1.25a,DC voltage 48-57v wide range.
This 4 port poe switch is compatible with most brands of cctv security ip cameras.The poe distance is up to 250m long distance according to our factory real long time test,by loading 4pcs hd 1080p ip cameras.
Features
IEEE 802.3af power on up to 4 ports
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
4x 10/100 Mbps Ports with AutoUplink™
The 5th port is optical fiber SC interface of 155 Mbps
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 65W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the PoE Switch ONV-POE31004PF with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply
Configuration
RJ45 Port:Auto-negotiation, 10/100Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5# with operation distance of less than 100 meters
100Base-FX Optical Port:SC/ST/FC/LC,optional
Single-mode:20, 40, 60, 80, 100,120Km,optional
Multi-mode: 2, 5Km,optional
Wavelength: 850nm, 1310 nm, 1550nm
POE switch Power Input Options
Input Voltage: 48V DC (46~57VDC) ,Redundant power input
Overload Current Protection
Environmental Limits
-40ºC ~+ 50ºC( Wide Temperature)
Storage Temperature:-40ºC ~+ 70ºC
Humidity: 5%~95%
Spec

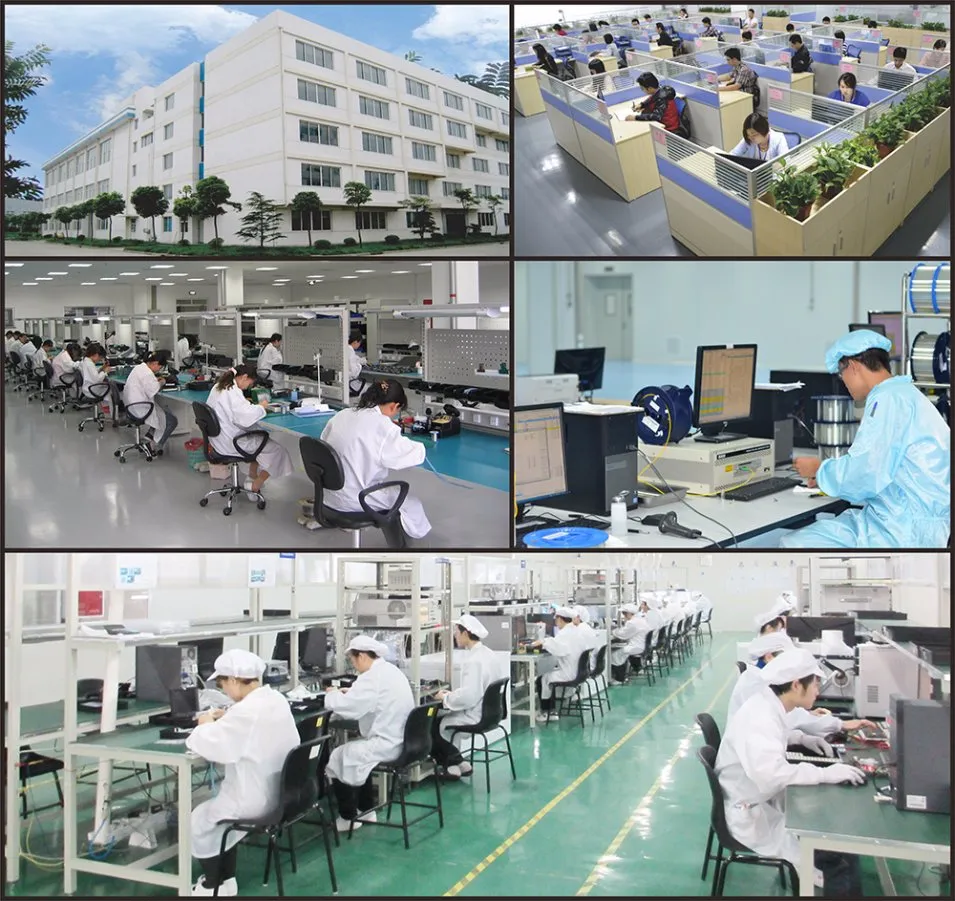

Factory view
Any query about 4 port high power optical poe switch,please leave me an inquiry or contact me directly.
This Optical POE switch is a high power reliable standard IEEE802.3af 4 port POE switch.It provides 5 10/100mbps auto-sensing rj45 port,4 of which comply with IEEE802.3af/at poe,each poe port output max 30w,total poe power 65w max.Power supply 52v 1.25a,DC voltage 48-57v wide range.
This 4 port poe switch is compatible with most brands of cctv security ip cameras.The poe distance is up to 250m long distance according to our factory real long time test,by loading 4pcs hd 1080p ip cameras.
Features
IEEE 802.3af power on up to 4 ports
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
4x 10/100 Mbps Ports with AutoUplink™
The 5th port is optical fiber SC interface of 155 Mbps
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 65W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the PoE Switch ONV-POE31004PF with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply
Configuration
RJ45 Port:Auto-negotiation, 10/100Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5# with operation distance of less than 100 meters
100Base-FX Optical Port:SC/ST/FC/LC,optional
Single-mode:20, 40, 60, 80, 100,120Km,optional
Multi-mode: 2, 5Km,optional
Wavelength: 850nm, 1310 nm, 1550nm
POE switch Power Input Options
Input Voltage: 48V DC (46~57VDC) ,Redundant power input
Overload Current Protection
Environmental Limits
-40ºC ~+ 50ºC( Wide Temperature)
Storage Temperature:-40ºC ~+ 70ºC
Humidity: 5%~95%
Spec
| Product Name | 5-Port 10/100M PoE Switch with 4 PoE Ports and 1 Fiber Port |
| Model | TK-PS20-01 |
| Connector Type | 5x 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX with 4 PoE Ports |
| Network Media | 10Base-T and 100Base-TX (≤150, Catalogue 5 cable) |
| Bandwidth | 1.6Gbps (Non-blocking) |
| Address Database Size | 1K |
| MTBF | 10000 hours |
| Forwarding Mode | Store-And-Forward Architecture |
| Network Protocols | IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| LED Display | Power, Ethernet Data, PoE working status |
| Power Supply | External Adpater (Input:AC100-240V 50/60Hz, Output:52V 1.25A) |
| PoE Ports | Port 1- 4 support PoE |
| PoE Port Power | 15.4Watts per port |
| PoE Standard | IEEE802.3af |
| PoE Feature | Automatic identification AF/AT |
| Power Consumption | 65W |
| Working Environment | Working temperature:-20°~ 55°C , Storage temperature: -40°~ 85°C,Working Humidity: 5%~95%, non-condensing |
| Certification | FCC Class A, CE, RoHS |
| Transmission Distance | Ethernet RJ45+POE:100M |
| Power Supply Type | 1/2+,3/6- (End-span);Optional order 4/5+,7/8- (Mid-span) |
| QoS | Yes |
| VLAN | No |
| Product Size | (LxWxH) 118 x 85 x 27mm, 0.36kg |
| Package Size | (LxWxH) 250 x 210 x 90mm, 1kg |
| Warranty | 1 Year for Switch. 2 Years for Adapter. Lifetime Maintenance |
Factory view
Any query about 4 port high power optical poe switch,please leave me an inquiry or contact me directly.
