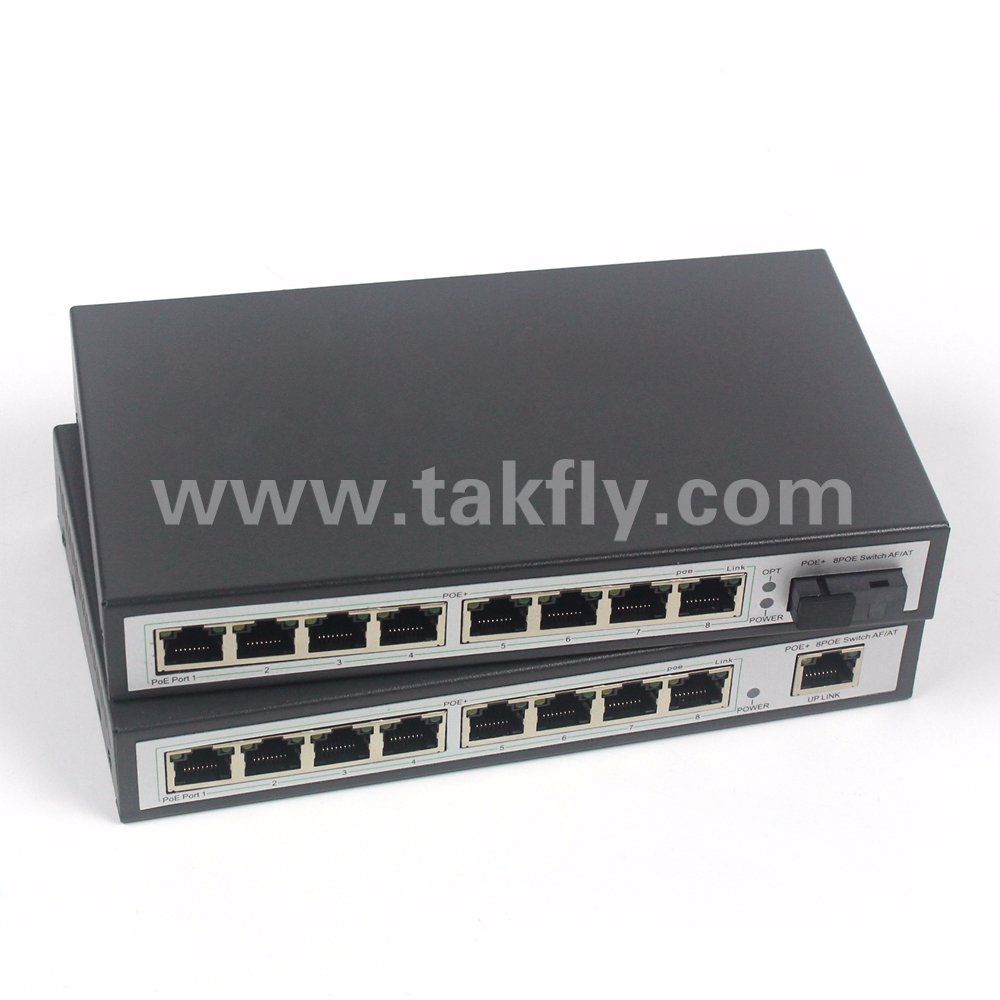

1.25g 8 Port Gigabit Ethernet Poe Switch (DF-1.25G-8P-1E)

DF-1.25G-8P-1E is a 10-Port Gigabit PoE Switch with 8 PoE Ports, 1 SFP Gigabit Uplink Optical Ports and 1 Gigabit RJ45 Uplink port, port 1 to port 8 supports PoE IEEE 802.3at international standard, each port power is 30W . Total power is 120W.
This POE network switch can meet customer's general demands. POE network switch with POE function, designed for high-definition network camera's internet access. It provides 8 1000Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices.
 1.Features

10-Port Gigabit PoE Switch with 8 PoE Ports, 1 RJ45 uplink, 1 SFP Gigabit Uplink Optical PortsSupply power to wireless access points AP and network IP surveillance cameras Port 1 to Port 8 supports IEEE802.3at power (each port maximum power is 30W)8x 10/100/1000 Mbps ports + 1RJ45 + 1x SFP gigabit optical uplink ports Compatible with IEEE 802.3 10i and IEEE 802.3u standardThe packet forwarding speed is 1.488Mbps of one wire-speed portPort features with auto-flip(Auto MDI/MDIX)Network port comes with lighting-proof  All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed Automatic adjustment, plug and play, no need software and protocol conversion

2.Highlights

No Frame Loss IP Data TransmissionPoE+ Standard 250m in One-key CCTV Mode10 KB Jumbo frames supportFew video time delay4KV Lightning Protection

3.Technical Specifications
Note:
If any changes with product specification, forgive without prior notice.
1) As transmission distance has certain relation with the cable, so you are suggested to use standard cat5e/6 cable for longest distance needed.4.V-lan6.1 Introduction
    When V-lan function is opened, the LAN port can't make data conversion but can only communicate via uplink port. The V-LAN workstation is built separately between every network port and UP-LINK port.
In the same V-lan workstation, no matter which actual PoE switch being connected, the signal transmission are separately isolated from each other which seems they are on the different switches. The broadcast in the same V-lan can only be received by the members but can't be transmitted into other V-lan, which can greatly control unnecessary broadcast storm. What's more, different V-lan can't even communicate with each other when there is no routing, which increases the safe degree among different department in the enterprise.
5.2 Configuration
   Toggle the V-lan button on the back of the switch to ON state, V-lan indicator lights, then press the reset button to restart the switch, in this way V-lan functions.
Note:
   Please press reset button or repower the device when turn on V-lan, only in this way the switch can enter corresponding mode.
