USB3.0 Super Speed Aoc Fiber Optic Cable USB Am/Af 50m Black
USB 3.0 A male to A female AOC Optical Fiber CableUSB 3.0 Cable A-Male to A-Female Active Extension Cable CordDescriptionUSB 3.0 (Compatible with USB 2.0) AOCThe USB 3.0 Active Optical Cable (AOC) is a USB 3.0 electrical to optical conversion module. This product can translate signals between USB 3.......
Send Inquiry
Product Description

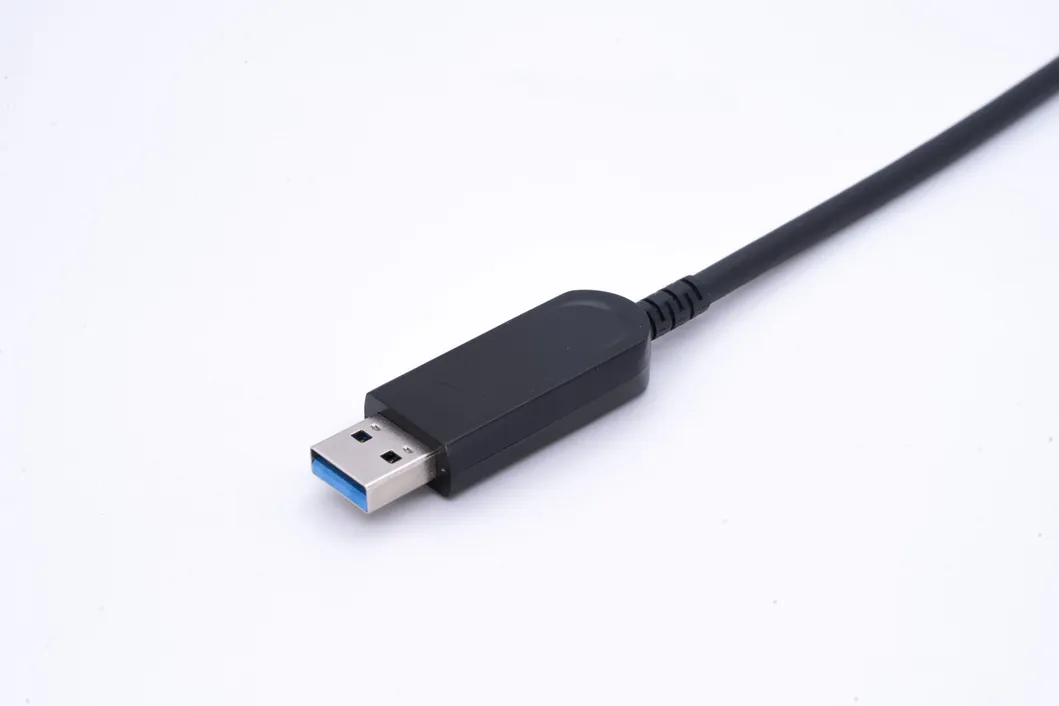

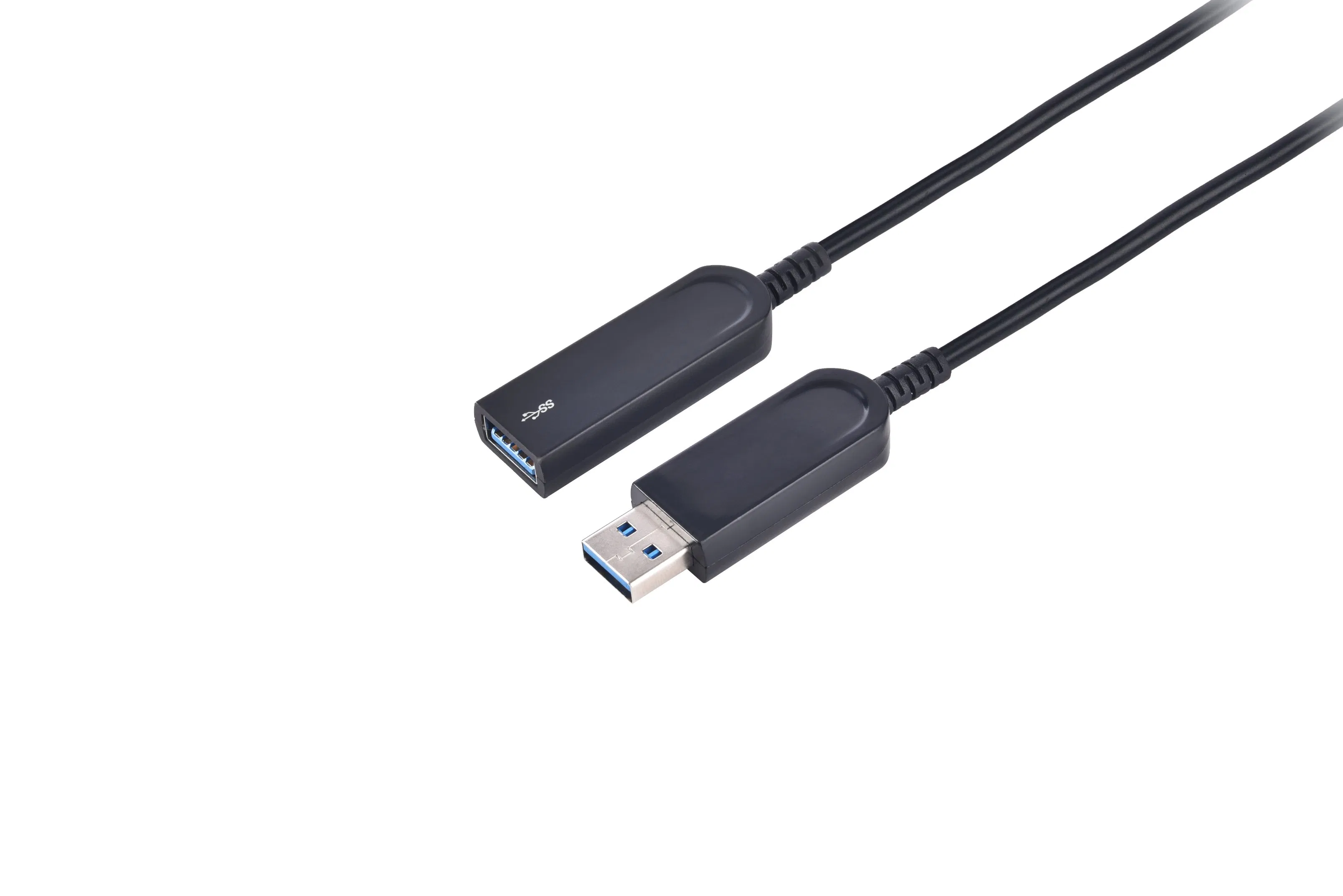

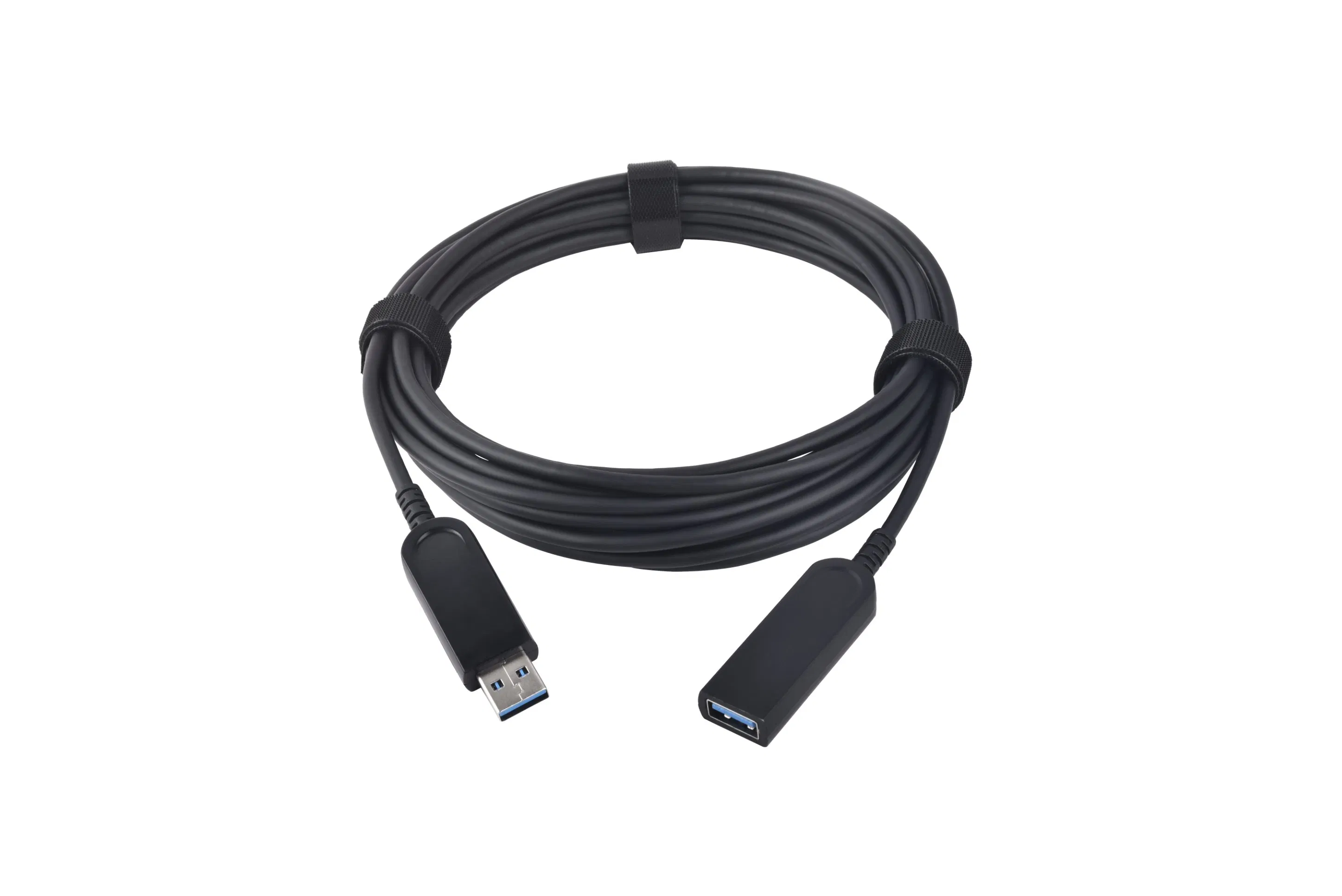

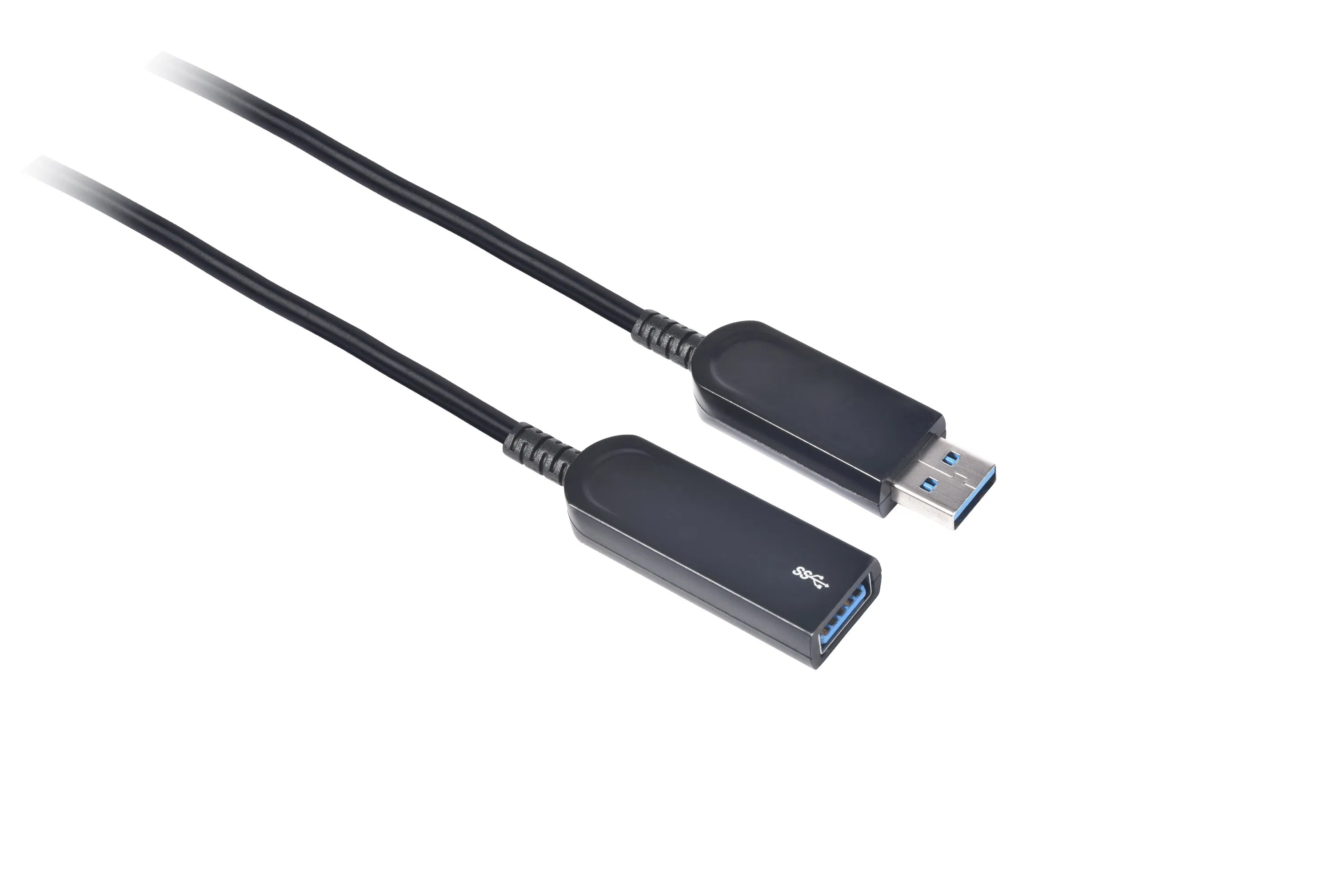

USB 3.0 A male to A female AOC Optical Fiber Cable
USB 3.0 Cable A-Male to A-Female Active Extension Cable Cord
Description
USB 3.0 (Compatible with USB 2.0) AOC
The USB 3.0 Active Optical Cable (AOC) is a USB 3.0 electrical to optical conversion module. This product can translate signals between USB 3.0 electrical and optical signals. AOC is a cabling technology that accepts the same electrical inputs as a traditional copper cable, but uses optical fiber"between the connectors". Ordinary USB3.0 active fiber cable's defect that can't supply power to device. AOC offer a quick solution to supply longer cable for USB3.0 application.The USB fiber cable length can be up to 50m with USB 3.0 version and also downward compatible with USB 2.0and USB 1.1 at USB Female Side. Chip technology is capable of realizing mutual conversion between USB3.0 and USB2.0 protocols on remote side device, so as to enable USB2.0 equipment to share the super speed bandwidth (5Gbps) of USB3.0.
KEY FEATURES
Extends USB 3.0 & USB 2.0 super speed devices up to 30 m
Supports all USB 3.0 device types at Host: control, interrupt, bulk and isochronous at up to 10 Gbps
Operates with USB 3.0 super speed host controllers
Supports Windowoperating systems
Number of devices can be increased using additional hubs
A substantial increase in USB2.0 device bandwidth with special technology
Power adapter at host is optional, can provide 5V 900mA power maximum to the remote device;
Ideal for a wire variety of USB devices, from printer, scanners, hard drives,and audio devices,
to touch screens, web cams, and game controllers
Applications
Industrial Control
Digital Signage
Home Network Integration
Medical Device Connectivity
KVM Extension
Remote Desktop USB 3.0 Connections
Security: web camera, access control
USB 3.0 Device Sharing: print, scan, storage
Specification:
Characteristics
USB 3.0 Cable A-Male to A-Female Active Extension Cable Cord
Description
USB 3.0 (Compatible with USB 2.0) AOC
The USB 3.0 Active Optical Cable (AOC) is a USB 3.0 electrical to optical conversion module. This product can translate signals between USB 3.0 electrical and optical signals. AOC is a cabling technology that accepts the same electrical inputs as a traditional copper cable, but uses optical fiber"between the connectors". Ordinary USB3.0 active fiber cable's defect that can't supply power to device. AOC offer a quick solution to supply longer cable for USB3.0 application.The USB fiber cable length can be up to 50m with USB 3.0 version and also downward compatible with USB 2.0and USB 1.1 at USB Female Side. Chip technology is capable of realizing mutual conversion between USB3.0 and USB2.0 protocols on remote side device, so as to enable USB2.0 equipment to share the super speed bandwidth (5Gbps) of USB3.0.
KEY FEATURES
Extends USB 3.0 & USB 2.0 super speed devices up to 30 m
Supports all USB 3.0 device types at Host: control, interrupt, bulk and isochronous at up to 10 Gbps
Operates with USB 3.0 super speed host controllers
Supports Windowoperating systems
Number of devices can be increased using additional hubs
A substantial increase in USB2.0 device bandwidth with special technology
Power adapter at host is optional, can provide 5V 900mA power maximum to the remote device;
Ideal for a wire variety of USB devices, from printer, scanners, hard drives,and audio devices,
to touch screens, web cams, and game controllers
Applications
Industrial Control
Digital Signage
Home Network Integration
Medical Device Connectivity
KVM Extension
Remote Desktop USB 3.0 Connections
Security: web camera, access control
USB 3.0 Device Sharing: print, scan, storage
Specification:
| Product Name | MF-3020 Series |
| Description | USB 3.0Active Optical Cable downward compatible with USB 2.0 |
| Connector | USB 3.0 Standard-A Male to A female plug |
| Max. data rate | 10.0Gbps |
| Range | 1650 ft(50 m) over multimode optical fiber |
| Optical Transceiver | 850 nm VCSEL (multimode) |
| Cable diameter | 4.5 mm |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F). |
| Humidity | 5% to 90% (non-condensing) |
Absolute Maximum Ratings
| Parameter | Symbol | Minimum | Maximum | Units |
| Supply Voltage | VCC | -0.5 | 5.5 | V |
| Operating Temperature | Top | 0 | 70 | °C |
| Storage Temperature | Ts | -40 | 85 | °C |
| Storage Relative Humidity | Hs | 10 | 85 | %RH |
Recommended Operating Conditions
| Parameter | Symbol | Minimum | Typical | Maximum | Units |
| Supply Voltage | VCC | 4.75 | 5 | 5.25 | V |
| Operating Temperature | Top | 0 | 50 | °C |
Characteristics
| Parameter | Description | Minimum | Typical | Maximum | Units |
| VCC | Supply Voltage | 4.75 | 5 | 5.25 | V |
| IBUS | Current at USB Bus Power | 49.5 | 55 | 60.5 | mA |
| RDIFF | Differential impedance | 90 | Ω | ||
| USB3.0 AOC TX Characteristic | |||||
| PTX | Optical TX output power | 0 | dBm | ||
| Rj | Random jitter | 3 | ps | ||
| Dj | Deterministic jitter | 60 | ps | ||
| Tj | Total jitter at a 10-12 BER | 100 | ps | ||
| USB3.0 AOC RX Characteristic | |||||
| SRX | RX sensitivity | -7.5 | dBm | ||
| CAC-COUPLING | AC coupling capacitor on RXOUT | 75 | 100 | 200 | nF |
Besides, we have long AOC optical fiber HDMI Cable:
