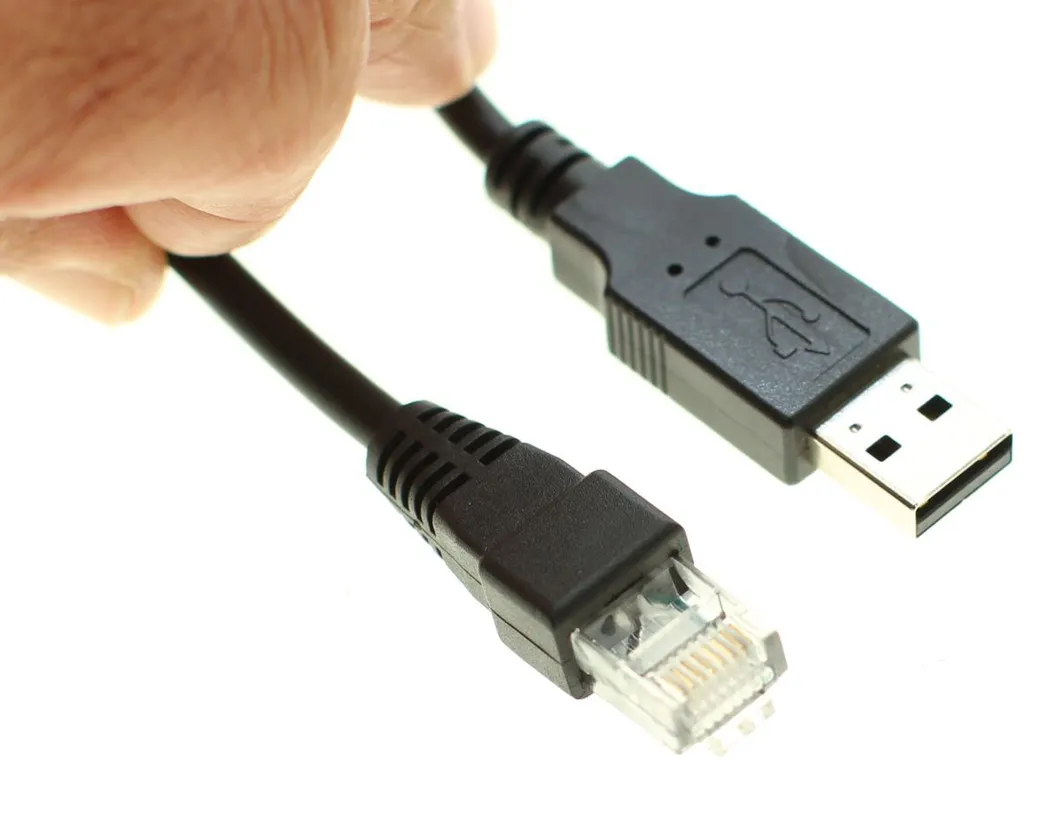

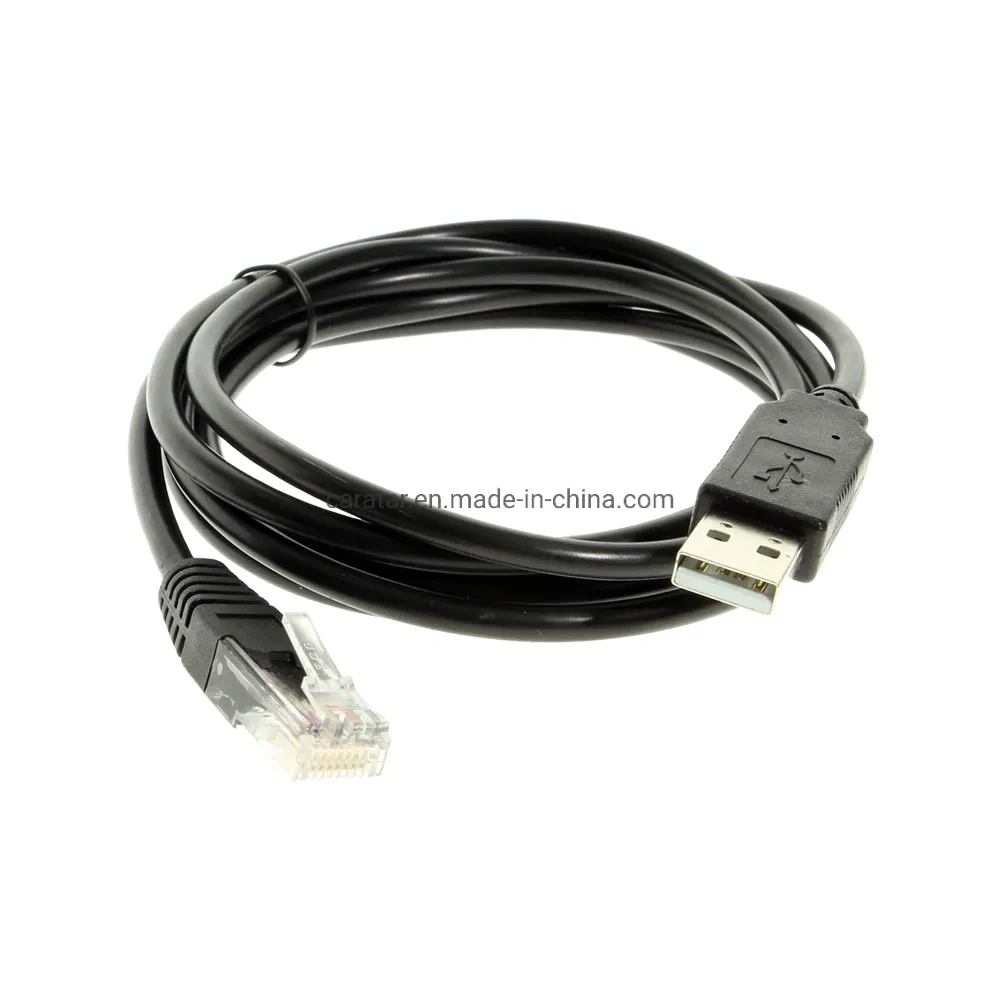

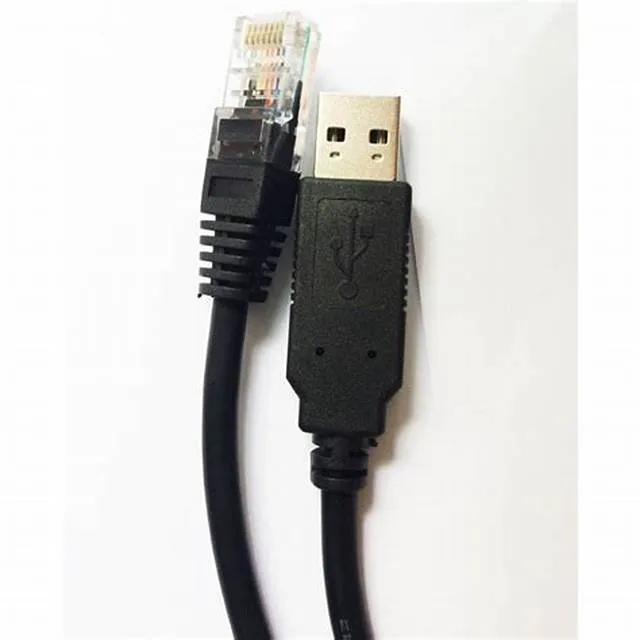

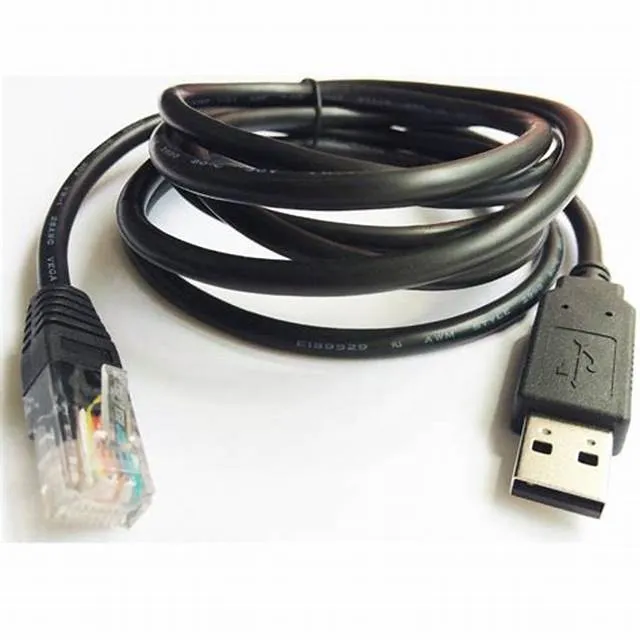

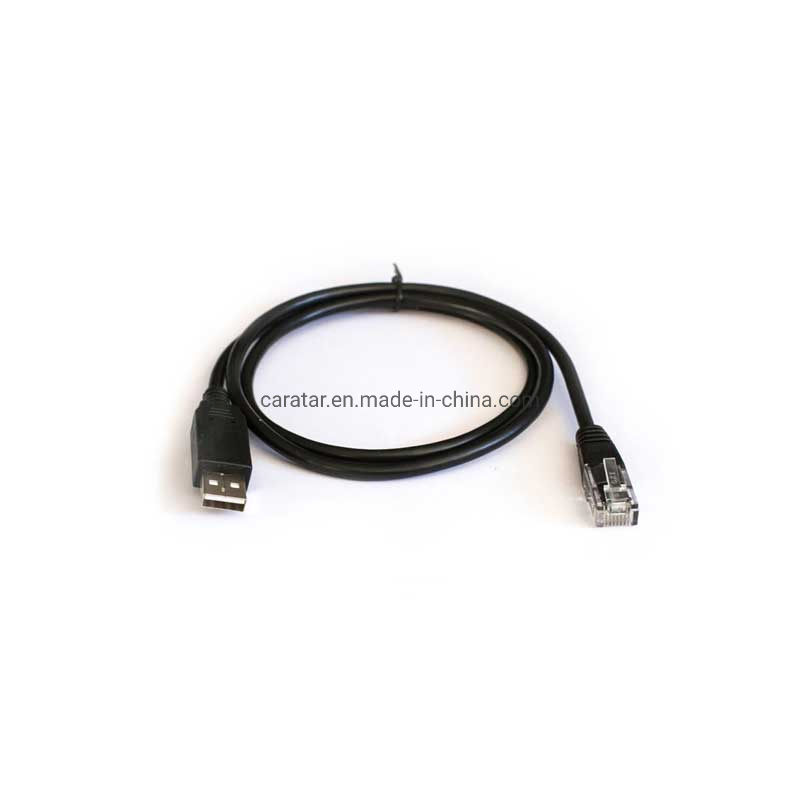

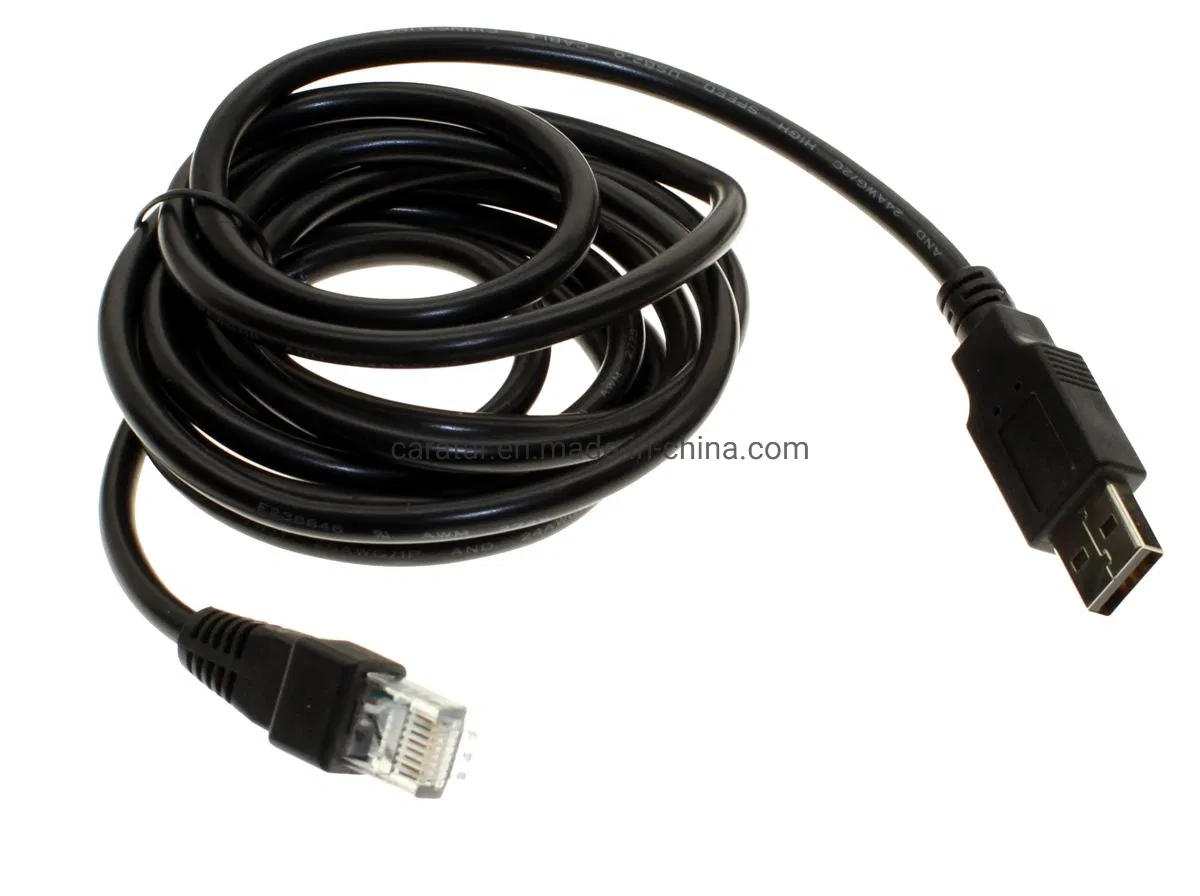

USB RS232 to RJ45 6p6c 8p8c 10p10c for Communication Scanner Cable
1.The RJ45 connector can also be adapted to DB9 via RJ45-to-DB9 adaptors.2.This USB cable has an embedded FTDI 232 and RS232 level shifter to produce true RS232 levels.3.USB to Serial cable, RJ45 presentation and pinouts for direct connection to Cisco and other network equipment serial console ports......
Send Inquiry
Product Description
1.The RJ45 connector can also be adapted to DB9 via RJ45-to-DB9 adaptors.
2.This USB cable has an embedded FTDI 232 and RS232 level shifter to produce true RS232 levels.
3.USB to Serial cable, RJ45 presentation and pinouts for direct connection to Cisco and other network equipment serial console ports.
4.Pinouts for this cable RJ45 end are:
Pin1=CTS
Pin2=DSR
Pin3=RX
Pin4=Ground
Pin5=Ground
Pin6 = TX
Pin7 = DTR
Pin8 = RTS
5.Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS.
6. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity .
7.Supports hardware flow control used to implement the CISCO break sequence
8. USB 2.0 Full Speed compatible
FTDI ft232rl USB UART TTL 3.3v to rj45 converter cable
1.USB to UART TTL cable.
2.USB UART TTL converter cable.
3.USB UART serial TTL adapter cable.
4.FT232R chip, support D2XX, VCP driver.
5.Support Android, Support Win 8, Win 10, Win 7, XP, 2000, Linix, Mac OS,etc.
6.Support FTDI standard drivers.
7.RX/TX/CTS/RTS/VCC/GND, VCC=5v.
8.TTL(RX/TX) +3.3v signal level.
9.USB TTL TO RJ45 8P8C CABLE.
10.Standard one is 4 core 28AWG cable, 6 core, 8 core 28AWG cables are optional.
| Quality Control | have a QC director leading all IQC, IPQC, FQC, OQC, SQA, and QE |
| Insulation resistance | 10 OHM min |
| Conductive resistance | 2 ohm max |
| Voltage | DC300V 5M ohm/10ms |
| Working Temperature | -25C-80C |
This convenient serial to USB to RS232 console cable enables you to connect your PC directly to the console port of your Cisco or similar router.
- Two cables in one, Less clutter in your network tool bag!
- Combines a USB to serial/RS232 converter and a console 'rollover' cable for Cisco routers
- Configure your router with just one cable, direct from a USB port
- Length approx 1.7m/5ft 6ins (if required, you can add a USB extension cable up to a total of 5m long)
- Maximum RS232 speed 500kbaud
- USB 2.0 (1.1 compatible)
Product Features:
1.The RJ45 connector can also be adapted to DB9 via RJ45-to-DB9 adaptors.
2.This USB cable has an embedded FTDI 232 and RS232 level shifter to produce true RS232 levels.
3.USB to Serial cable, RJ45 presentation and pinouts for direct connection to Cisco and other network equipment serial console ports.
4.Pinouts for this cable RJ45 end are:
Pin1=CTS
Pin2=DSR
Pin3=RX
Pin4=Ground
Pin5=Ground
Pin6 = TX
Pin7 = DTR
Pin8 = RTS
5.Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS.
6. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity .
7.Supports hardware flow control used to implement the CISCO break sequence
8. USB 2.0 Full Speed compatible
_____________________________________________________________________________
Benefits:
1.No more cables & adapters to buy and/or make to get it working
2.No more DB-9 Adapters
3.No more Mickey Mouse Prolific driver problems
4.No more fake Prolific chips
32 and 64 bit operating systems are both supporter
