USB 3.0 a Male to Micro B Cable with Screw for Industrial Camera
USB 3.0 A Male To Micro B With Locking Screws Cable For Industrial Camera Description:Himatch's USB3.0 vision camera link cables are built of plenum rated USB 3.0 shielding cable with USB 3.0 A plug and Micro B plug, Angle right/ Angle left, .. straight type , USB 3.0 cables are up to 10 times f......
Send Inquiry
Product Description

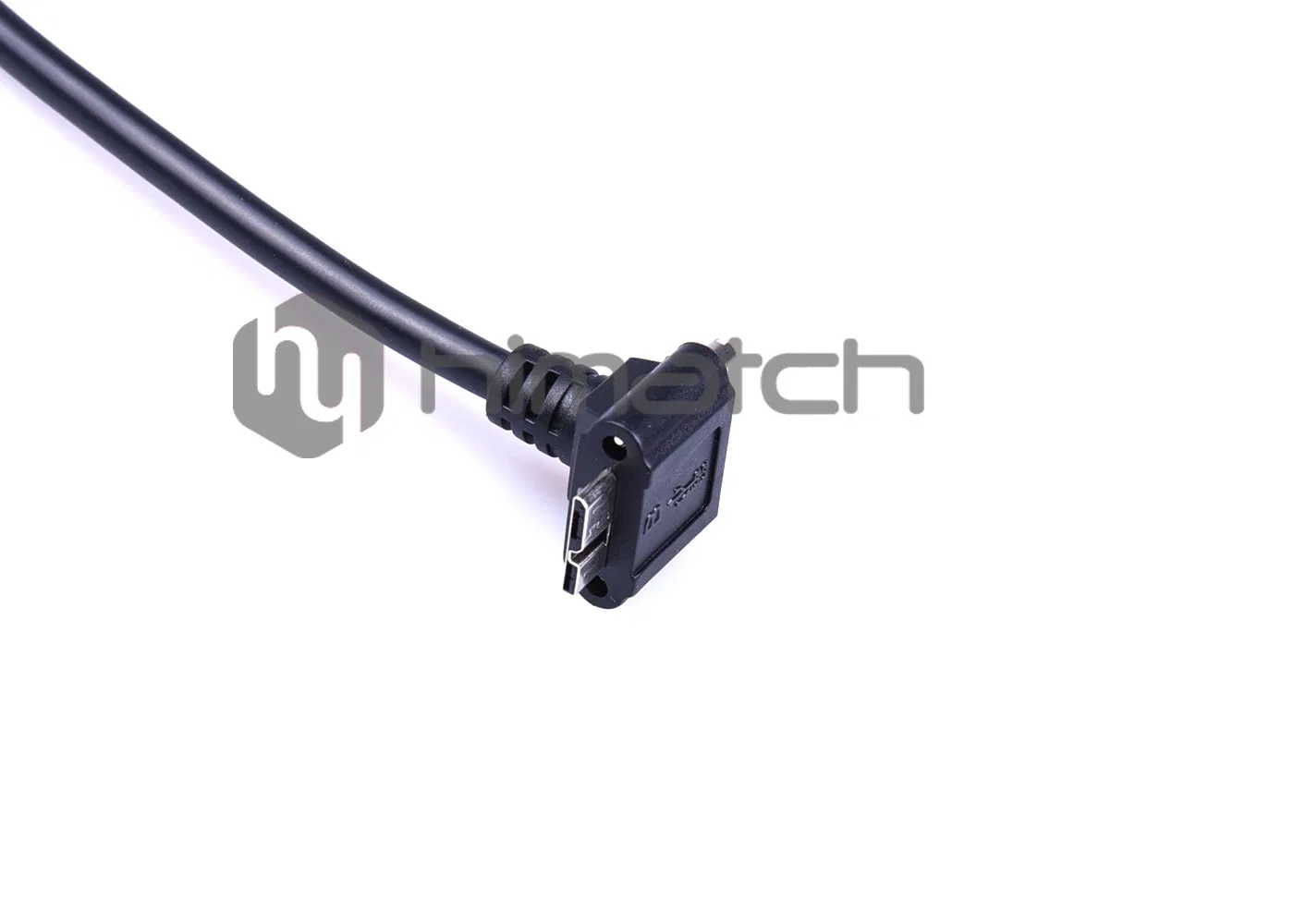

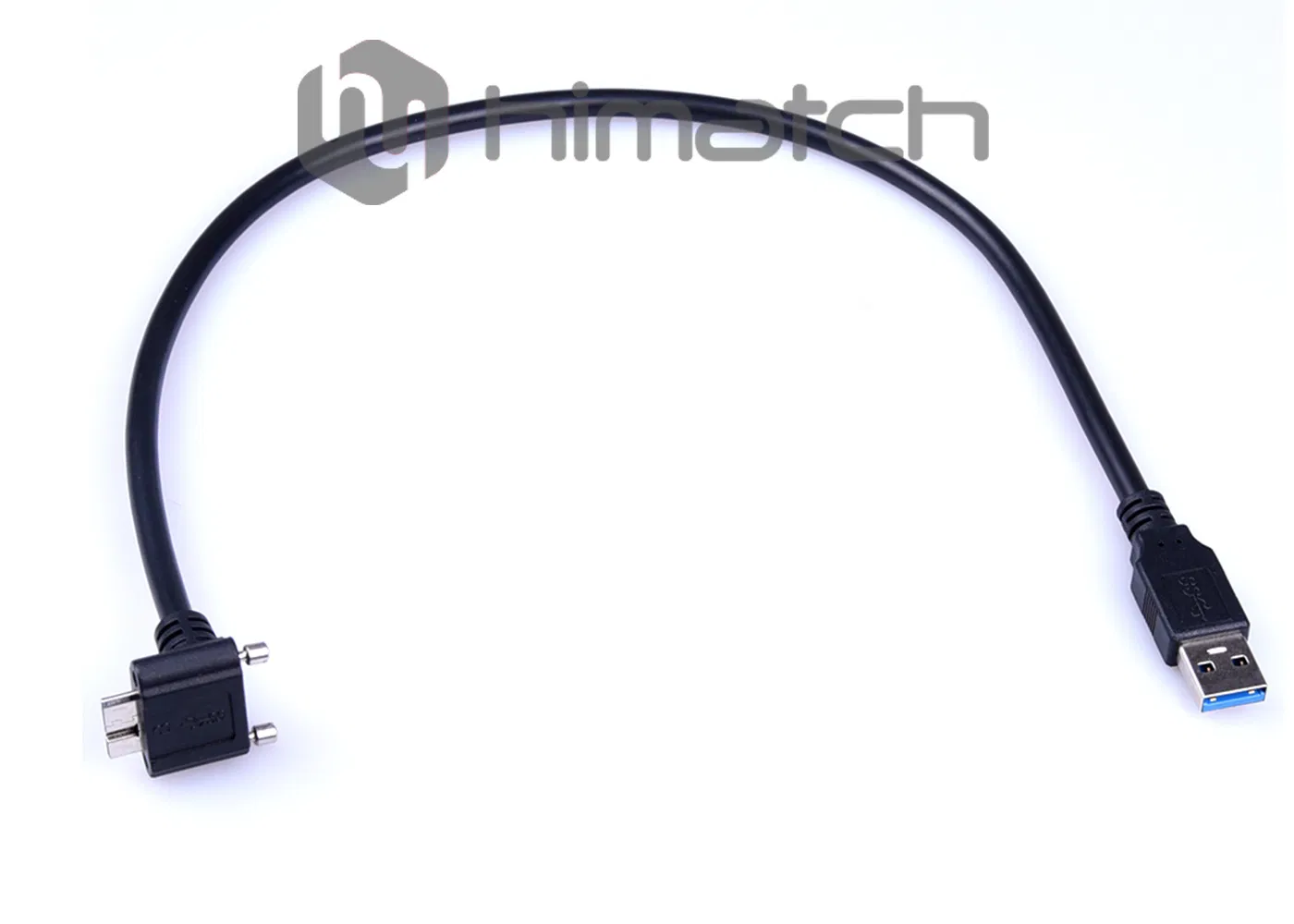

USB 3.0 A Male To Micro B With Locking Screws Cable For Industrial Camera
Description:
Himatch's USB3.0 vision camera link cables are built of plenum rated USB 3.0 shielding cable with USB 3.0 A plug and Micro B plug, Angle right/ Angle left, ….. straight type , USB 3.0 cables are up to 10 times faster than USB 2.0 - 4.8 Gbps versus 480 Mbps. The increased bandwidth substantially reduces the time required for transferring large amounts of data or video.
Specification:
| Brand | Himatch | Model No. | See Code | Conductor: | Tinned copper |
| Cable: | 9 cores | Wire: | 28AWG | Insulation: | FMPE/HDPE |
| Jacket: | PVC | Cable OD: | 5.6mm | Color: | Black |
| Cable shape | Round | Using for | CCD Camera | Verified: | CE, FC, UL |
| Voltage: | 80V | Bending: | 5-10 Millions | OEM/ODM: | Available |
Features
USB 3.0 Cable compatible with data transfer rate of 5Gbps
Double aluminum foil shielding, strong anti-interference ability
Uploads and downloads are kept on separate data lanes
USB 3.0 Cable Supports Full-duplex Data Transmission
Heavy-duty 28AWG copper wires provide minimal insertion loss
usb cable 3.0 Retains the Plug and Play Feature and is Fully Compatible with USB 2.0
RoHS and CE compliant
Application
frame grabber
Industrial CCD scaner
Industrial vision inspection system
Machine vision connection
