Super Speed 5gbps USB3 a to Micro B Right Angle Cable with Recessed Screws for Moving System

Product Description

Industrial USB 3.0 Camera Cable , The Micro B Right Exit With Recessed Screws

Description:

This is Hiflex cable specially designed for industrial application, for connecting vision cameras with USB 3.0 interfact to imaging fram grabbers or industrial computers.

Specification:

Brand	Himatch	Model No.	See Code	Conductor:	Tinned copper
Cable:	9 cores	Wire:	28AWG	Insulation:	FMPE
Jacket:	PVC	Cable OD:	5.8mm	Color:	Black/Yellow
Cable shape	Round	Using for	USB3.0 Camera	Verified:	UL,CE
Voltage:	80V	Bending:	5-10 Millions	OEM/ODM:	Available

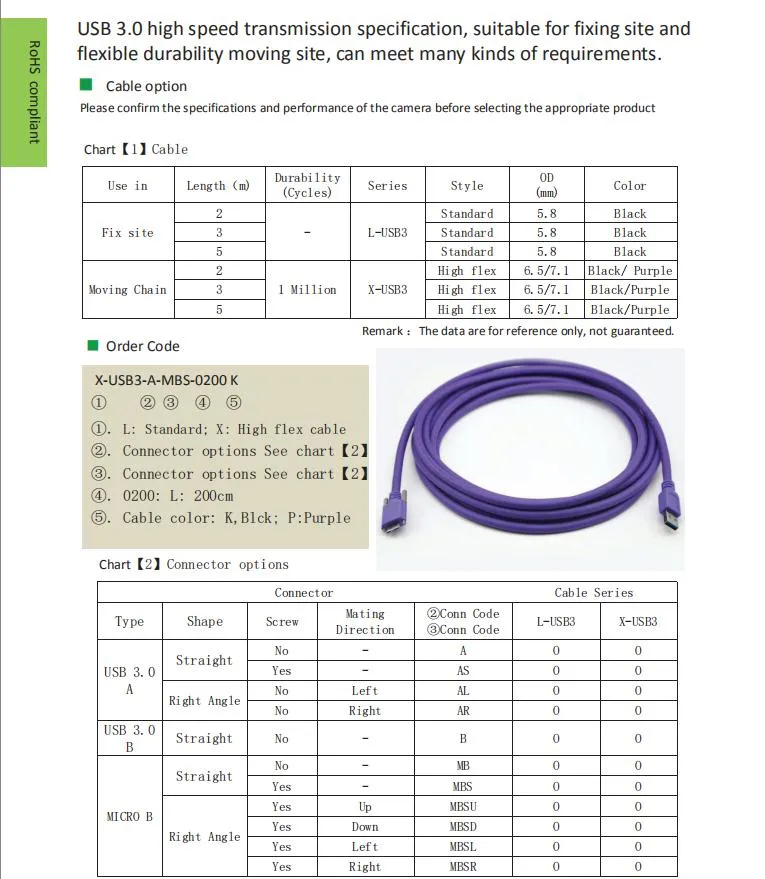

High Flex USB cable have below type available:

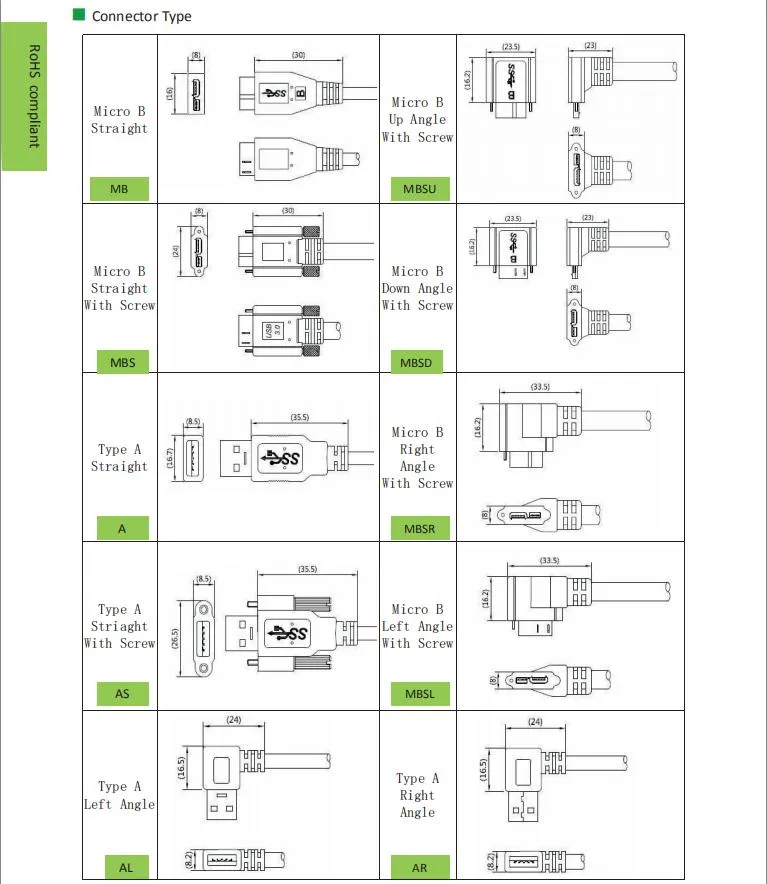

Connector Orientation	USB	Description
Right Angle	screw lock	Dual 90 degree USB 4P A male with Screw Cable
Right Angle	plug	USB 4P B male 90 degree Cable
Right Angle	USB A	USB 4P A male 90 degree Cable
Right Angle	Micro USB B	Micro USB 5P B male 90 degree Cable
180 straight	USB B	USB 4P B male with Screw type Cable

Features

100% electronically tested for functionality

USB3 vision cable A to micro b with screw locking for machine vision application

High flex usb3.0 cable for movable device like AOI, chain system ect.

With gold-plated copper contacts to minimize data loss

Foiled and braided shield complies with fully rated cable specifications

Application

machine vision
medical imaging
aerospace
Industrial Control
Factory Automation
Digital Camera Cables are primarily used in machine vision applications for the connection
Use in other LVDS signaling applications is also possible.

Customized Cable Length: 0.3 - 10m ( 5.1-10m with Booster)
