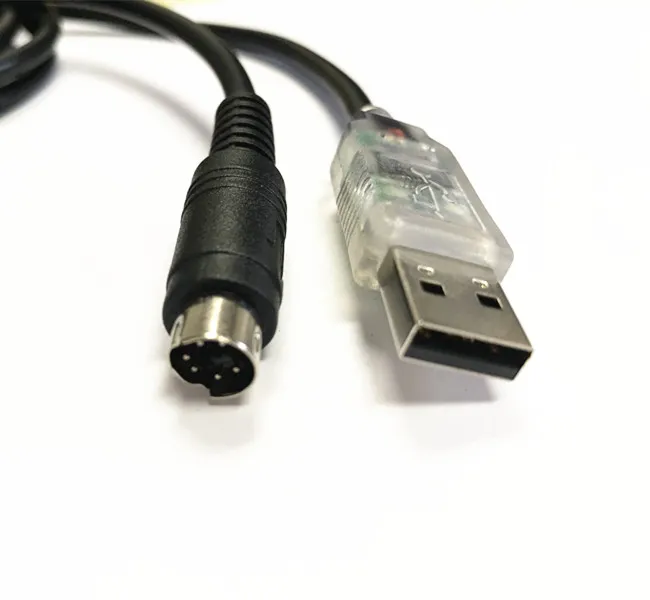

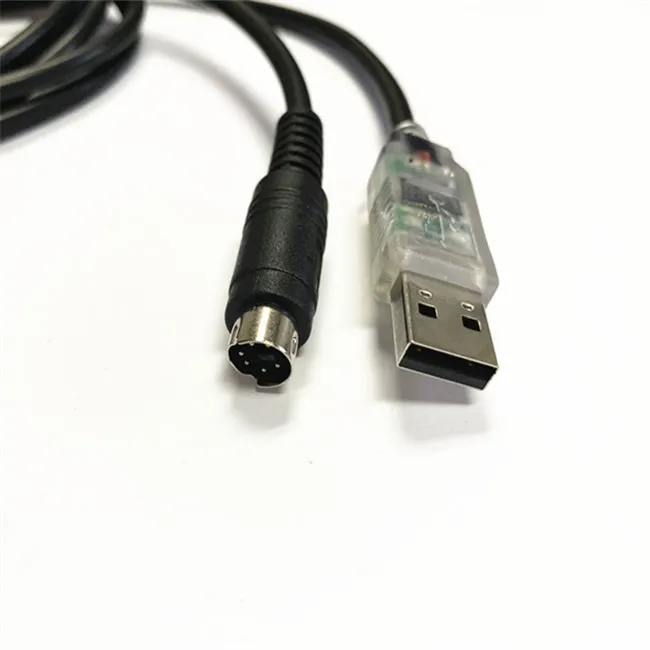

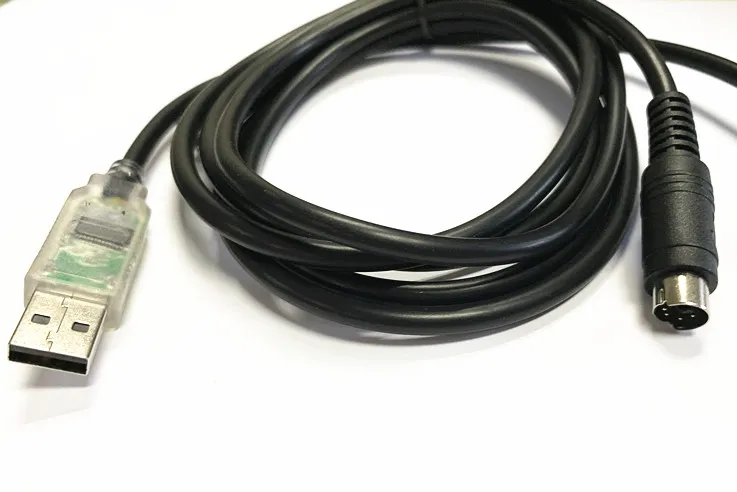

FTDI Chipset USB RS232 to Mini Din 6pin 8Pin Serial cable

FX A series PLC 6pin 8 pin DIN program cable

Product Description

This is USB RS232 cable, signals as PC COM port, not UART TTL signals.

1.USB2.0 standard.

2.FTDI FT232R for USB UART signals converter, ZT213 for TTL to RS232 signals shift.

3.On-board signals: TXD, RXD, CTS, RTS, GND, VCC 5v, DSR, DTR, DCD, RI optional

4.We have 3 core, 4 core, 6 core cable for DIN 6P or 3P connecting.

5.Pinout is customized, no standard pinout

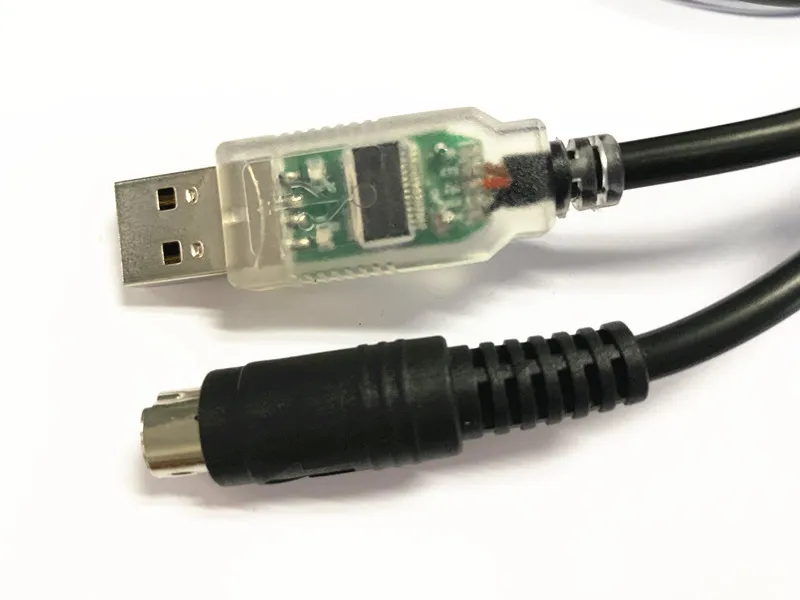

6.Overmolded FTDI chip provides single chip USB to asynchronous serial data transfer interface.

7.Compatible with all Windows and Mac OS systems.

Name	usb to rs232 converter wire end cable
Model	CA-RS-DINPIN
IC	FT232RL+ZT213
PC Interface	USB 2.0
Device Interface	RS-232
Cable Material	Copper wire
Cable Size	0.35m,0.5m,1.5m,1.8m,3m can be optional
Transfer Rate	Standard RS-232 transfer rate
Color	black or customized
Device Support	RS-232 Interface
Package List	Cable, CD Driver is optional
System Requirements	Windows7,Windows8/Vista/XP/2000/ME/98SE Linux Mac OS 8.6 or higher
Application Area	USB Smart Card Readers,ISDN terminal adapter,Bar code scanner,USB Hardware Modem,PDA-USB data transfer,etc

Mitsubishi PLC Programming Cable Replacement USB USB Cable for Mitsubishi MELSEC FX and A series PLC. 8 pin DIN connector and DB-25 connector. PLEASE DOWNLOAD driver here at website before purchase. Does not come with driver. Supports
ONLY: Windows 98/ME/2000/XP. Designed for computers without a serial port. This cable is an OEM replacement and not made by Mitsubishi/Beije
