Product Description

ftdi micro usb console cable for H3C Juniper cisco router huawei routers
6ft length
New arrival black slim cable for replacingcab-console-rj4572-3383-01 console cable console port router
console kable
ftdi chip

ftdi usb rs232 rj45 serial console cable for Cisco H3C HP Arba 9306 huawei router rollover console adapter,console kabels

Name	USB RS232 wire end cable
Model	CA-001
IC	FT232RL
PC Interface	USB 2.0
Device Interface	RS-232
Cable Material	Copper wire
Cable Size	0.35m,0.5m,1.5m,1.8m,3m can be optional
Transfer Rate	Standard RS-232 transfer rate

USB2.0, USB1.1 compatible
USB RS232 serial console cable

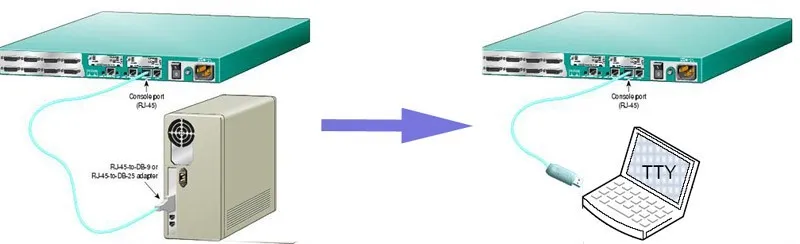

USB serial COM port to RJ45 male for router setting and controlling
FTDI chip
Pin assignment at USB RS232-RJ45 male cable side:

1-CTS,

2-DSR,

3-RXD,

4-GND,

5-GND,

6-TXD,

7-DTR,

8-RTS

Flat cable, 28AWG*8 core, bare copper. 1.8m
Win 7, Win 8, Win 8.1, win10 free driver installing
Supports hardware flow control used to implement the CISCO break sequence
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd /
USB 2.0 Full Speed 12M
Support Android, Support Win 8, Win 7, win10, , Linux. Win CE, Mac OS
Intergrated 1024 byte EEPROM, support Vendor ID re-write,support Mprog3.5
Support FTDI VCP driver and D2XX driver
Updating for cisco db9 RJ45 console cable
PE bag for each.
Net weight: 66g/pcs
CE, RoHS compliance.

Typical application

    USB to RS232/RS422/RS485 Converters
    Upgrading Legacy Peripherals to USB
    Cellular and Cordless Phone USB data transfer cables and interfaces
    Interfacing MCU/PLD/FPGA based designs to USB
    USB Audio and Low Bandwidth Video data transfer
    PDA to USB data transfer
    USB Smart Card Readers
    USB Instrumentation
    USB Industrial Control
    USB MP3 Player Interface
    USB FLASH Card Reader and Writers
    Set Top Box PC - USB interface
    USB Digital Camera Interface
    USB Hardware Modems
    USB Wireless Modems
    USB Bar Code Readers
    Dedicated Charger Port (DCP) detection enabling battery charging at higher current for faster charge times.

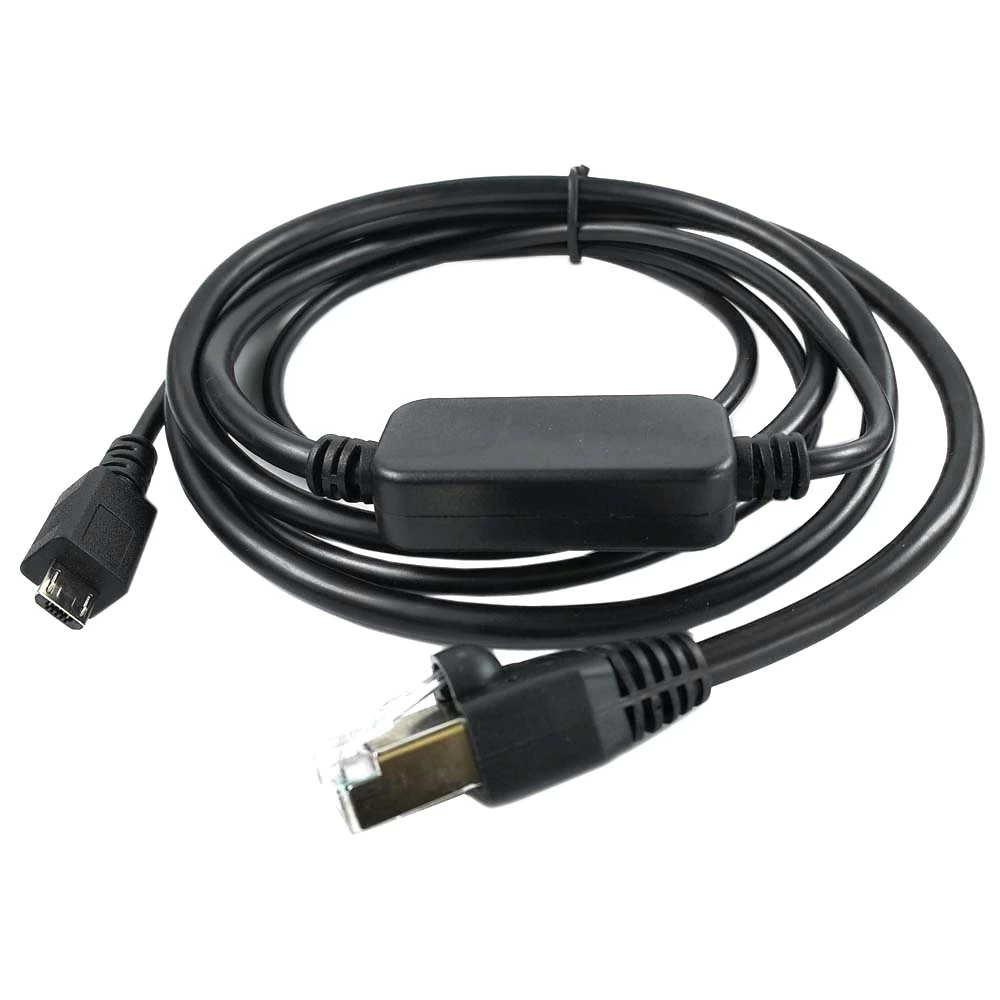

Ftdi 6FT Micro USB RS232 to RJ45 Console Cable for H3c Juniper Cisco Router Huawei Routers
