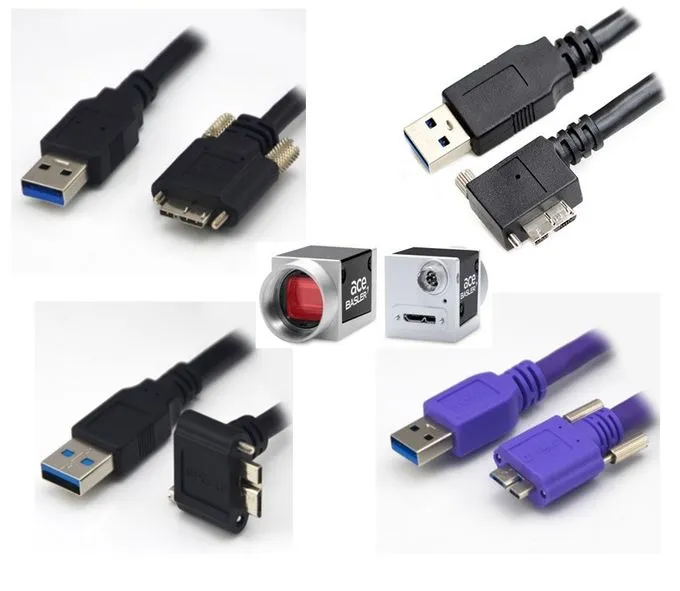

5m U3 Vision Cable A to Micro B 3G High transmit For Industrial Vision Cameras
Description:
USB 3.0 camera link is a machine vision standard specification using the USB 3.0 interface. It is a world standard specification set up by three standardization bodies, AIA-EMVANJIIA. Now many PC standard USB3.0 interface, it will become the standard camera interface in the future.

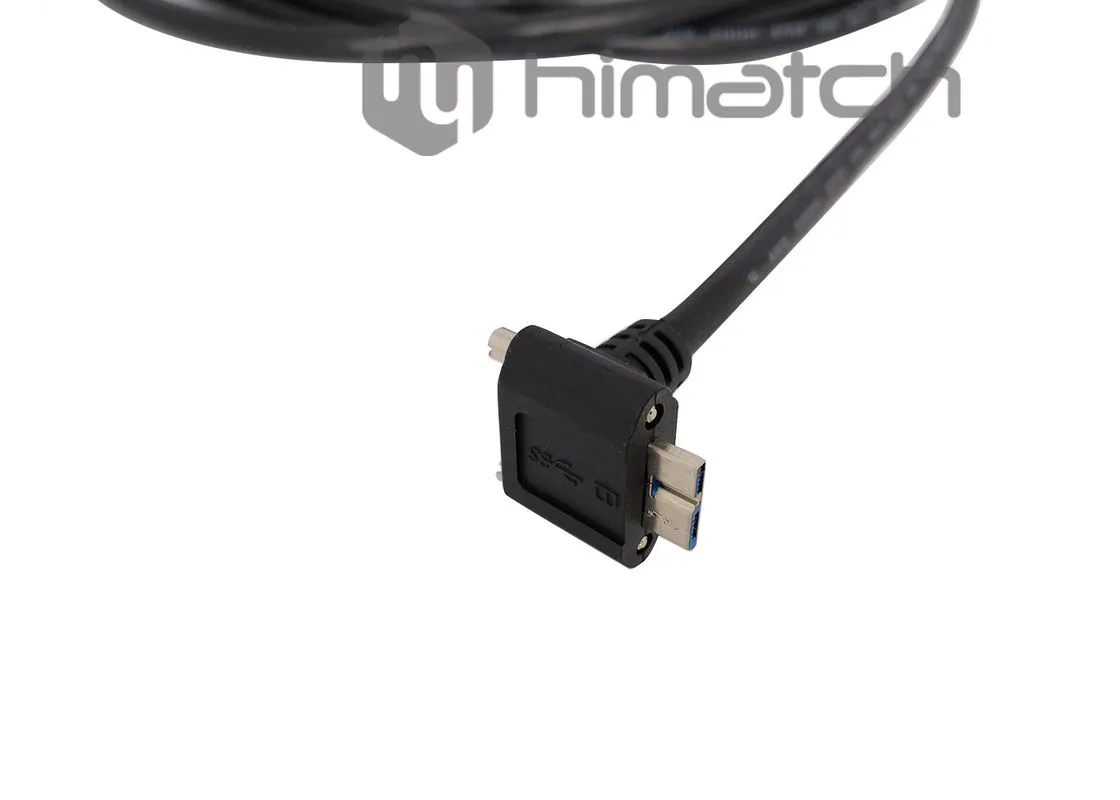

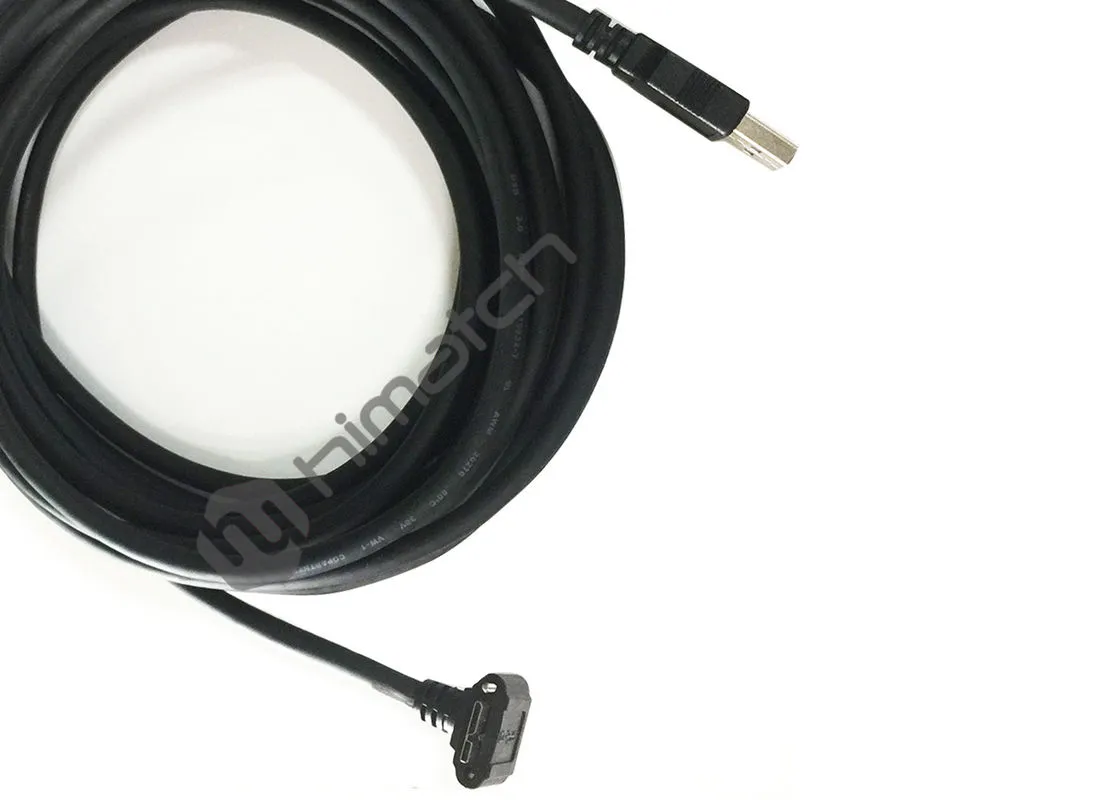

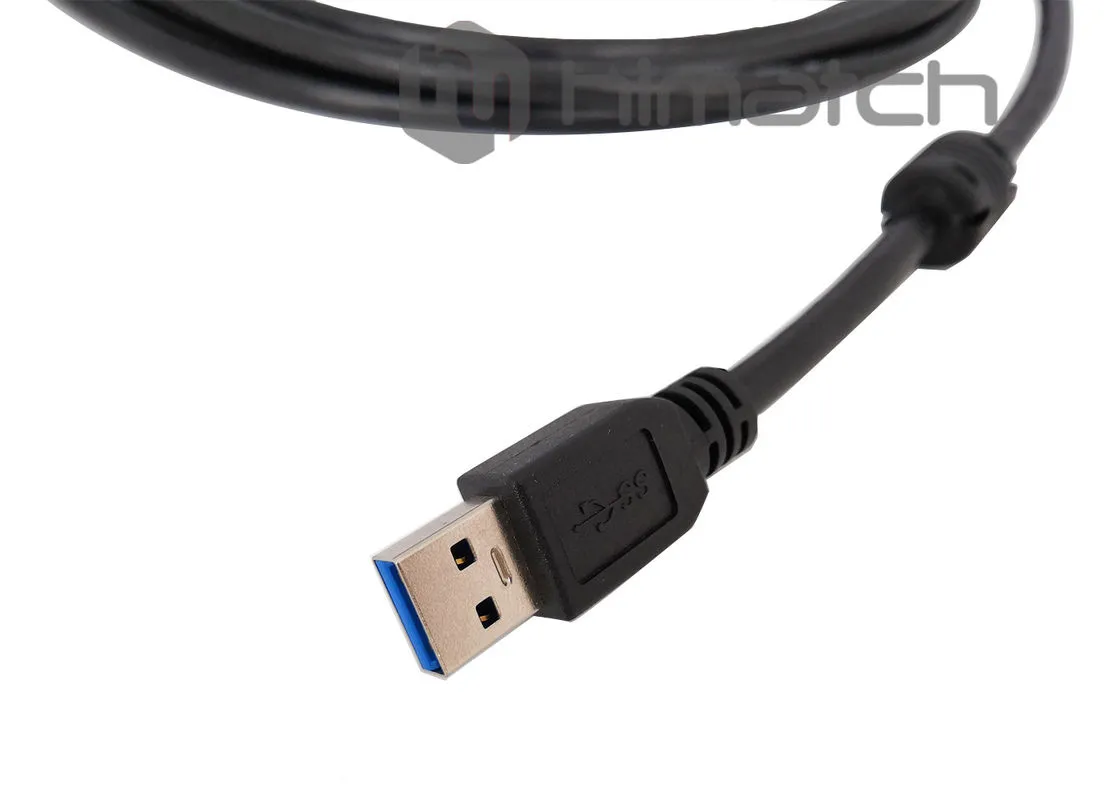

USB 3.0 camera link cable is constructed by high shield USB 3.0 high speed cable, assemblied with industrial level USB 3.0 A and Micro B connector at each end, Overall foil and braid shielded provides EMI/RFI protection , they offer outstanding quality, high performance for connecting vision cameras with USB 3.0 interfact to imaging fram grabbers or industrial computers.
| Use in | Length(m) | Durability (Cycles) | Series | Style | OD (mm) | Color |
| Fix site | 2 | - | L-USB3 | Standard | 6.0 | Black |
| 3 | Standard | 6.0 | Black | |||
| 5 | Standard | 6.0 | Black | |||
| Moving Chain | 2 | 1 Million | X-USB3 | High flex | 6.0/7.1 | Black/ Purple |
| 3 | High flex | 6.0/7.1 | Black/Purple | |||
| 5 | High flex | 6./7.1 | Black/Purple |
Specification:
| Brand | Himatch | Model No. | Conductor: | Tinned copper | |
| Cable: | 9 cores | Wire: | 26AWG | Insulation: | FMPE/HDPE |
| Jacket: | PVC | Cable OD: | 6.0mm | Color: | Black/Yellow |
| Cable shape | Round | Using for | CCD Camera | UL Verified: | Yes |
| Voltage: | 30V | Bending: | 5 Millions | OEM/ODM: | Available |
Features
Excellent transmission characteristics
Good material, environmental protectionLow loss, low crossing, low delay
Good impedance feature
Super speed up to 5Gbps
RoHS and REACH compliant
Application
frame grabber
Industrial CCD scaner
Application in semiconductor industry
Application of mechanical parts industry
Research and application of image processing and analysis
