5 Meters USB3 a to Micro B Down Angeled Cable with Screws for Industrial Camera
5 Meters 90 Degree Down Angled USB3.0 Micro B With Screws To USB 3.0 A Cable Description:Himatch's USB3.0 vision camera link cables are built of plenum rated USB 3.0 shielding cable with USB 3.0 A plug and Micro B plug, Angle right/ Angle left type , robust molding with thumbscrew locking , They......
Send Inquiry
Product Description

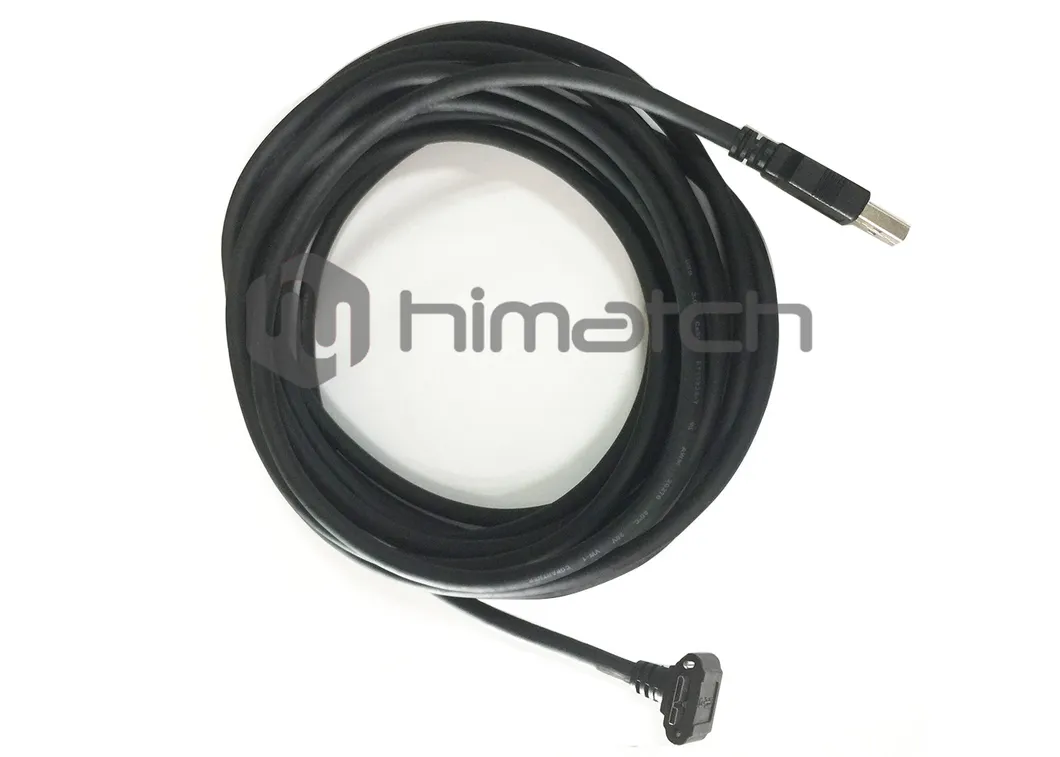

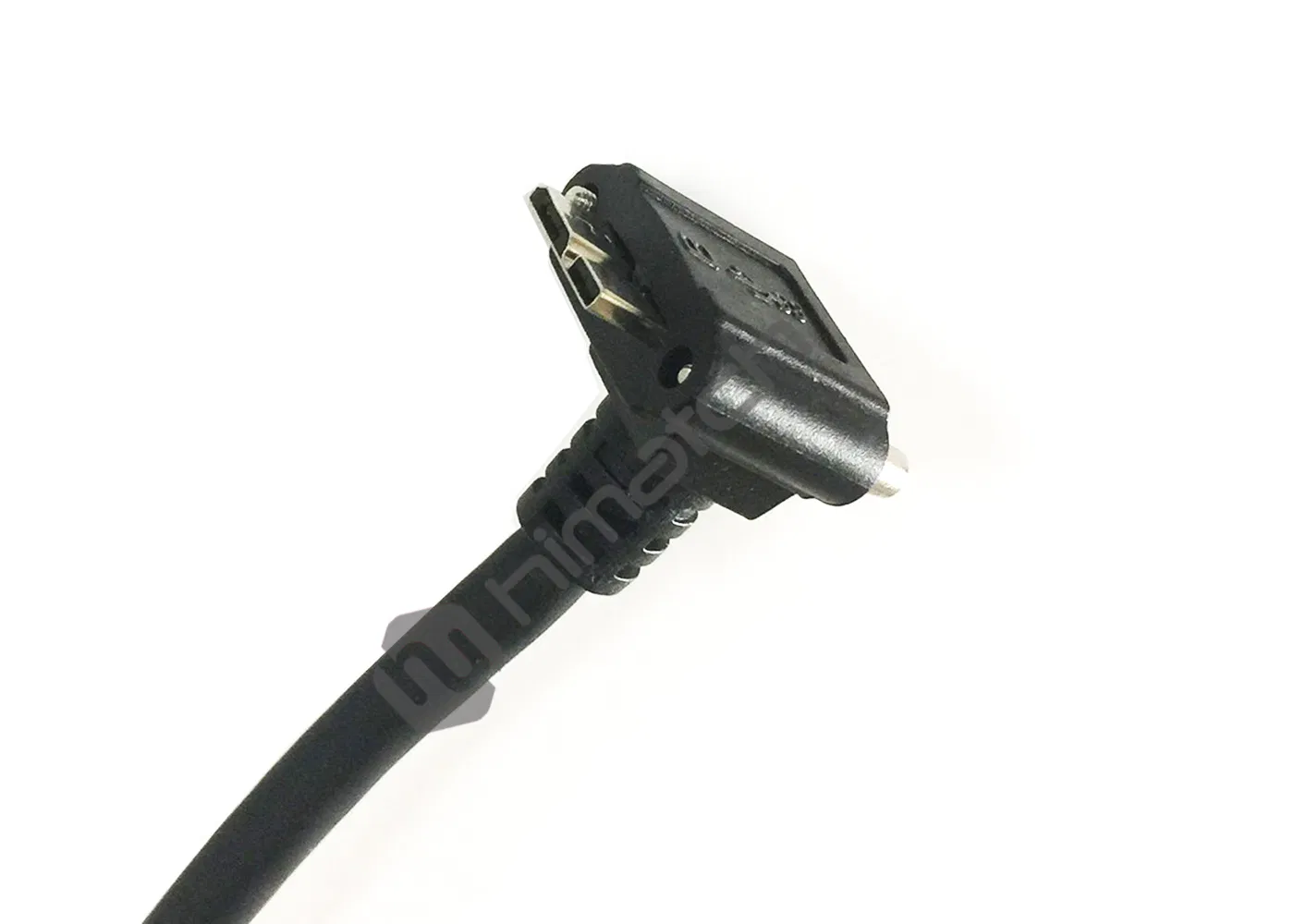

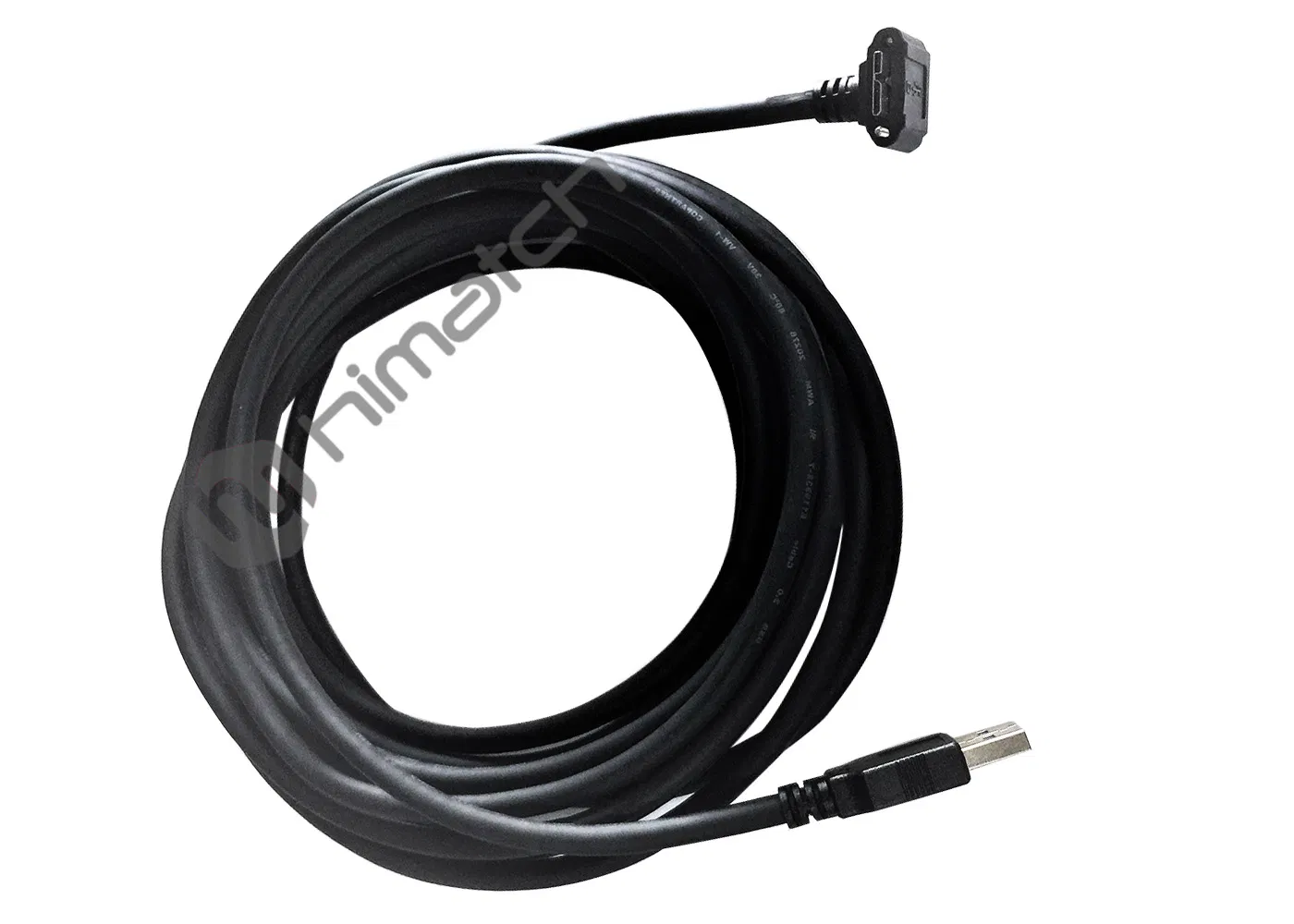

5 Meters 90 Degree Down Angled USB3.0 Micro B With Screws To USB 3.0 A Cable
Description:
Himatch's USB3.0 vision camera link cables are built of plenum rated USB 3.0 shielding cable with USB 3.0 A plug and Micro B plug, Angle right/ Angle left type , robust molding with thumbscrew locking , They offer outstanding quality, high performance for industrial USB3 camera.
1) completely backward compatible with USB 2.0/1.1/1.0.
2) USB 3.0 cable provided Data transfer rate up to 5Gbps
3) USB 3.0 adopts low voltage differential to transfer date
4) Uploads and downloads are kept on separate data lanes
5) USB 3.0 will be more power efficient, charge more devices
6)0.5-5 m length can be selected, max length is 10meters with Booster
Specification:
| Brand | Himatch | Model No. | See Code | Conductor: | Tinned copper |
| Cable: | 9 cores | Wire: | 28AWG | Insulation: | FMPE/HDPE |
| Jacket: | PVC | Cable OD: | 6.1mm | Color: | Black/Yellow |
| Cable shape | Round | Using for | CCD Camera | UL Verified: | Yes |
| Voltage: | 80V | Bending: | 5-10 Millions | OEM/ODM: | Available |
Features
To provide up to 5 GBP/s super fast data transfer rate ;
Elastic PVC jacket: flexible, not easy to break, durable ;
Overlapping injection, not easy broken, durable, ensure error-free data transmission ;
Lining block: helps to reduce the signal interference, guarantee and 100% compatible with the current USB
Life time: bending cycles 5 millions ~ 10 millions
RoHS and REACH compliant

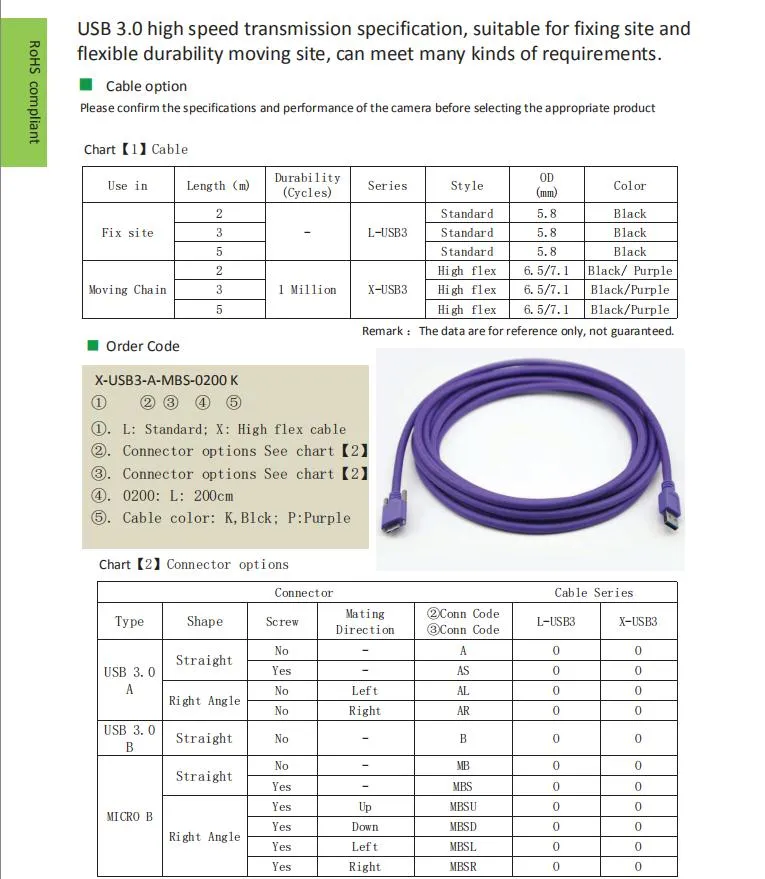

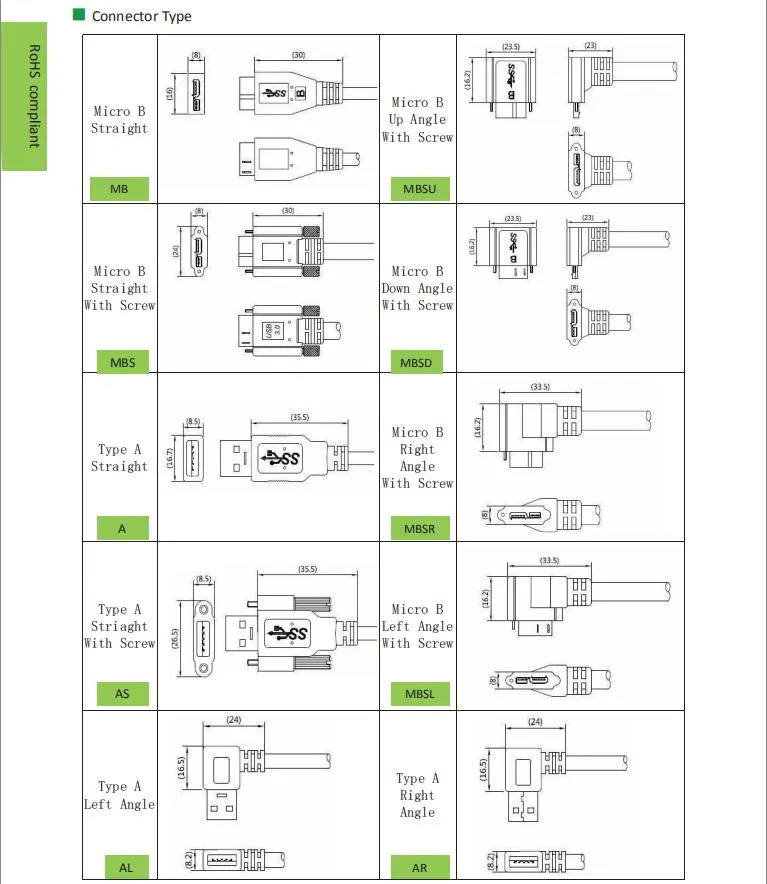

Customized Connection Type:
Type A male Straight to Micro B Straight
Type A male Straight to Micro B Up Angle
Type A male Straight to Micro B Down Angle
Type A male Straight to Micro B Right Angle
Type A male Straight to Micro B Left Angle
Type A male Up Angle to Micro B Straight
Type A male Up Angle to Micro B Up Angle
Type A male Up Angle to Micro B Down Angle
Type A male Up Angle to Micro B Right Angle
Type A male Up Angle to Micro B Left Angle
Type A male Down Angle to Micro B Straight
Type A male Down Angle to Micro B Up Angle
Type A male Down Angle to Micro B Down Angle
Type A male Down Angle to Micro B Right Angle
Type A male Down Angle to Micro B Left Angle
Type A male Right Angle to Micro B Straight
Type A male Right Angle to Micro B Up Angle
Type A male Right Angle to Micro B Down Angle
Type A male Right Angle to Micro B Right Angle
Type A male Right Angle to Micro B Left Angle
Type A male Left Angle to Micro B Straight
Type A male Left Angle to Micro B Up Angle
Type A male Left Angle to Micro B Down Angle
Type A male Left Angle to Micro B Right Angle
Type A male Left Angle to Micro B Left Angle
Customized Cable Length: 0.5-10m
Application
- machine vision
- medical imaging
- aerospace
- Industrial Control
- Factory Automation
- Digital Camera Cables are primarily used in machine vision applications for the connection
- Use in other LVDS signaling applications is also possible.
Customized Cable Length: 0.5 - 10m
1.2m, 1.5m, 2m, 3m, 5m
6-10m with Booster
