3m High Speed 5g USB3.0 Vision a Male to Micro B with Thumbscrews Locking
High Speed 5G USB3.0 Vision Cable 6.0mm OD 3 Meters Micro B With Thumbscrews Locking Description:USB 3.0 camera link is a machine vision standard specification using the USB 3.0 interface. It is a world standard specification set up by three standardization bodies, AIA-EMVANJIIA. Now many PC standar......
Send Inquiry
Product Description
High Speed 5G USB3.0 Vision Cable 6.0mm OD 3 Meters Micro B With Thumbscrews Locking
Description:
USB 3.0 camera link is a machine vision standard specification using the USB 3.0 interface. It is a world standard specification set up by three standardization bodies, AIA-EMVANJIIA. Now many PC standard USB3.0 interface, it will become the standard camera interface in the future.

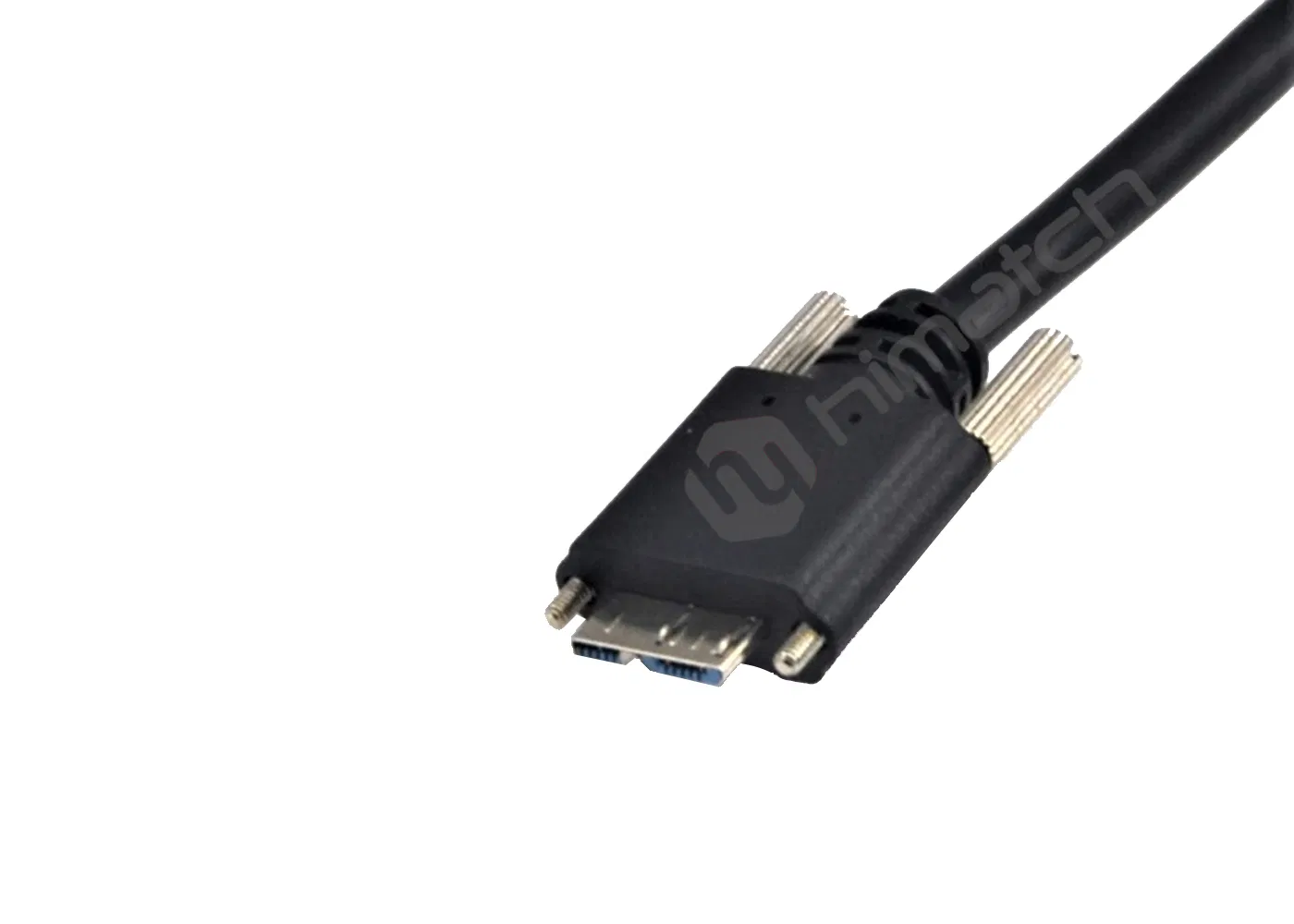

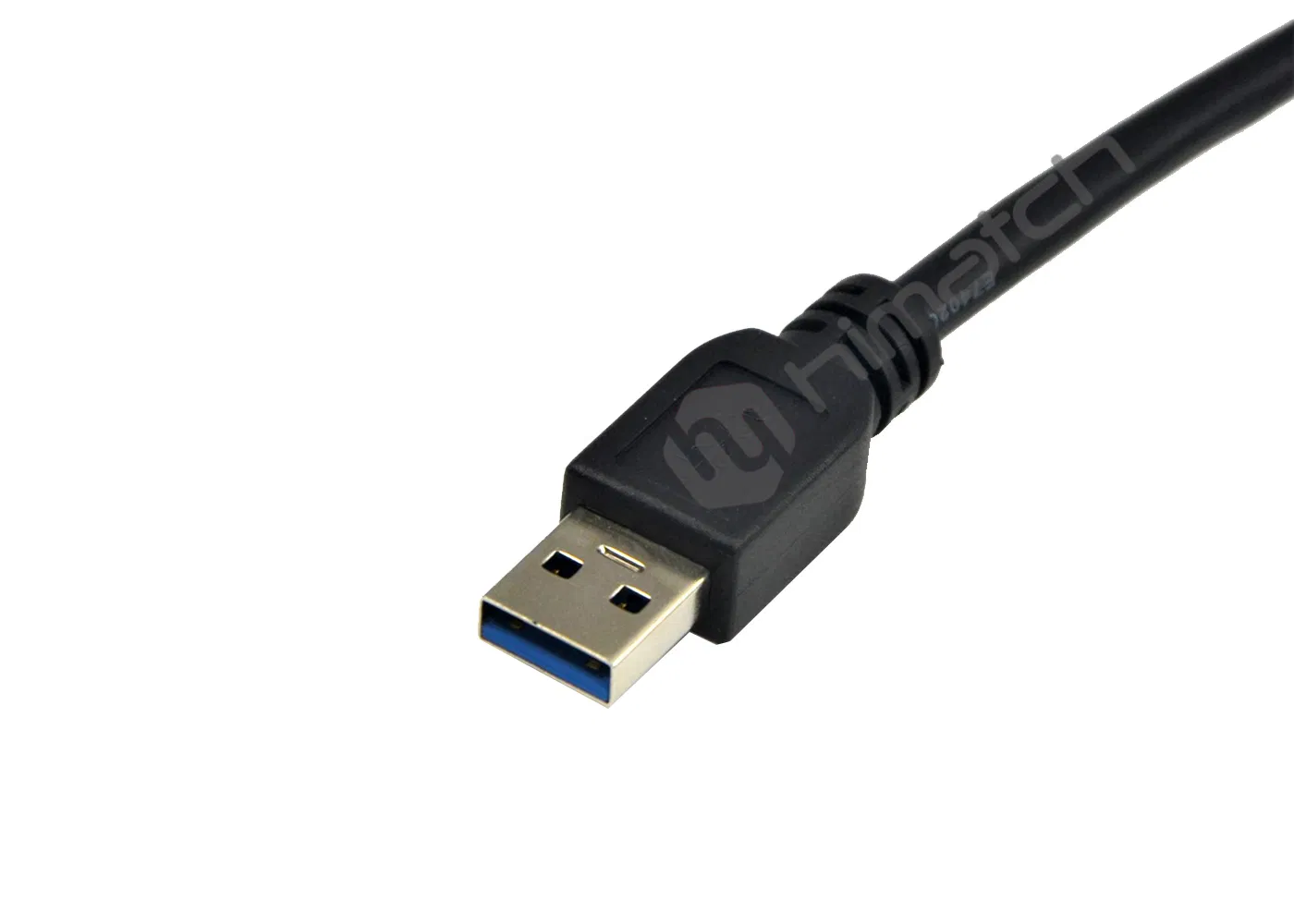

USB3.0 vision camera link cables are built of plenum rated USB 3.0 shielding cable with USB 3.0 A plug and Micro B plug, Angle right/left type, robust molding with or without thumbscrew locking , They offer outstanding quality, high performance for industrial USB3.0 camera.
Customized Cable Length: 0.3 - 10m (5-10m with Booster)

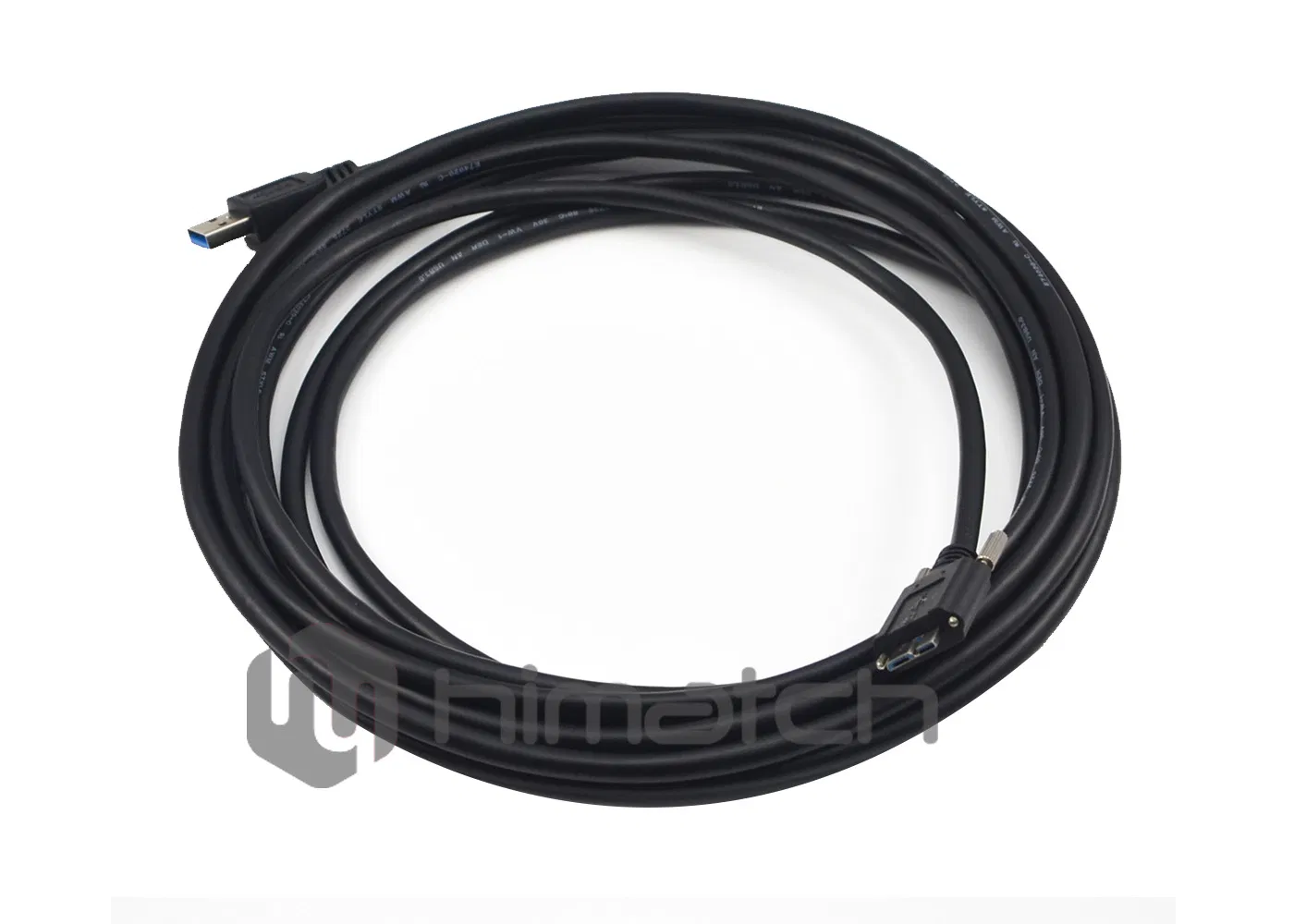

Standard cable in black color:

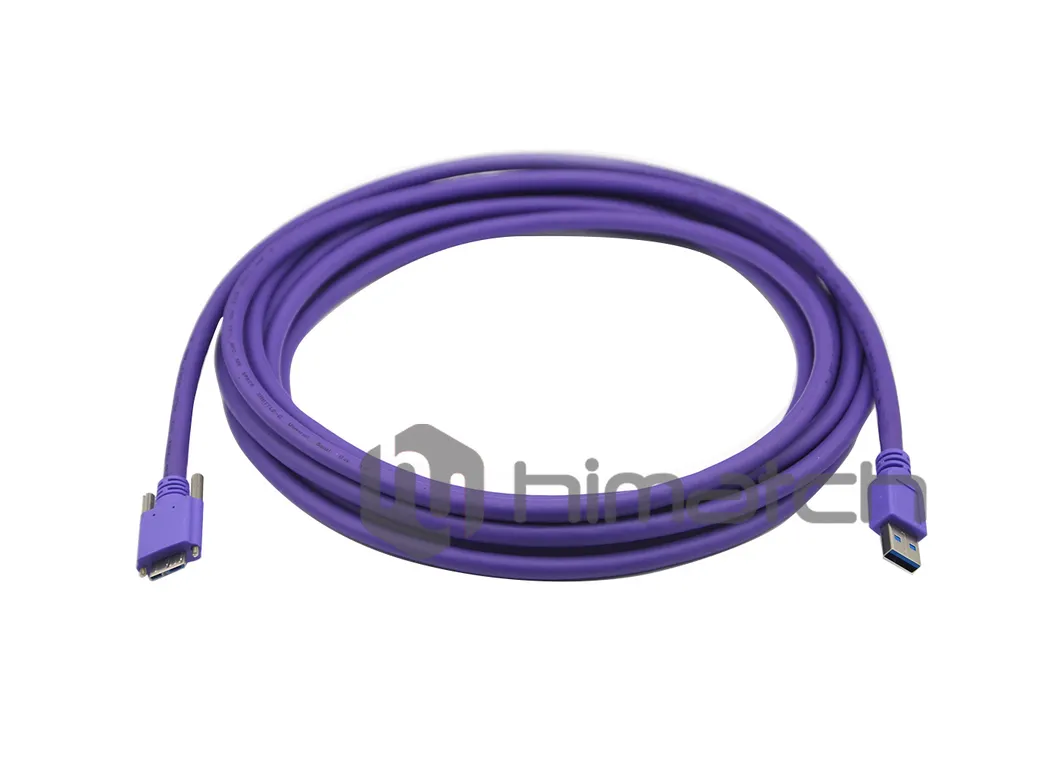

High flex cable in purple color:
Specially for moving system,drag chain system automation equipment, AOI, motion detection, motion control and high-end communication equipment etc...
Specification:
| Brand | Himatch | Model No. | See Code | Conductor: | Tinned copper |
| Cable: | 9 cores | Wire: | 28AWG | Insulation: | FMPE/HDPE |
| Jacket: | PVC | Cable OD: | 6.0mm,7.1 | Color: | Black |
| Cable shape | Round | Using for | CCD Camera | UL Verified: | Yes |
| Voltage: | 80V | Bending: | 10 Millions | OEM/ODM: | Available |
| Use in | Length(m) | Durability (Cycles) | Series | Style | OD (mm) | Color |
| Fix site | 2 | - | L-USB3 | Standard | 6.0 | Black |
| 3 | Standard | 6.0 | Black | |||
| 5 | Standard | 6.0 | Black | |||
| Moving Chain | 2 | 1 Million | X-USB3 | High flex | 6.0/7.1 | Black/ Purple |
| 3 | High flex | 6.0/7.1 | Black/Purple | |||
| 5 | High flex | 6./7.1 | Black/Purple |
Raw cable
| Style | Standard cable | High Flex cable | |
| Cable | UL | UL758 Style:20276 | |
| Temperature | 80°C | ||
| Voltage | 30V | ||
| Jacket Material | Oil Resistance PVC | ||
| Color | Black | Black/Purple | |
| OD | 6.0mm | 6.0mm /7.1mm | |
| Flamability | VW-1 | ||
| Finished Product | Conn Option | A / Micro B | A / Micro B |
| Conn Color | Black | Black/Purple | |
Features
UL certified high quality USB 3.0 connector right angle type
100% electronically tested for functionality
Low noise and good performance in skew
Overall foil and braid shielded provides EMI/RFI protection
OEM/ODM are available
RoHS and REACH compliant

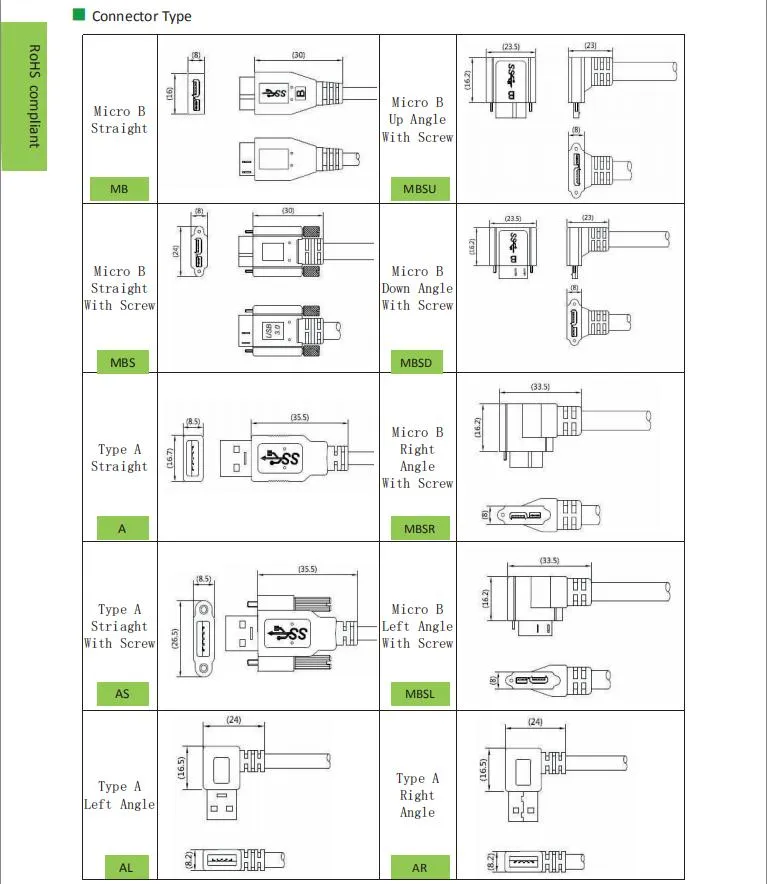

Customized Connection Type:
Type A male Straight to Micro B Straight
Type A male Straight to Micro B Up Angle
Type A male Straight to Micro B Down Angle
Type A male Straight to Micro B Right Angle
Type A male Straight to Micro B Left Angle
Type A male Up Angle to Micro B Straight
Type A male Up Angle to Micro B Up Angle
Type A male Up Angle to Micro B Down Angle
Type A male Up Angle to Micro B Right Angle
Type A male Up Angle to Micro B Left Angle
Type A male Down Angle to Micro B Straight
Type A male Down Angle to Micro B Up Angle
Type A male Down Angle to Micro B Down Angle
Type A male Down Angle to Micro B Right Angle
Type A male Down Angle to Micro B Left Angle
Type A male Right Angle to Micro B Straight
Type A male Right Angle to Micro B Up Angle
Type A male Right Angle to Micro B Down Angle
Type A male Right Angle to Micro B Right Angle
Type A male Right Angle to Micro B Left Angle
Type A male Left Angle to Micro B Straight
Type A male Left Angle to Micro B Up Angle
Type A male Left Angle to Micro B Down Angle
Type A male Left Angle to Micro B Right Angle
Type A male Left Angle to Micro B Left Angle
Application
frame grabber
Industrial CCD scaner
Industrial vision inspection system
Machine vision connection
Camera, Computer, Video Game Player
